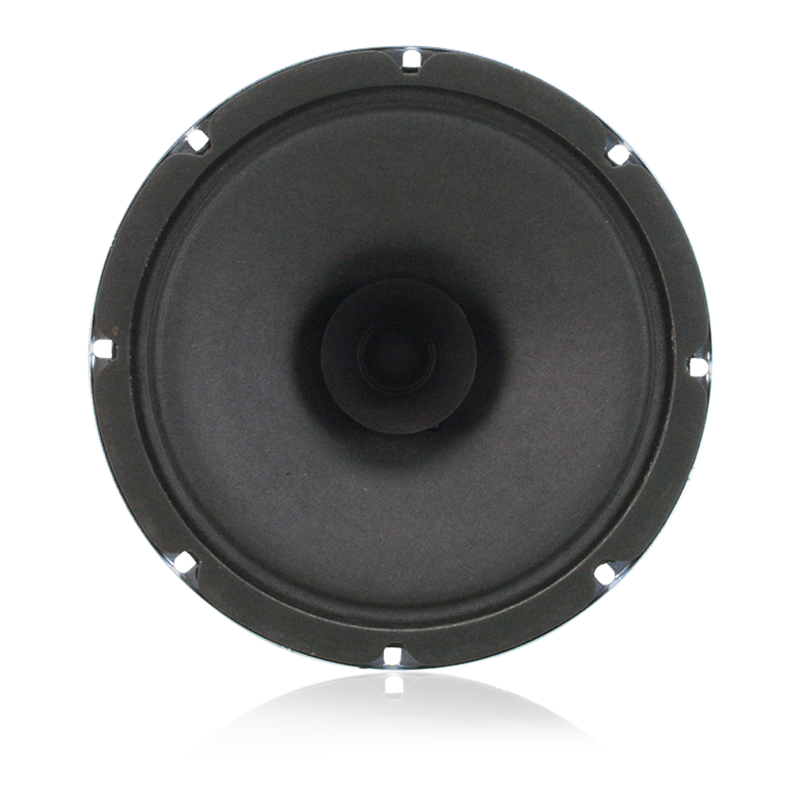

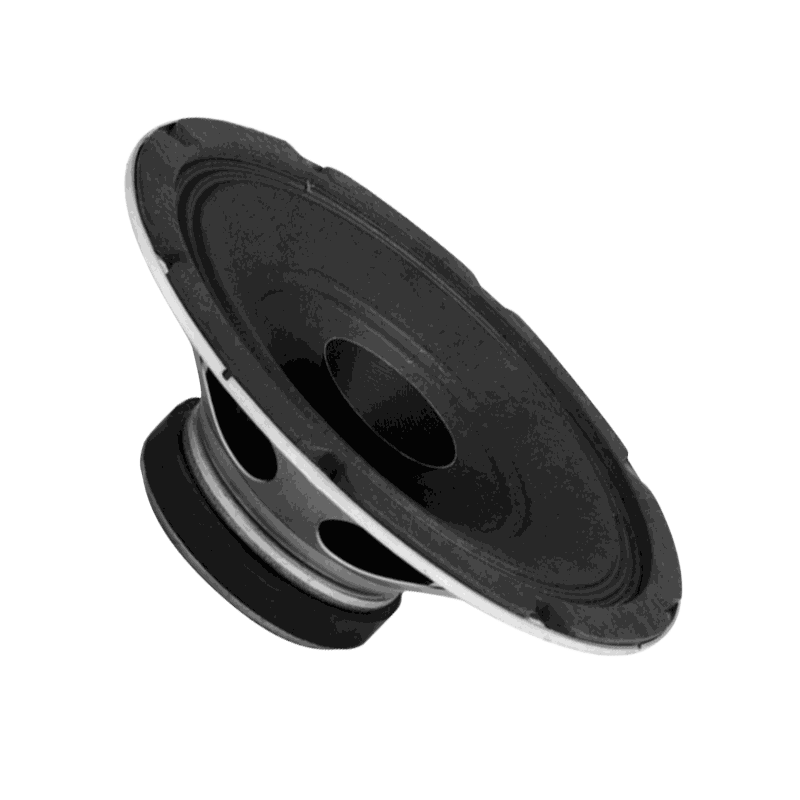

AtlasIED C10AT72 8" Dual Cone In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 10oz Magnet
The AtlasIED C10AT72 is an 8" dual cone in-ceiling speaker with 4-watt 25V/70V transformer and 10oz magnet. Model C10AT72 is a dual cone, 25-watt 8" (205mm) speaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 25/70.7V 4W transformer. It runs a treated paper driver over 100Hz - 10kHz.
It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. AtlasIED lists acoustically proven, general purpose 25-watt loudspeaker; ideal for multi-purpose commercial, industrial and institutional use; includes LT-72 factory-installed line-matching transformer; mounts a wide selection of Atlas sound baffles. It measures 2 7/8" deep and 8" in diameter. It ships at 3.00 lbs, is safety listed to UL 1480, and carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | C10AT72 |
|---|---|
| Speaker Type | Treated Paper |
| Sensitivity | 97dB Peak, 94dB Average |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .25, .5, 1, 2, & 4 Watts |
| Dispersion | 105° |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 3.00 lbs (1.36 kgs) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
