Yamaha Rio/Tio Series Dante I/O Rack

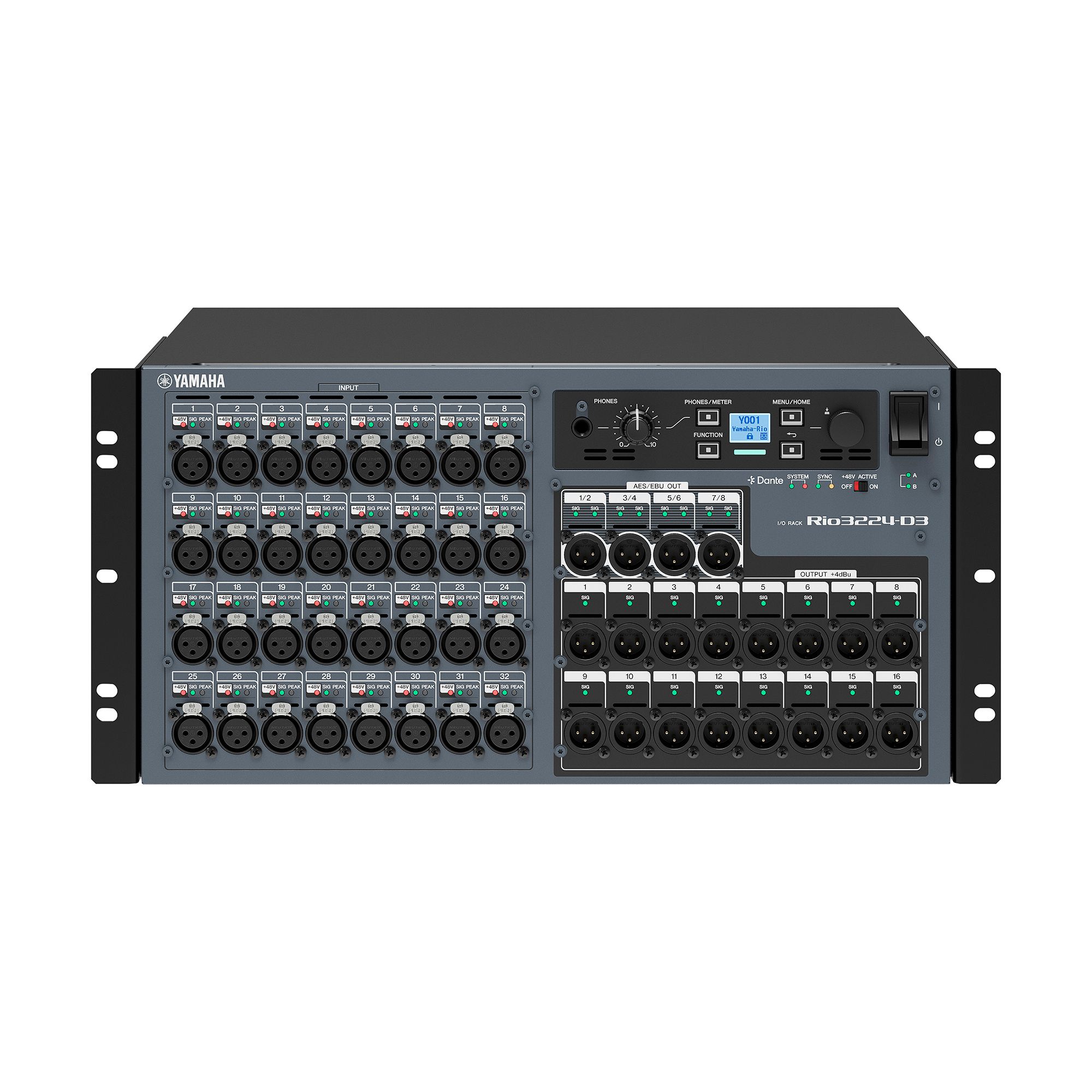

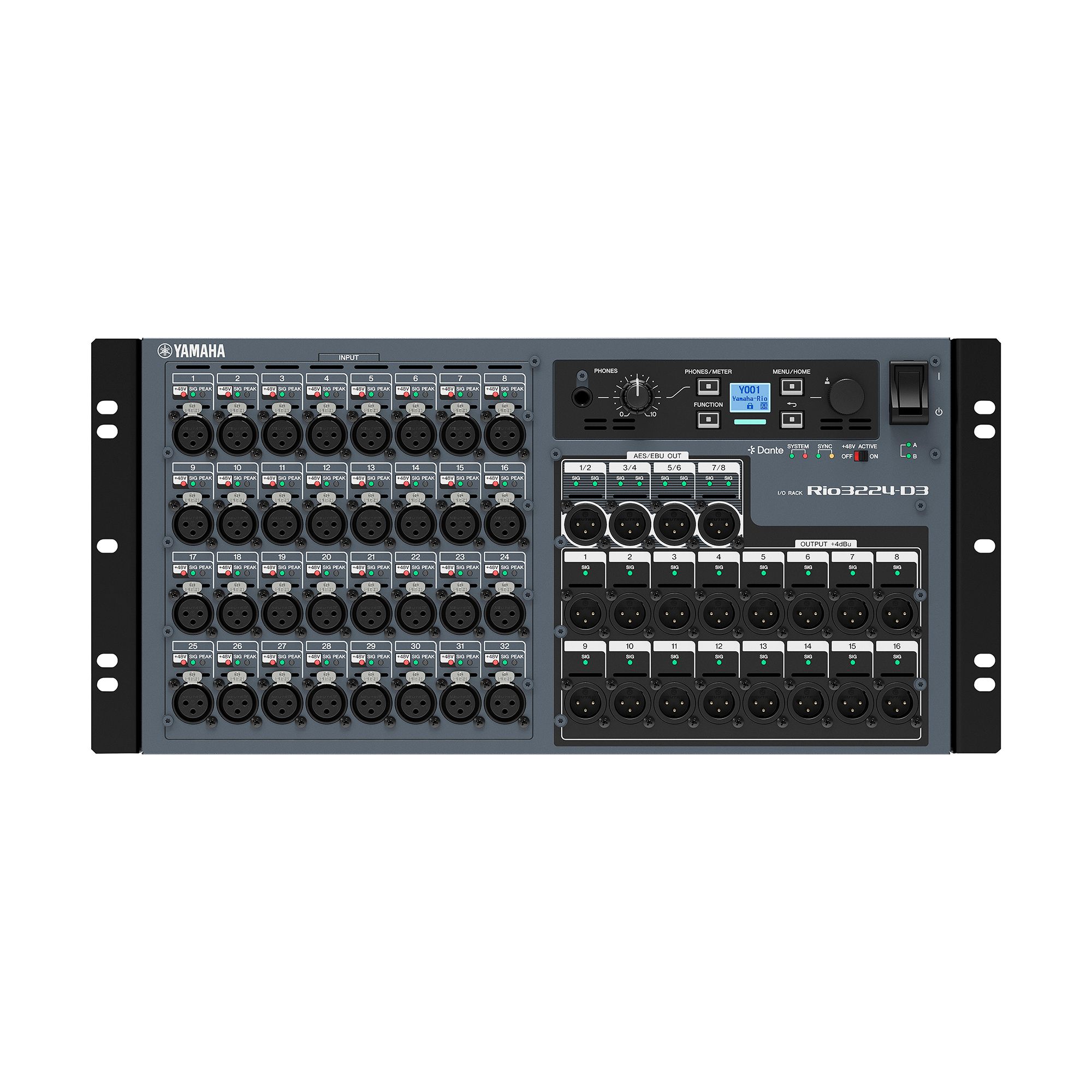

The Rio and Tio series are Dante-networked I/O racks that move mic preamps to the stage or source and send the whole show back to the console over a single network cable instead of a multicore snake. The Rio3224-D3 and Rio1608-D3 are the third-generation premium racks for CL, QL, TF, and Rivage PM series consoles, with recallable D-PRE preamps, a headphone monitor jack, output delay, and phase controls, at 32-in/16-out and 16-in/8-out sizes respectively.

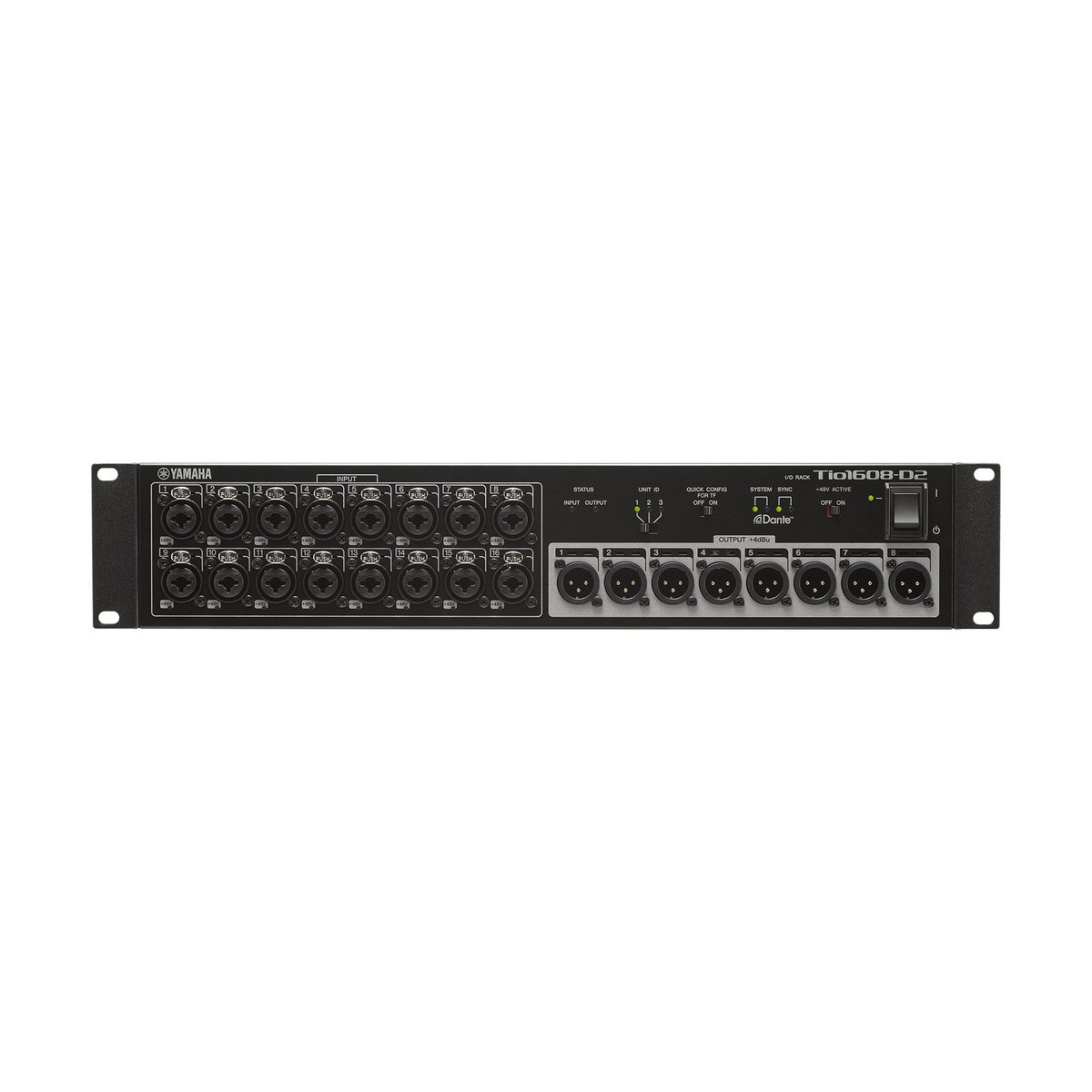

The Tio1608-D2 is the matching 2U rack for the DM3 and TF series, with 16 combo mic/line inputs and 8 XLR outputs, front-panel Quick Config switches that let a DM3 or TF console find and configure it automatically over an Ethernet cable, and the same D-PRE preamps used in the TF series consoles for a consistent sound between stage and console.
