Wooden Camera Zip Box Pro 4x5.65 (Swing Away)

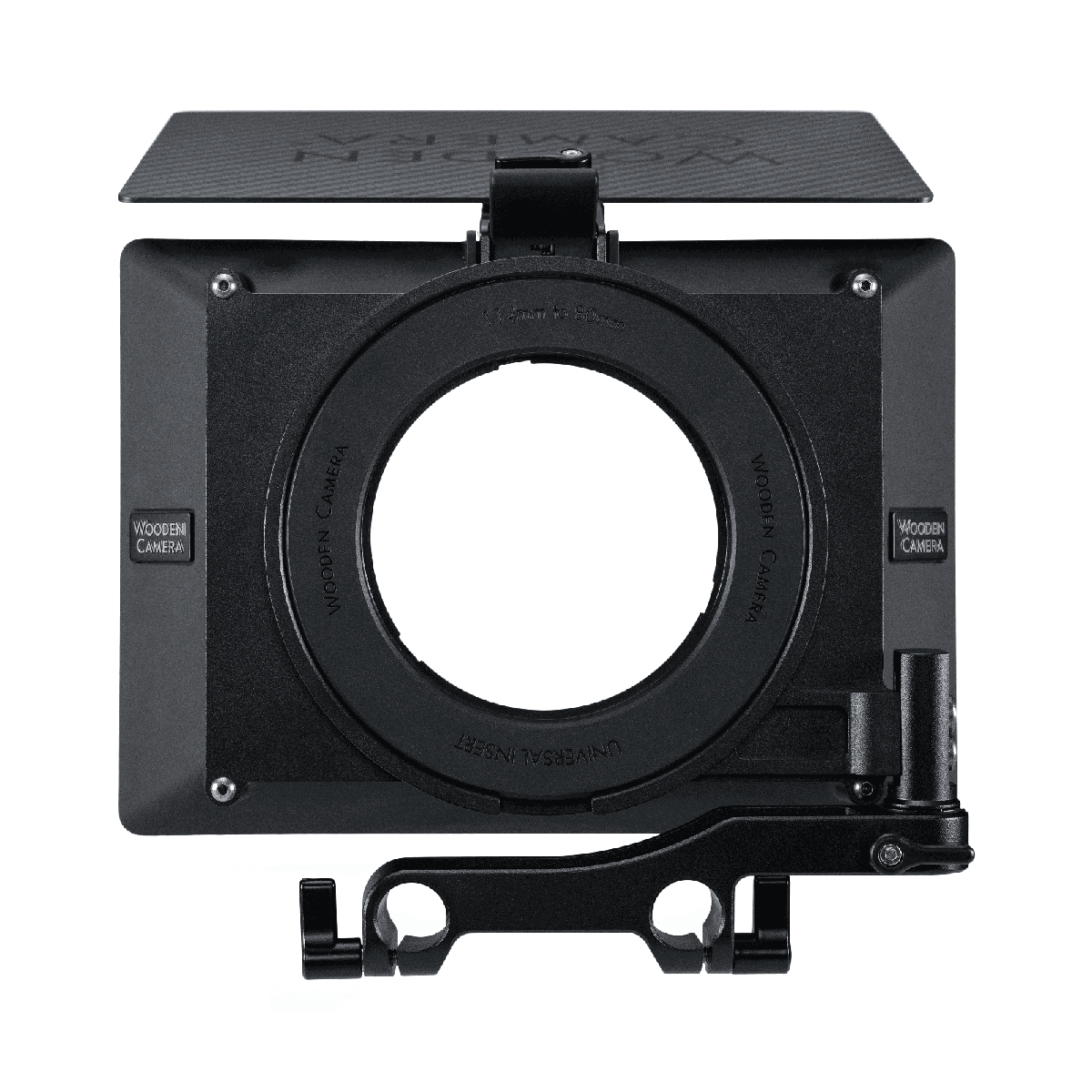

The Zip Box Pro Swing Away attaches to 15mm lightweight rods (adaptable to studio rods with an LW 15mm Adapter V2), holds three 4x5.65 filters loaded from the front and secured by a spring-loaded latch, and swings clear of the lens for fast changes. A folding carbon-fiber top flag covers the front of the box for protection during packing.

The swing-away bracket tilts by loosening two side screws, which also allow 4mm of vertical adjustment up or down from lens center. The 114mm rear opening ships with snap-in reduction rings for 110, 104, 95, 87, and 80mm lenses plus a universal cloth donut for non-standard diameters or lenses with a moving front element; the same body converts to a clamp-on back if that configuration is preferred.

Lens Diameter Range80-114mm (via included reduction rings)
Filter Stages3x 4x5.65, front-loading with spring latch
Weight467.2 g (1.03 lb)
Dimensions228.6 x 76.2 x 203.2 mm (9 x 3 x 8 in)
Rod Mount15mm LW native; studio-rod adaptable
AdjustmentTilt + 4mm vertical via swing-away bracket

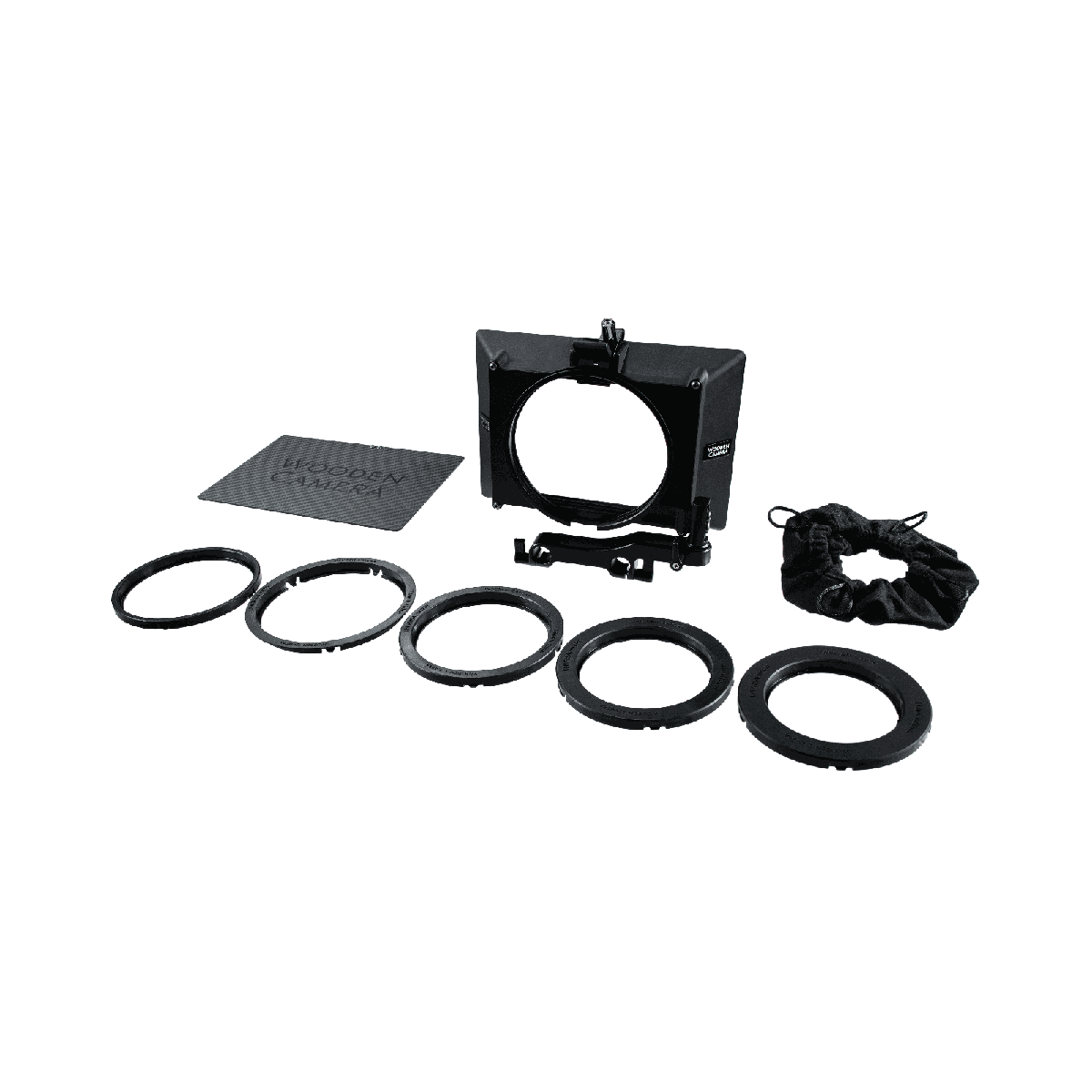

IncludedTop flag, cloth donut, swing-away reduction ring set
