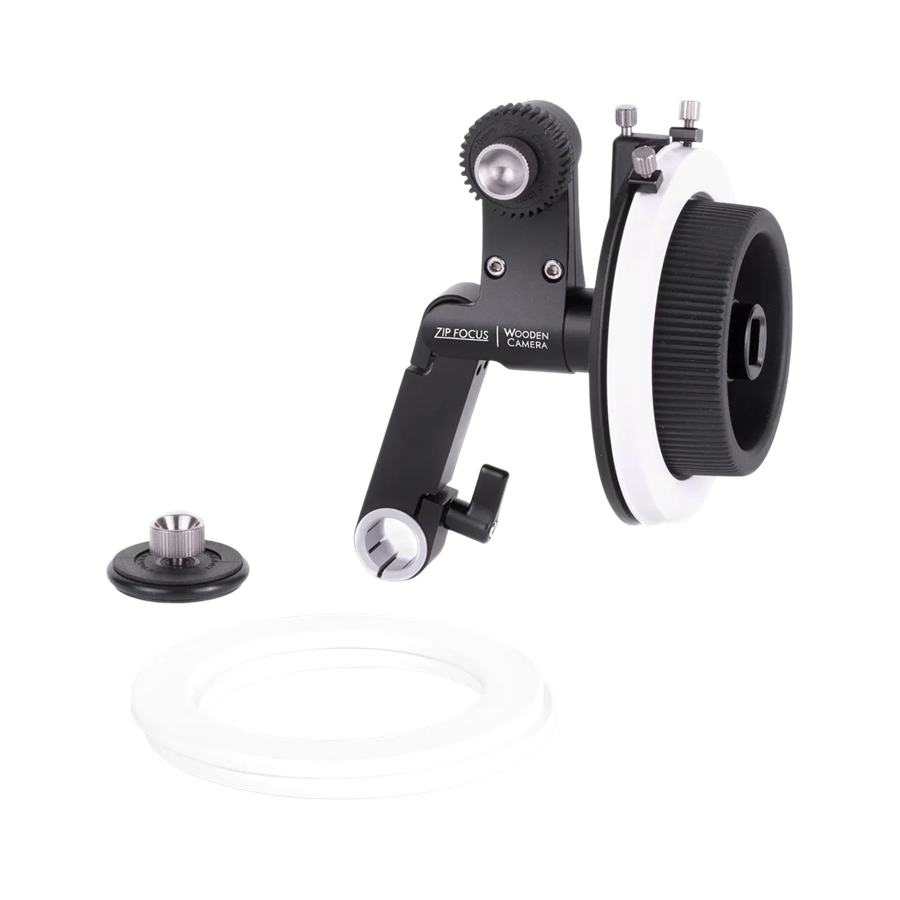

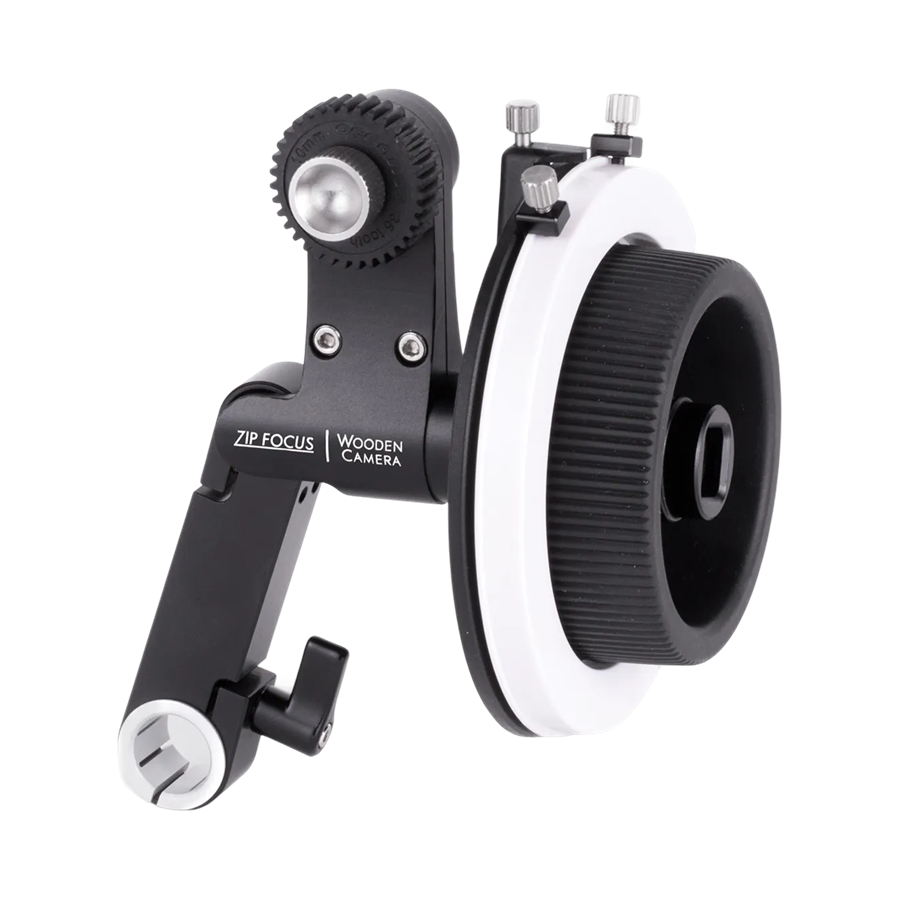

Wooden Camera Zip Focus (19mm/15mm Studio Follow Focus)
This Zip Focus mounts natively to a 19mm rod and, with the included snap-in adapter bushing, to a 15mm Studio rod as well - a 1:1 gear ratio and pivoting design fit any lens in a minimal footprint. The 0.8 mod cine gear and friction gear both flip front or back for compact lens layouts.
A hard-stop disc handles DSLR lenses with infinite focus rotation, and two standard marking discs cover cine primes. The gearing runs in the standard rotation direction only, so it's not built for reverse-rotation lenses like some Nikon primes.
| Rod Compatibility | 19mm native; 15mm Studio via included bushing |
|---|---|
| Gear Ratio | 1:1 |
| Weight | 368 g (0.81 lb) |
| Dimensions | 101.6 x 88.9 x 139.7 mm (4 x 3.5 x 5.5 in) |
| Included | Hard-stop disc, 2x marking discs, friction gear, 0.8 mod 35-tooth gear, 15mm adapter bushing |
| Rotation | Standard direction only, not reversible |
| Also Available | Zip Focus (15mm LW Follow Focus) |
