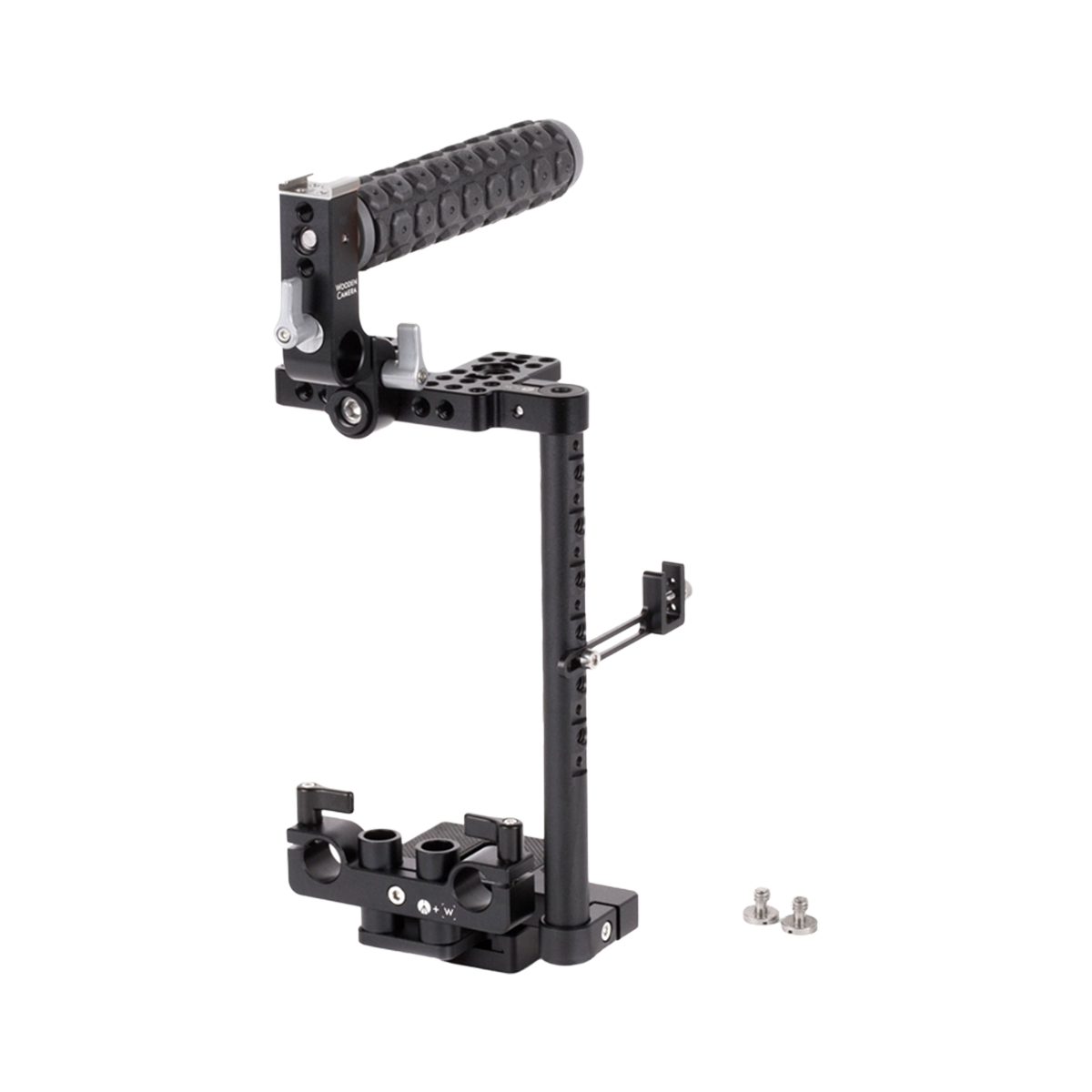

Wooden Camera Unified DSLR Cage (Large)

Sized for larger DSLR bodies - Canon 1DC, 1DX, 1DX Mark II, 1D Mark III/IV, Nikon D4, D3X, D800 and comparable cameras with a battery grip installed - this quick-release cage leaves the shoe mount open for hot-shoe accessories and keeps every control on the grip and left side visible. The folding, reversible top handle carries a cold shoe and a 15mm tube clamp for a UVF electronic viewfinder mount, and can be repositioned over the lens for an XLR audio adapter or refitted onto the left vertical rod as a second grip.

A height-adjustable 15mm lightweight rod clamp sets rods at the correct distance from the lens for standard matte boxes and follow focus units, and a Manfrotto quick-release dovetail on the base drops onto compatible tripod heads. An included HDMI clamp on the vertical rod protects the port on cameras with a fold-out LCD.

Camera CompatibilityDSLR bodies 5 in or taller: Canon 1DC/1DX/1DX II/1D III/1D IV/1DX III, Nikon D4/D4s/D3X/D5/D800/D810/D850, plus grip-equipped Sony Alpha/Fujifilm X-H1
Weight590 g (1.3 lb)
Dimensions292.1 x 114.3 x 152.4 mm (11.5 x 4.5 x 6 in)
Rod SupportHeight-adjustable 15mm LW rod clamp, 194mm rod length
BaseManfrotto quick-release dovetail receiver
Top HandleFolding, reversible, with cold shoe + 15mm tube clamp
Mounting Points1/4-20 (9mm spacing) and 3/8-16 with ARRI/Manfrotto locating
