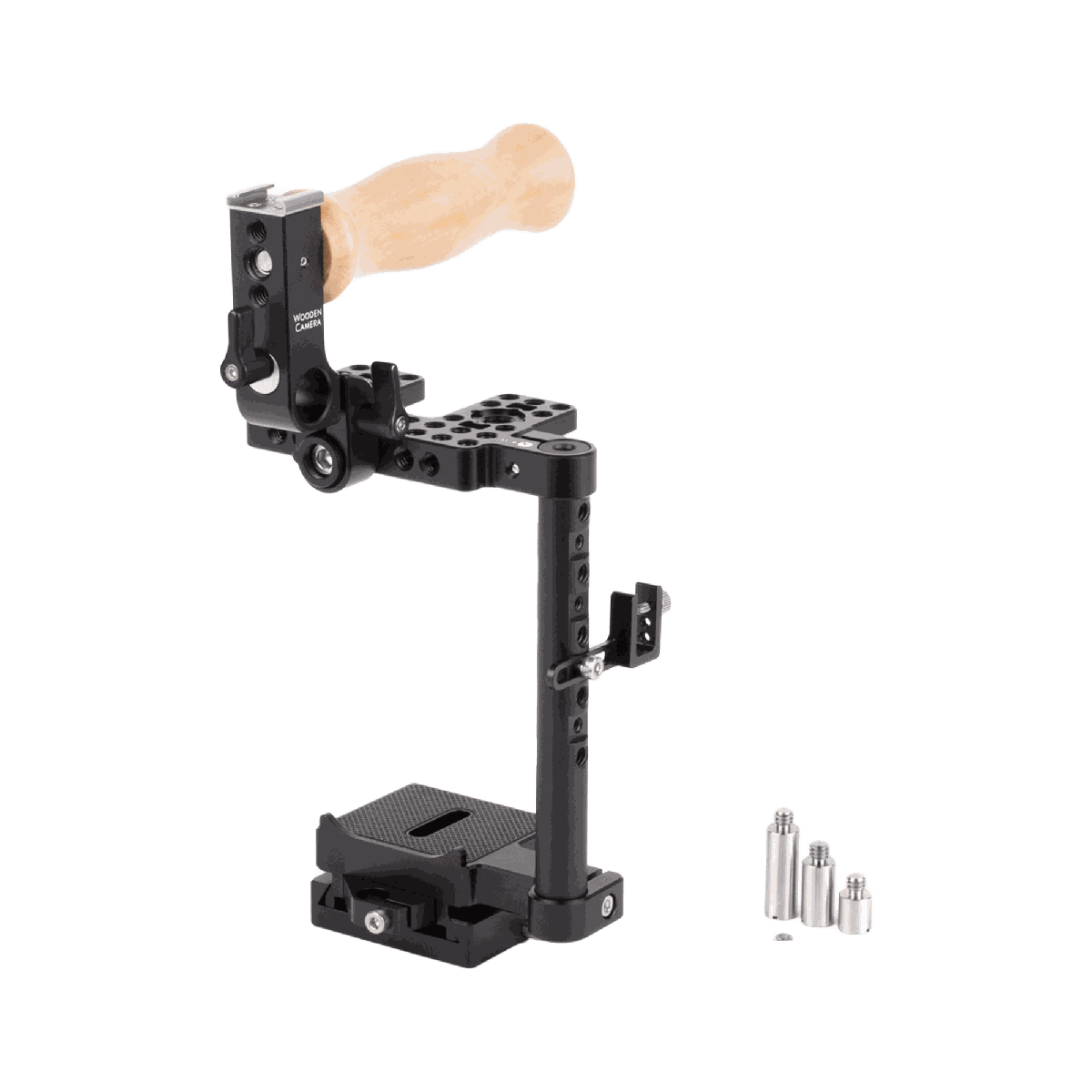

Wooden Camera Unified DSLR Cage (Medium)
Sized for mid-frame DSLR bodies - Canon 5D Mark II/III/IV, 6D, 7D, Panasonic S1/S1H, Nikon D300/D500/D600/D610/D7500, Fujifilm X-T1/X-T2/X-T3/X-H1, Leica SL - this quick-release cage leaves the shoe mount clear for hot-shoe accessories while keeping the grip-side controls visible. The folding, reversible top handle carries a cold shoe and 15mm tube clamp for a UVF viewfinder mount, and folds down or moves to the left vertical rod as a second grip.
The base includes a Manfrotto quick-release dovetail for compatible tripod heads and a built-in lens-adapter support post for adapters with a 1/4-20 foot, such as Wooden Camera's own E-Mount to PL Mount Pro or many Metabones adapters. Pair with the Unified DSLR 15mm Baseplate for pass-through rod support when a matte box or follow focus is needed.
| Camera Compatibility | DSLR bodies 4-5 in tall: Canon 5D II/III/IV, 6D/6D II, 7D/7D II, 70D/77D/80D, Panasonic S1/S1H, Nikon D300/D500/D600/D610/D7500, Fujifilm X-T1/X-T2/X-T3/X-H1, Leica SL |
|---|---|
| Weight | 544 g (1.2 lb) |
| Dimensions | 215.9 x 114.3 x 152.4 mm (9.5 x 4.5 x 6 in) |
| Rod Support | 142mm 15mm-rod length, pairs with Unified DSLR 15mm Baseplate |
| Base | Manfrotto quick-release dovetail receiver |
| Lens Adapter Support | Built-in 1/4-20 post for Metabones-style adapters |
| Top Handle | Folding, reversible, with cold shoe + 15mm tube clamp |
