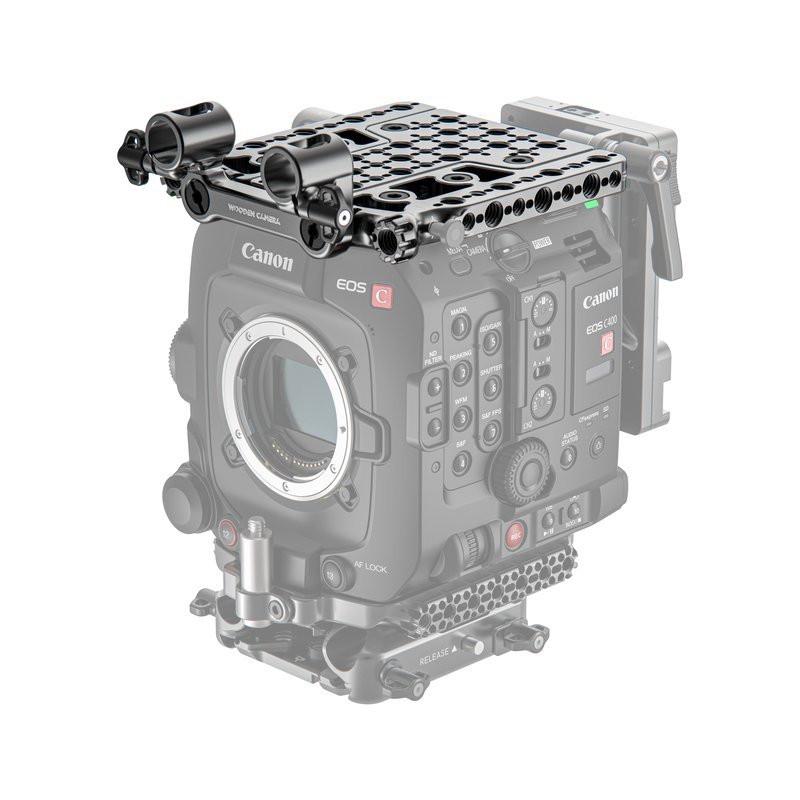

Wooden Camera Top Plate System for Canon EOS C400
The Top Plate System for Canon EOS C400 is a camera support accessory from Wooden Camera. This lightweight, adaptable, and modular, three-piece Top Plate System consists of a Center Plate, two Symmetrical Left/Right Plates, and a Top Plate Dual Rod Clamp - Front for rod-based mounting. The Center Top Plate attaches to the center mounting points on the camera body, allowing you to remove the EOS C400 top handle and add 3/8"-16 and 1/4"-20 mounting points for other accessories or handles like the Ultra Handle 5" Kit. The Symmetrical Left/Right Top Plates can be flipped and used on either side as additional mounting platforms for accessories like Teradek Bolt or the NATO Side Rail for EOS C400.
It weighs 284.9 g (0.6 lbs). It mounts via 1/4"-20, 3/8"-16, NATO rail.
| Type | Camera Support |
|---|---|
| Camera Compatibility | Canon |
| Weight | 284.9 g (0.6 lbs) |
| Dimensions | 121.5 x 169.4 x 19.2 mm (4.8 x 6.7 x 0.75 in) |
| Mounting / Interface | 1/4"-20, 3/8"-16, NATO rail |
| Manufacturer Part Number | A00769 |
