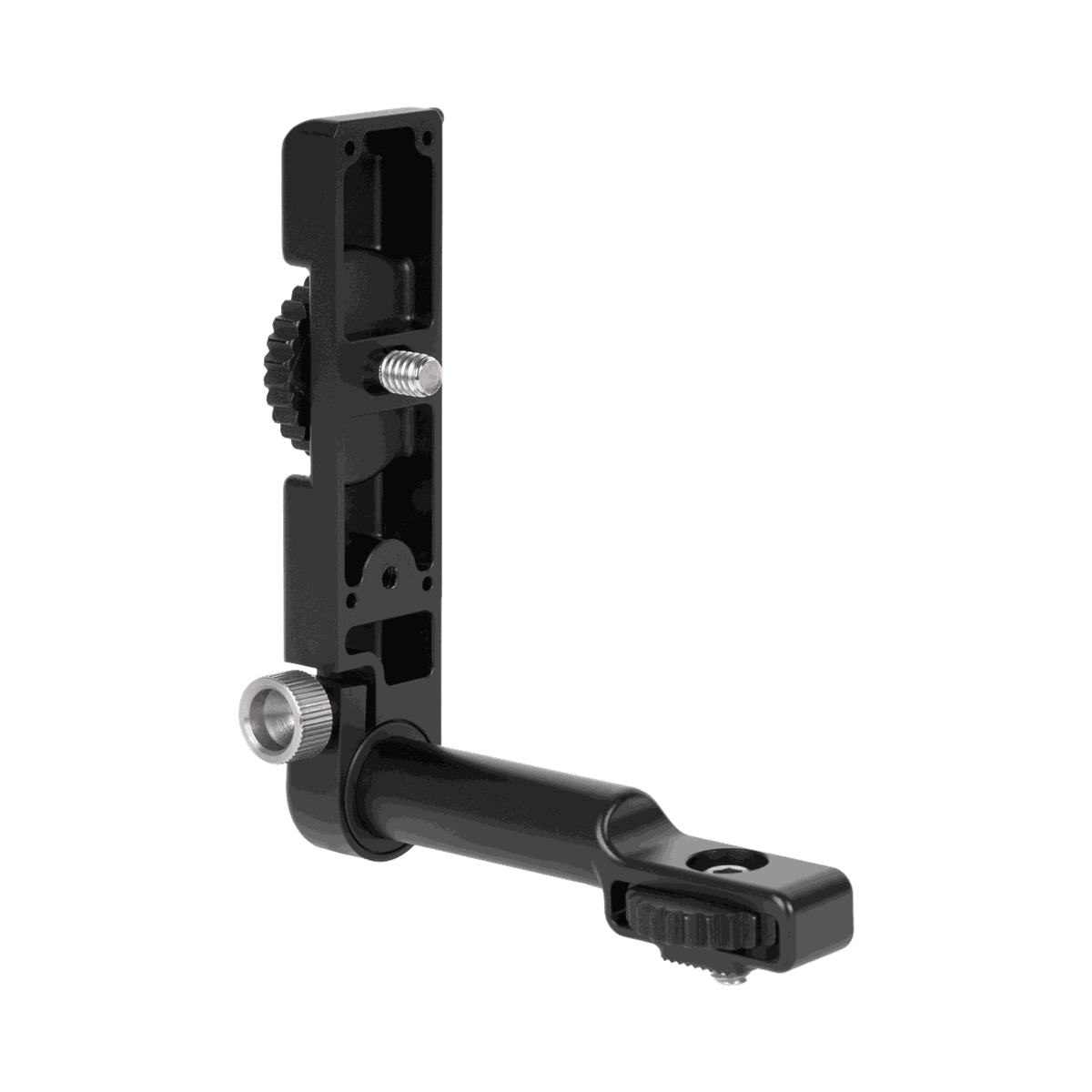

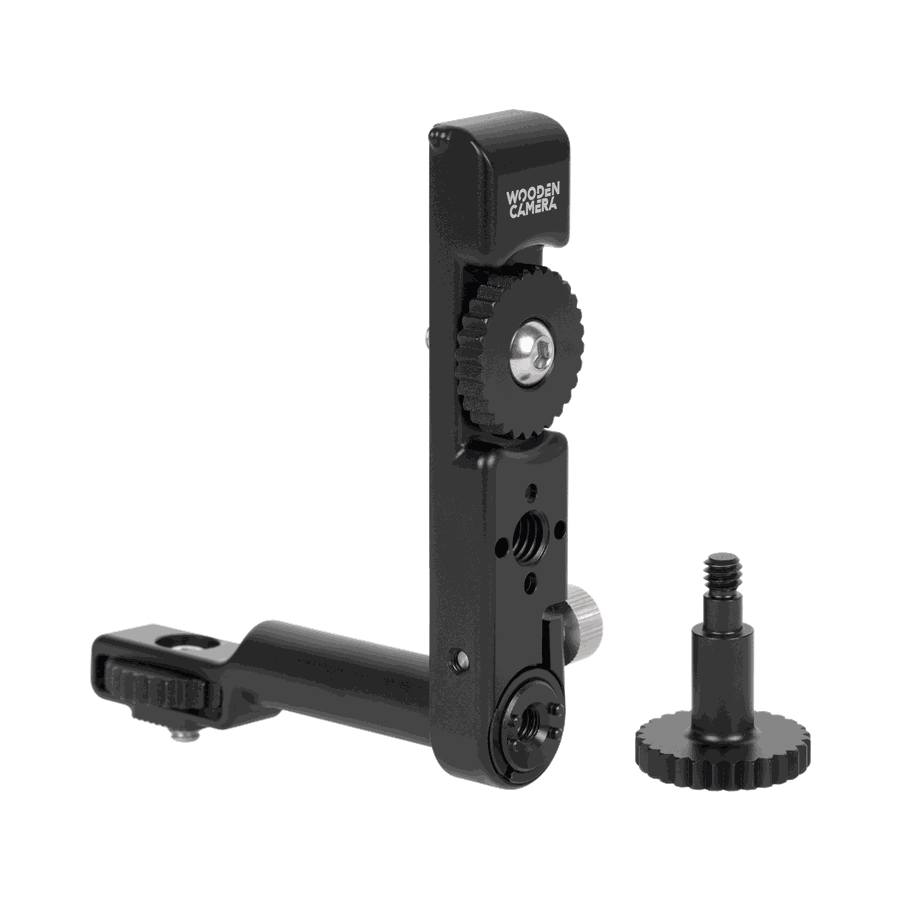

Wooden Camera Mini Monitor Hinge for Canon C400/C300 Mark III/C500 Mark II

This hinge attaches the Canon LCD to the camera body or top handle via a captured 1/4-20 screw, with a grooved mounting surface for extra support. A 3/8-16 threaded hole on the monitor arm takes additional accessories.

The end of the hinge rod is threaded for the Canon microphone mount, secured with the included microphone screw. Note that on the C400, the handle's position leaves the microphone mount angled slightly downward.

Camera Compatibility	Canon EOS C400, C300 Mark III, C500 Mark II
Mounting	Captured 1/4-20 screw, grooved surface
Accessory Mount	3/8-16 threaded hole on monitor arm
Weight	82 g (0.19 lb)
Dimensions	95.25 x 107.95 x 31.75 mm (3.75 x 4.25 x 1.25 in)
Microphone Mount	Threaded rod end, includes microphone screw
Included	Microphone screw, rubber retaining O-ring
