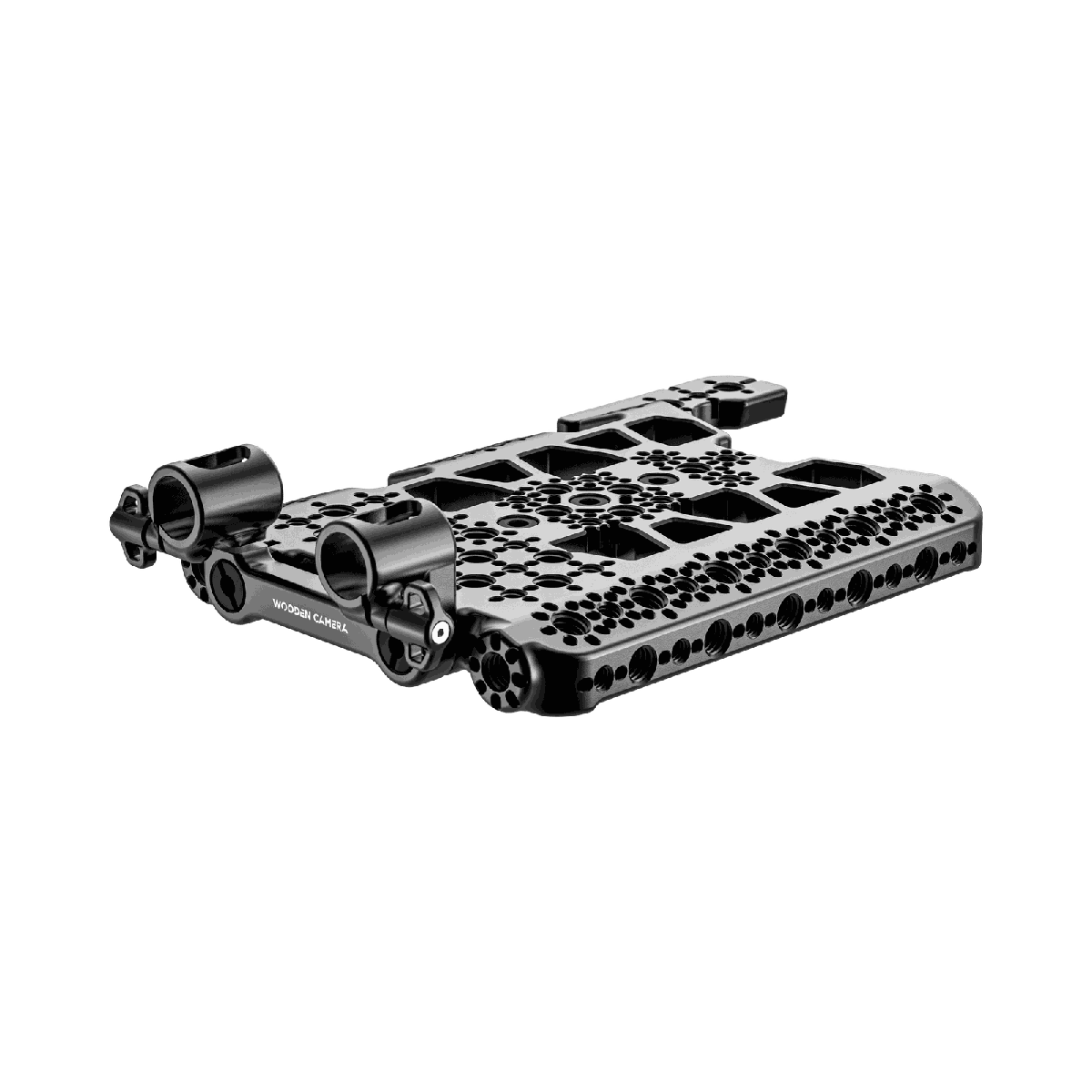

Wooden Camera Top Plate System for Blackmagic URSA Cine 12K/17K
The Top Plate System for Blackmagic URSA Cine 12K/17K is a camera support accessory from Wooden Camera. It includes the Top Plate, Front Dual Rod Clamp, and Top Plate Extension Block. This system securely mounts to the top of the camera using three 1/4"-20 screws down the center of the camera and adds multiple 1/4"-20 and 3/8"-16 mounting points across the top and sides of the plate. With the front-facing 3/8"-16 mounting points, users can add the included Front Dual Rod Clamp to secure 15mm rods for accessories like EVFs or lens motors.
It weighs 675.9 g (1.49 lbs). It mounts via 1/4"-20, 3/8"-16, 15mm rod. In the box: Top Plate Extension Block for Blackmagic URSA Cine 12K/17K; Top Plate for Blackmagic URSA Cine 12K/17K; Top Plate Dual Rod Clamp - Front.
| Type | Camera Support |
|---|---|
| Camera Compatibility | Blackmagic |
| Weight | 675.9 g (1.49 lbs) |
| Dimensions | 107 x 65 x 144 mm (4.21 x 2.56 x 5.67 in) |
| Mounting / Interface | 1/4"-20, 3/8"-16, 15mm rod |
| Included | Top Plate Extension Block for Blackmagic URSA Cine 12K/17K; Top Plate for Blackmagic URSA Cine 12K/17K; Top Plate Dual Rod Clamp - Front |
| Manufacturer Part Number | K10038 |
