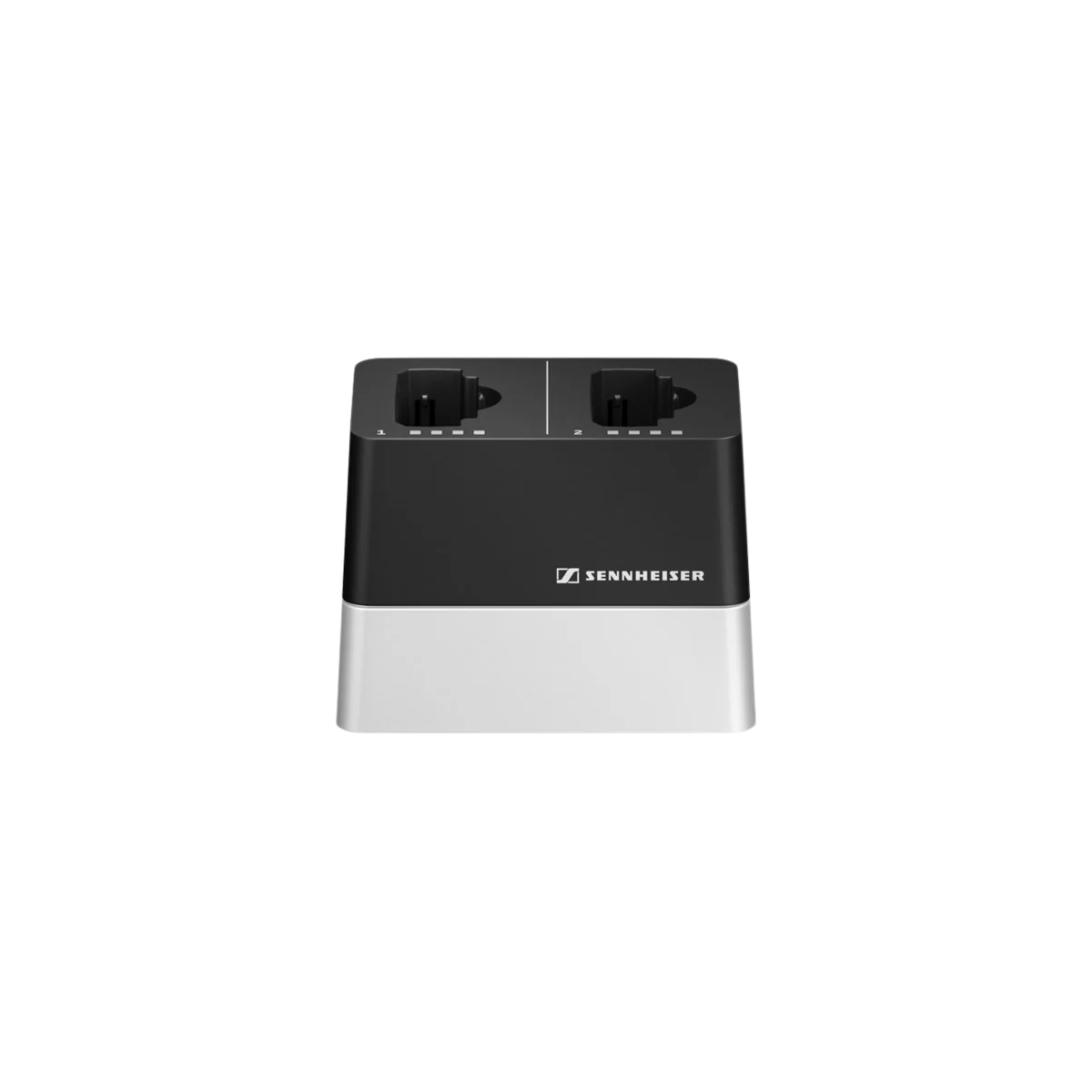

Sennheiser CHG 2N Networked Two-Bay Charger
The point of the CHG 2N over the plain CHG 2 is the N: an RJ45 port that reports every bay to Sennheiser Control Cockpit over IPv4 or IPv6. A technician managing rooms across a campus can see which transmitters are charged before walking to the building, which is the difference between a room being ready and a meeting starting late.
It takes two SpeechLine Digital Wireless transmitters, SL Bodypack DW or SL Handheld DW, and brings them up in about two hours at 1 A and 5 V per bay, with four status LEDs per bay for anyone standing in front of it. The unit is 140 x 100 x 102 mm and 609 g and ships with the NT 12-50CS power supply.
| Charging Bays | 2, SL Bodypack DW or SL Handheld DW |
|---|---|
| Charging Time | Approx. 2 hours |
| Charging Current / Voltage | 1 A per bay / 5 V |
| Network Connection | RJ45, IPv4 and IPv6, Sennheiser Control Cockpit |
| Status Indication | 4 LEDs per bay |
| Operating Temperature | 0 °C to 45 °C |
| Dimensions | 140 x 100 x 102 mm |
| Weight | 609 g |
| Included | CHG 2N charger, NT 12-50CS power supply |
