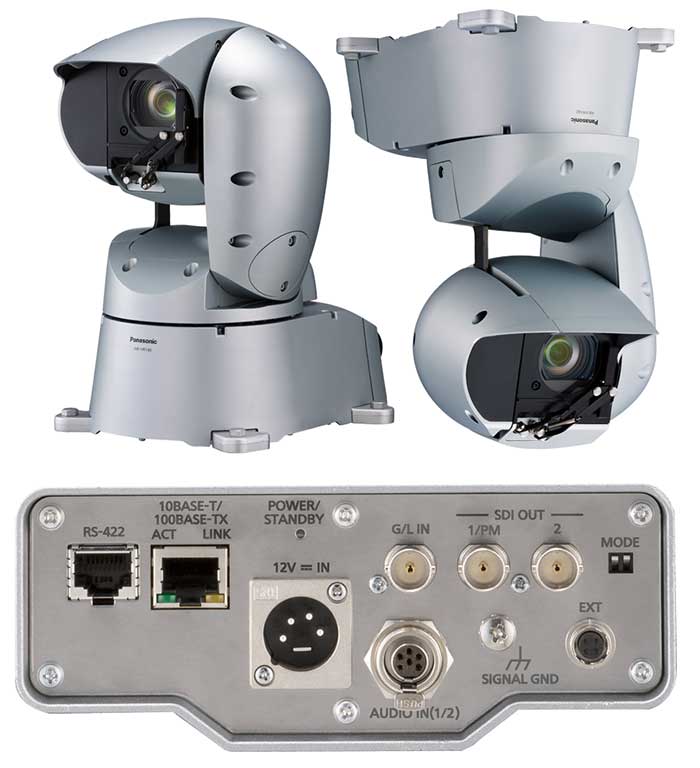

Outdoor housing and camera, lens, and pan head are integrated in the AW-HR140 camera system.
The camera is equipped with a Digital Signal Processor (DSP) and 1/2.86 type full HD 3MOS sensors. High sensitivity, high S/N ratio, and high resolution are achieved by advanced video processing.
In addition, mechanisms needed for shooting outdoors are enhanced as well. Flexible operation is achieved by features compatible with tough outdoor environments such as resistance to water and dust, wind pressure, and severe salt damage, as well as hot environments.
KEY FEATURES
The camera is equipped with a Digital Signal Processor (DSP) and 1/2.86 type full HD 3MOS sensors. High sensitivity, high S/N ratio, and high resolution are achieved by advanced video processing.
In addition, mechanisms needed for shooting outdoors are enhanced as well. Flexible operation is achieved by features compatible with tough outdoor environments such as resistance to water and dust, wind pressure, and severe salt damage, as well as hot environments.
KEY FEATURES
- 3MOS Sensor (1/2.86 MOS×3) up to 1080/60p Full HD capabilities inheriting sensor technology from the best in class AW-HE130 for superb low-light performance and color reproduction
- 20X Optical Zoom with integrated motorized ND (Neutral Density) filters with Digital Extender and Digital Zoom capabilities.
- 3G-SDI Output x2 (one with on screen display capabilities, and one with a clean feed)
- Intelligent Automatic Functionality : Gain, IRIS, electric shutter, ND, ATW Haze Reduction for increased image clarity and color in obscured outdoor conditions

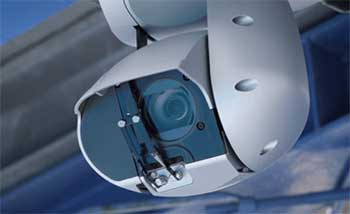

- Integrated Wiper and trigger capability for external washer unit.
- IP65 Rating for Outdoor Environments
- Fiber Glass Body with Salt-Resistant Coating & Heat Resistivity
- Defroster for Cold Temperatures
- DC12 Power Input or PoE++ (Power Over Ethernet ++)
- Stereo Audio Input (mini XLR)
- Can be mounted desktop (face up) or ceiling/inverted (face down)
- Basic Mounting Hardware Included
Rain, Sleet or SnowParts of the AW-HR140 have a special coating to protect against severe salt damage, enabling installations in areas subject to salt air. Polybutylene Terephthalate and Polyphenylene Sulfide materials are used to provide resistance to high-heat and abrasion, while frost, ice, and condensation are prevented by built-in heating in environments as cold as -15 ºC (5 ºF). Even in blizzards, snow that hits the glass surface melts off to maintain visibility.
Super Haze ReductionThe AW-HR140 boasts haze-reduction technology -- valuable for outdoor environments such as weather reporting -- for ensuring optimal image reproduction. In certain situations, picture contrast may be low as result of environmental fog or haze conditions, and the Haze Reduction function will optimize camera image settings appropriately to assure that the subject of shooting is as clear as possible.
GENERAL SPECS
- Power Requirements
DC 12 V to 21.8 V (DC IN connector)
DC 42 V to 57 V (PoE++ power supply) - Current consumption 3.1 A to 5.5 A (DC IN connector) 1.2 A (PoE++ power supply)
- Ambient Operating Temperature -15 °C to 45 °C (5 °F to 113 °F) (preheating is required when -5 °C (23 °F) or less)
- Ambient Operating Humidity 10% to 100% (no condensation)
- Storage Temperature -20 °C to 55 °C (-4 °F to 131 °F)
- Storage Humidity 10% to 95% (no condensation)
- Mass Approx. 9.0 kg (19.84 lb)
- Dimensions (W x H x D) 258 mm x 357 mm x 397 mm (10-5/32 inches x 14-1/16 inches x 15-5/8 inches) (including protrusions and cable cover)
- Finish Silver, salt resistant coating
- Waterproof and Dust Proof IP65 compliant
- Maximum Permissible Wind Speed
15 m/sec: Operates normally
50 m/sec: Operation possible
60 m/sec: No damage - Wiper Installed as standard
- Heater Installed as standard
- Defroster Installed as standard
- Controller Supported AW-RP120G, AW-RP50
INPUT/OUTPUT
- Input/Output Connector | LAN LAN connector for IP control/video output/audio output/ PoE++ power supply PoE++ (IEEE802.3bt Draft ver.2.0 standard)
- Input/Output Connector | RS-422 CONTROL IN RS-422A
- Input/Output Connector | EXT #1: DC GND, #2: HOT, #3: COLD, #4: 12V-OUT
- Pan-tilt Head Unit -
- Installation Method Stand-alone (Desktop) or suspended (Hanging) ・ To ensure safety, the unit must be secured using the mount bracket supplied.
- Camera/Pan-Tilt Head Control | IP Connecting Cable ・ When connecting through a PoE++ hub: LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft) ・ When a PoE++ hub is not used: LAN cable*4 (category 5 or above, straight cable) max. 100 m (328 ft)
- Camera/Pan-Tilt Head Control | AW Series Connecting Cable/Standard Protocol Connecting Cable LAN cable*4 (category 5 or above, straight cable), max. 1000 m (3280 ft)
- Pan/Tilt Operation Speed Maximum speed 60°/s or higher
- Panning range ±175° ・ For suspended installations, the positions of the pins that determine the movement range must be changed.
- Tilting Range -30° to 210° ・ Depending on the pan or tilt position, the camera may be reflected in the image. ・ For suspended installations, the positions of the pins that determine the movement range must be changed.
- Quietness 60°/s (NC45 or less)
- Vibration Correction D.I.S.S. (Dynamic Image Stabilizing System)
- Accessories Hexagonal bolt M8 × 30 mm: 4 M8 washer : 4 Spring washer: 4 Cable cover : 1 Washer nozzle mount bracket: 1 Drop-prevention wire : 1 Drop-prevention wire mounting screw (with hexagonal socket, for unit) M4 × 10 mm : 1
- Note *1: Native output *2: Over 59.94i output *3: For 1080/25PsF, 50i may be displayed on the monitor screen. Furthermore, for 1080/23.98PsF and 29.97PsF, 59.94i may be displayed on the monitor screen. *4 Use of an STP (shielded twisted pair) cable is recommended. ・ When connecting directly to a controller without an Ethernet hub, use a cross cable.
CAMERA UNIT
- Imaging Sensors 1/2.86-type Full-HD 3MOS
- LENS Optical 20x zoom/10x digital zoom, F1.6 to F3.4
(f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm) - Focus Switching between auto and manual
- Focus Distance Entire zooming range: 800 mm (2.62 ft)
Wide end: 400 mm (1.31 ft) Color separation optical system 3MOS - MINIMUM ILLUMINATION 2 lx (50 IRE, F1.6, 36 dB, without accumulation)
- Horizontal Resolution 1000 TV lines Typ (Center area)
- Gain Selection Auto, 0 dB to 42 dB (1 dB steps)
37 dB to 42 dB is Super Gain Mode - Frame Mix 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
・ This cannot be configured when the format is 1080/29.97p, 1080/23.98p, 1080/29.97PsF, 1080/23.98PsF, 1080/25p, or 1080/25PsF.
・ When [Iris Mode] or [Focus Mode] is set to [Auto], this cannot be set to 18 dB or 24 dB.
- Electronic Shutter Speed | 59.94p/59.94i 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
- Electronic Shutter Speed | 29.97p 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
- Electronic Shutter Speed | 23.98p 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
- Electronic Shutter Speed | 50p/50i 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
- Electronic Shutter Speed | 25p 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
- Synchro Scan | 59.94Hz 60.15 Hz to 642.21 Hz (255 steps)
- Synchro Scan | 50Hz 50.15 Hz to 535.71 Hz (255 steps)
- Gamma HD, FILMLIKE1, FILMLIKE2, FILMLIKE3 0.30 to 0.75 (Manual setting)
- WHITE BALANCE AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K)
- Chroma Amount Variability OFF, -99% to 40%
- Scene File Scene1, Scene2, Scene3, Scene4
- Intelligent Functions Auto function for each of accumulation, gain, iris, electronic shutter, ND, and ATW
- Output Format 1080/59.94p, 1080/29.97p*1 , 1080/23.98p*2 , 1080/59.94i, 1080/29.97PsF*3 , 1080/23.98PsF*3 , 720/59.94p, 1080/50p, 1080/25p*1 , 1080/50i, 1080/25PsF*3 , 720/50p
- Synchronization System Internal/External synchronization (BBS/Tri-level sync)
- Line Input Audio In 1/2 | Input Impedance High impedance
- Line Input Audio In 1/2 | Input 2 channels, XLR balanced input
・ Input signal level: +4 dBu/0 dBu/-20 dBu (selectable in menu)
・ Volume variable range: -40 dB to +12 dB (can be changed in 1 dB steps in the menu) - Line Input Audio In 1/2 | Output
・ 4 channels, superimposed over SDI output
・ Embedded audio output level: FS-12 dB: -12 dBFS, FS-18 dB: -18 dBFS, FS-20 dB: -20 dBFS (selectable in menu)
・ Sampling frequency: 48 kHz (synchronized to video)
・ Quantization bit rate: 24-bit (LPCM)
・ Audio compression format (IP): G.726, AAC-LC (High quality)
INPUT
- Input Connector | 12V IN XLR connector
- Input Connector | G/L IN BNC connector
・ BBS (Black Burst Sync), tri-level sync supported
・ Locking to a subcarrier is not possible with BBS. - Input Connector | Audio input mini XLR connector (line input)
#1: INPUT1 Common, #2: INPUT1 HOT, #3: INPUT1 COLD, #4: INPUT2 Common, #5: INPUT2 HOT, #6: INPUT2 COLD
OUTPUT
- Video Output | HD-SDI OUT SMPTE424/SMPTE292 standards
75 Ω (BNC x 2)
・ OSD output is possible from the SDI OUT 1/PM connector but not from the SDI OUT 2 connector.
CAMERA
MECHANICAL
CONTROL INTERFACE
POWER & DIMENSIONS
NETWORK
- Image Sensor 1 / 2.86 inch CMOS 2.2MP
- Lens 4.47-47mm
- Optical Zoom 10x
- Horizontal Angle of View 60.9° (W) – 6.43° (T)
- Aperture F1.6 (W) – F3.0 (T)
- Min. Illumination Color: 0.5 lux
- Shutter Speed 1/1 – 1/30000s
- Focus Auto, Push, Manual
- White Balance Auto, Indoor, Outdoor, Manual, OPW, ATW
- Exposure Auto,Manual,Shutter/Iris Priority
- Backlight Compensation YES
MECHANICAL
- Pan Movement Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S )
- Tilt Movement Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜72°/S)
- Preset Positions 128 (Speed adjustable: Up to 150o/s)
- Preset Speed 0-5 Level adjustable
- Environmental Indoor
- Operating Temperature -10 – +50 (°C)
- Operating Humidity ≤80%
- Video Output NDI/HDMI/SDI
- Video Formats
1080P 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
- Audio I/O
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)
CONTROL INTERFACE
- IP PTZ Control NDI Control (auto configuring)
- Serial PTZ Control 1x RJ45: RS232/RS422
- Serial Control Protocol VISCA / Pelco D
POWER & DIMENSIONS
- Power Input 12vDC, PoE+ (IEEE 802.3at)
- Dimensions 145 x 145 x 154mm
- Weight 1.0kg
NETWORK
- Video Compression Full NDI – i-frame high quality low latency NDI for production
- Network Protocol NDI – Discovery, configuration and control
- Web Control interface Full control via Web/Mobile UI including Scene presets
