Panasonic AW-RP150 PTZ Camera Controller

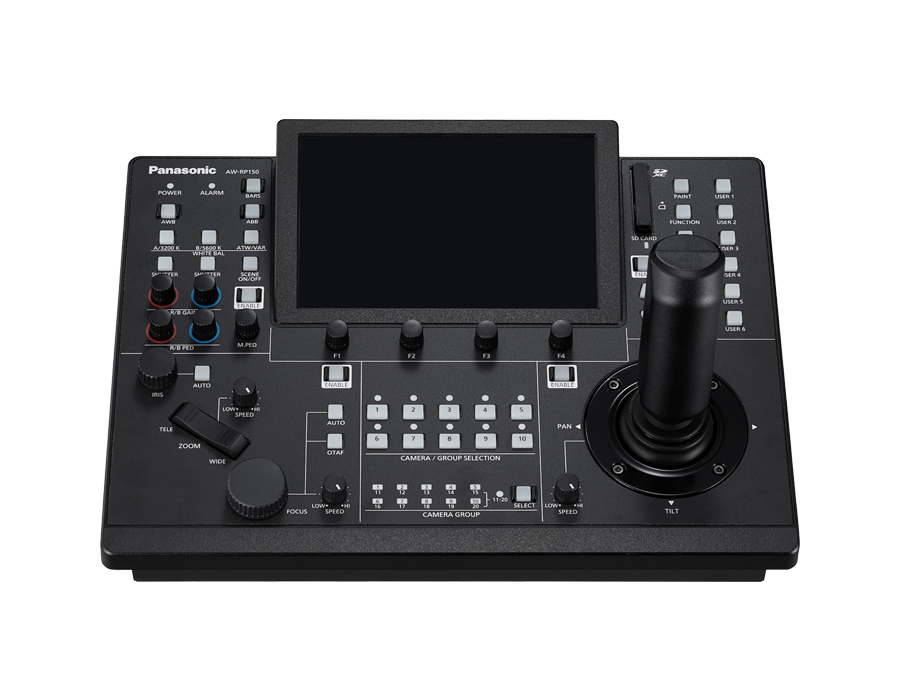

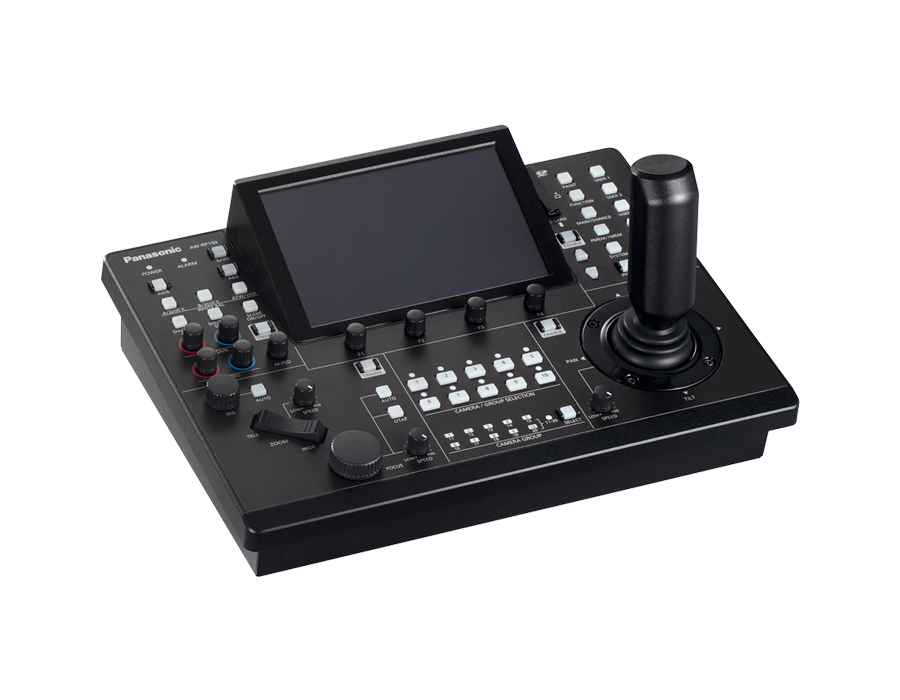

The AW-RP150 is a hardware controller for Panasonic professional PTZ cameras, built around a 7-inch touchscreen and a one-hand joystick that switches between pan/tilt/zoom and focus. The touchscreen shows the live menu along with key camera state such as iris, zoom, and focus, so an operator can frame and trim shots without leaving the panel. It manages up to 100 presets per camera for repeatable moves during a service, lecture, or broadcast.

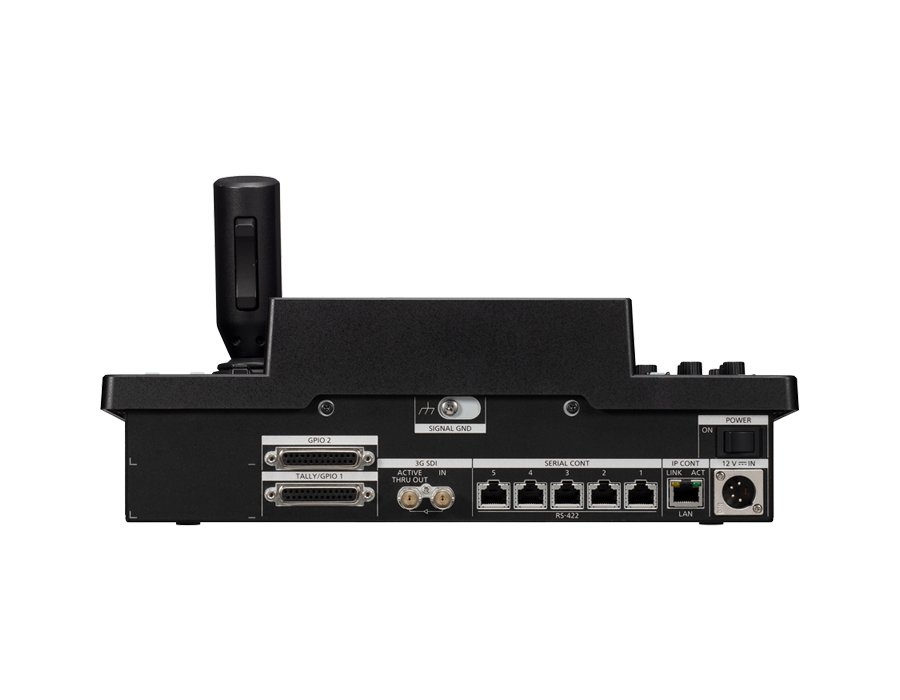

It addresses up to 200 cameras over IP and up to five over RS-422 serial, making it the hub of a multi-camera network rig. Power comes from PoE+ over the same LAN cable that carries control, or from a 4-pin XLR DC input when PoE is not available. The unit measures 342 by 178 by 245 mm excluding protrusions and weighs about 3.2 kg.
