Marshall Electronics V-1217 420 TV Line CCD DSP B/W Board Camera

The V-1217 is a 1/3-inch CCD DSP board camera delivering 420 TV lines with 0.03 lux (F1.2) low-light performance suited to near-infrared imaging, aimed at OEM, industrial, law enforcement, medical and security integration. Automatic gain control, a switchable mirror function and 2x digital zoom are built into a compact 32x32mm board.

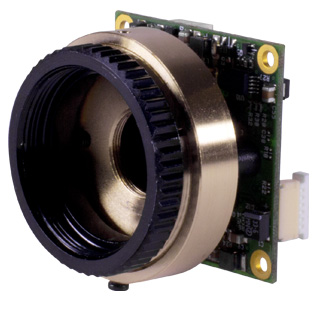

The C/CS variant ships in a housed body with a standard C/CS lens mount for a drop-in camera; the PCB-3.7 variant is the bare 32x32x30mm board with a fixed 3.7mm F2.0 M12 lens for OEM integration where board space, not a lens mount, is the constraint.
