Lowell SM805A Sound Masking Speaker, 8in

The Lowell SM805A is an 8-inch sound masking speaker for above-ceiling and suspended-ceiling installation, built around a 12W dual cone driver in a compact 325 cubic inch backbox, smaller than Lowell's 15W and 50W 8-inch models.

Ordered as Lowell part number SM805A. An externally accessible rotary switch sets the 70V transformer's tap. Lowell rates it UL 1480A Listed, UL 2043 suitable for return air plenum space, CSA 22.2 No. 205-12. Made in the U.S.A. with global components.

Driver	8 in. 12W dual cone driver

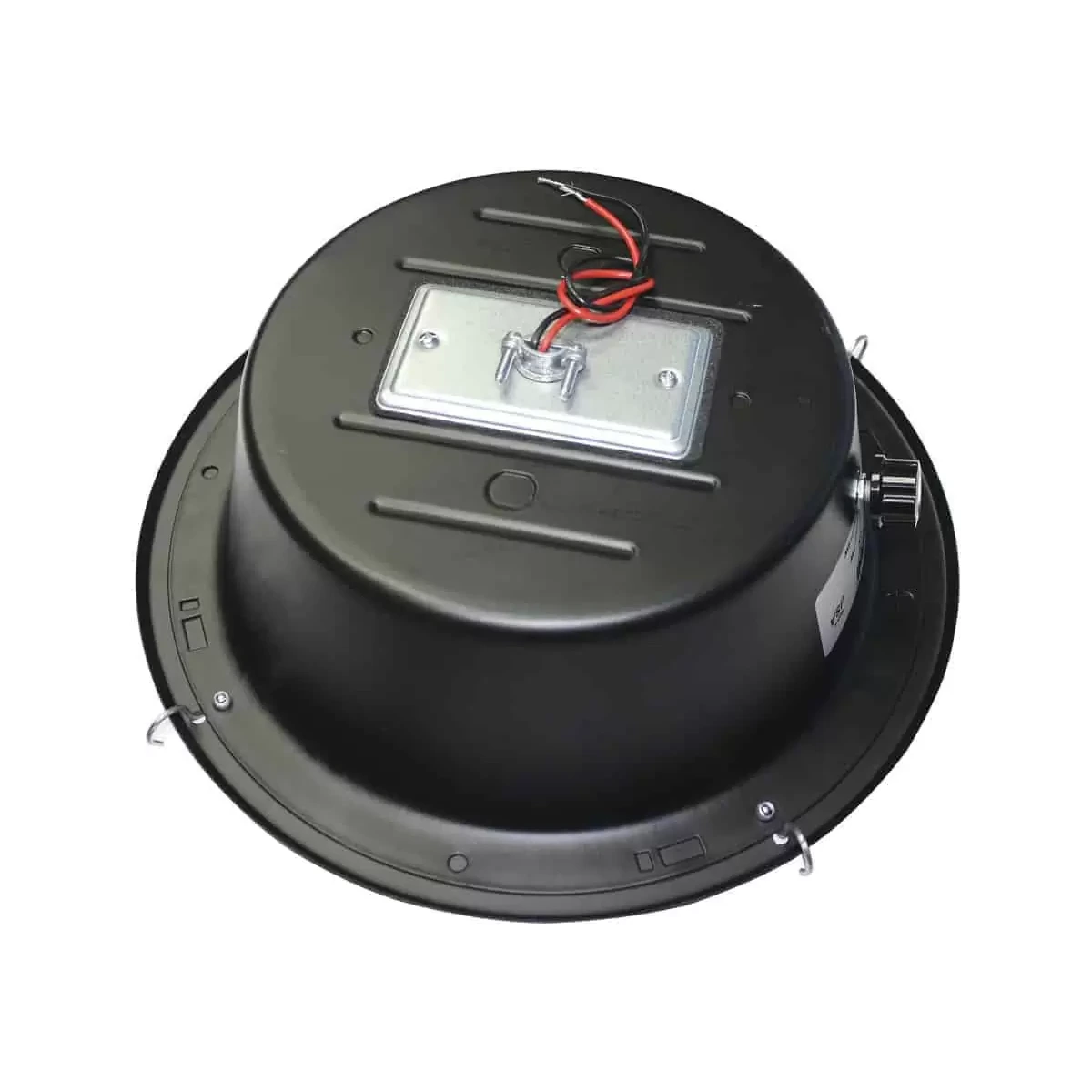

Transformer	70V, taps at 0.25, 0.5, 1, 2, 4W, externally accessible rotary switch
Enclosure	325 cu.in. volume, 3.93 in. deep
Grille	Perforated steel, 12.875 in. diameter, black

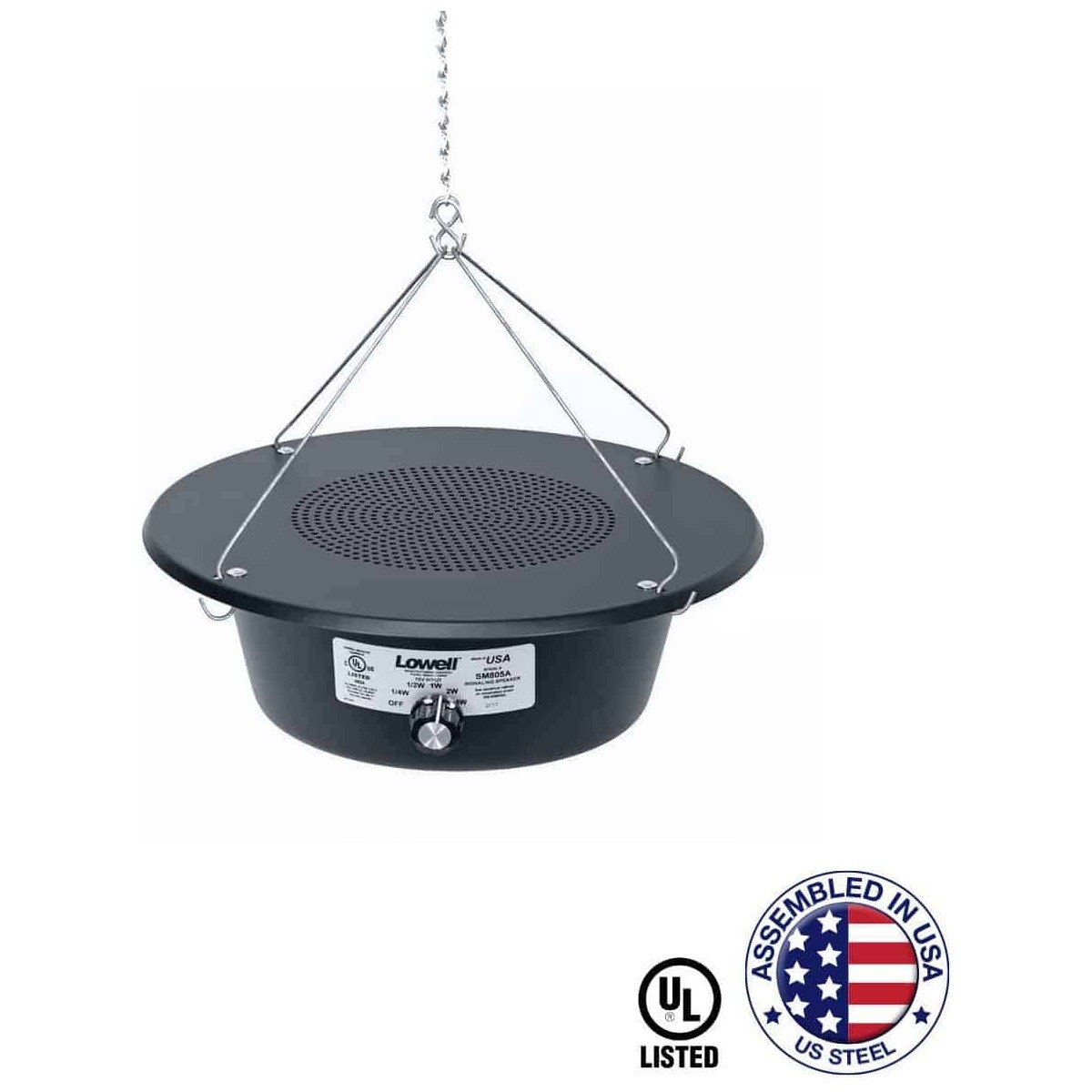

Mounting	Removable wire hangers, S-hooks, 4 ft. chain; rigging hardware not included
Compliance	UL 1480A Listed, UL 2043 suitable for return air plenum space, CSA 22.2 No. 205-12
Country of Origin	Made in the U.S.A. with global components
