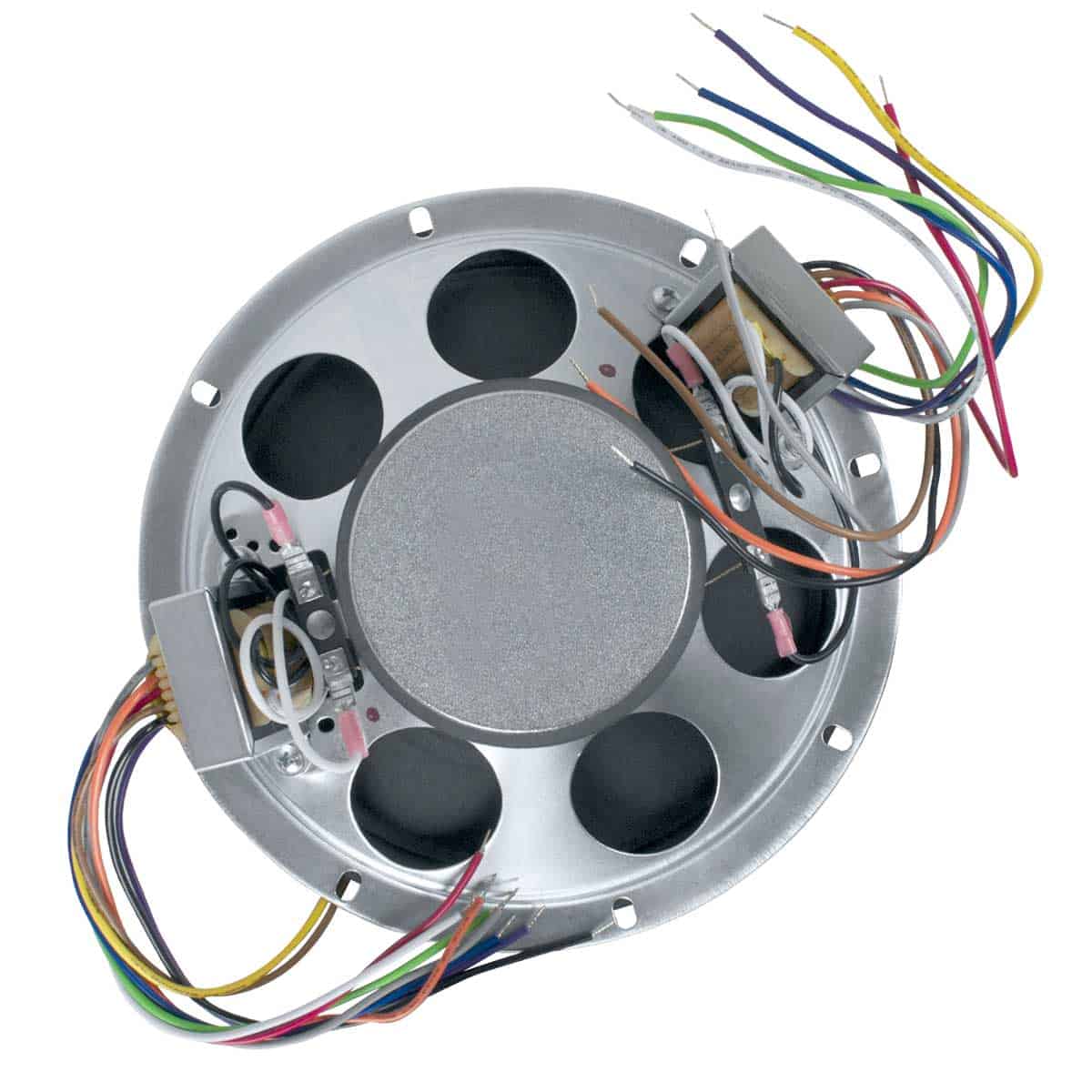

Lowell 8C10DVCA-2T72 8in Speaker w 2xfmr

The Lowell 8C10DVCA-2T72 is an 8-inch dual voice coil 8 inch driver. Lowell publishes construction of 20-gauge steel, frame of 20-gauge stamped steel with zinc-plated finish and assembly frequency response of 54Hz-9kHz (±6dB), 50Hz-20kHz (±13.4dB).

Ordered as Lowell part number 8C10DVCA-2T72. Assembled in U.S.A. with global components. Specifications as published by Lowell Manufacturing.

Construction	20-gauge steel
Frame	20-gauge stamped steel with zinc-plated finish
Assembly Frequency Response	54Hz-9kHz (±6dB), 50Hz-20kHz (±13.4dB)
Assembly Average Sensitivity	95.8dB
Assembly Dispersion Angle	90 degrees conical
Assembly Mounting Depth	2.84 in
Country of Origin	Assembled in U.S.A. with global components
Mounting Bolt Circle	7.625 in
