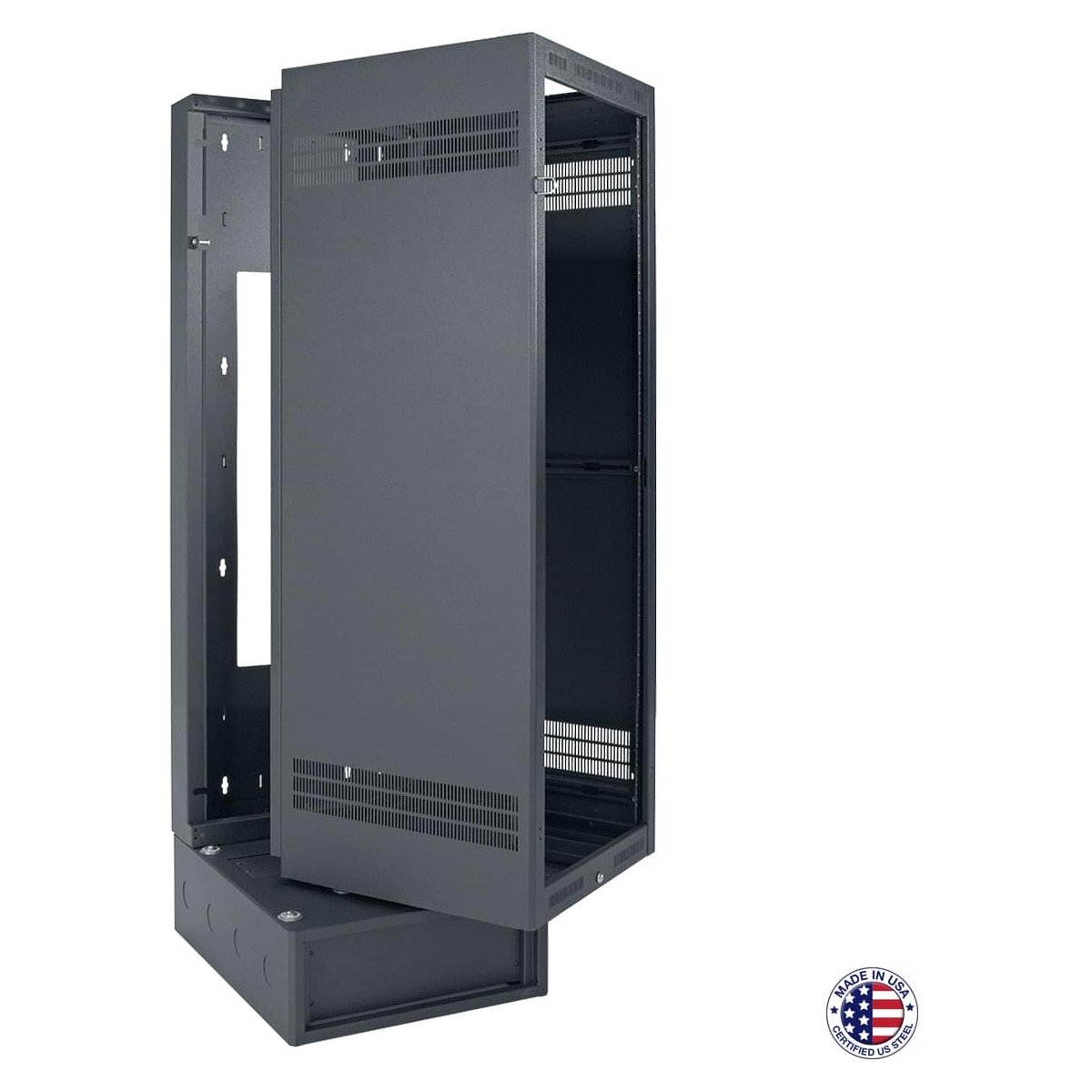

Lowell LWBR-3532 Wall Rack w Base 35Ux32D

The Lowell LWBR-3532 is an EIA-compliant wall-mount rack. Lowell specifies one-pair adjustable mounting rails tapped 10-32, printed RU scale, support base (4U) has access panels and stainless steel ball transfers to support cabinet, black-textured powder-coat finish and pilot point screws with captive washers.

Ordered as Lowell part number LWBR-3532. Specifications as published by Lowell Manufacturing.

Rack Space	35U (+4U in base)
Knockouts	Backbox (4.69 in. deep) mounts on 16 in. centers. Large central cutout fits over wall obstructions. Laser-cut knockout panel on top has knockouts for wireless antennas and combination knockouts for conduit.
Height	77.03 in.
Width	23.06 in.
Depth	32.40 in. (30 usable)
Load Capacity	500 lbs.
Finish	Black-textured powder-coat finish

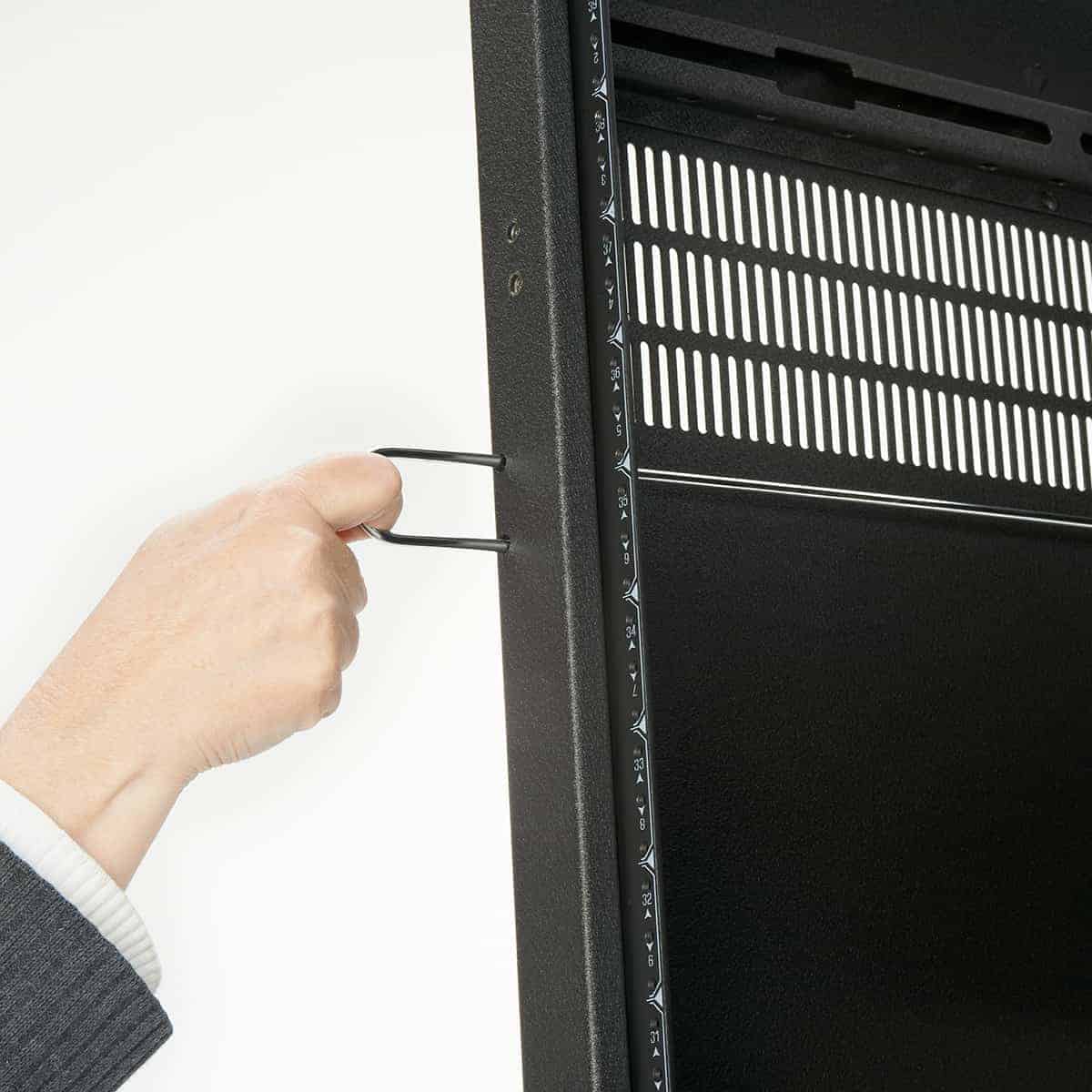

Mounting Rails	One-pair adjustable mounting rails tapped 10-32, printed RU scale
