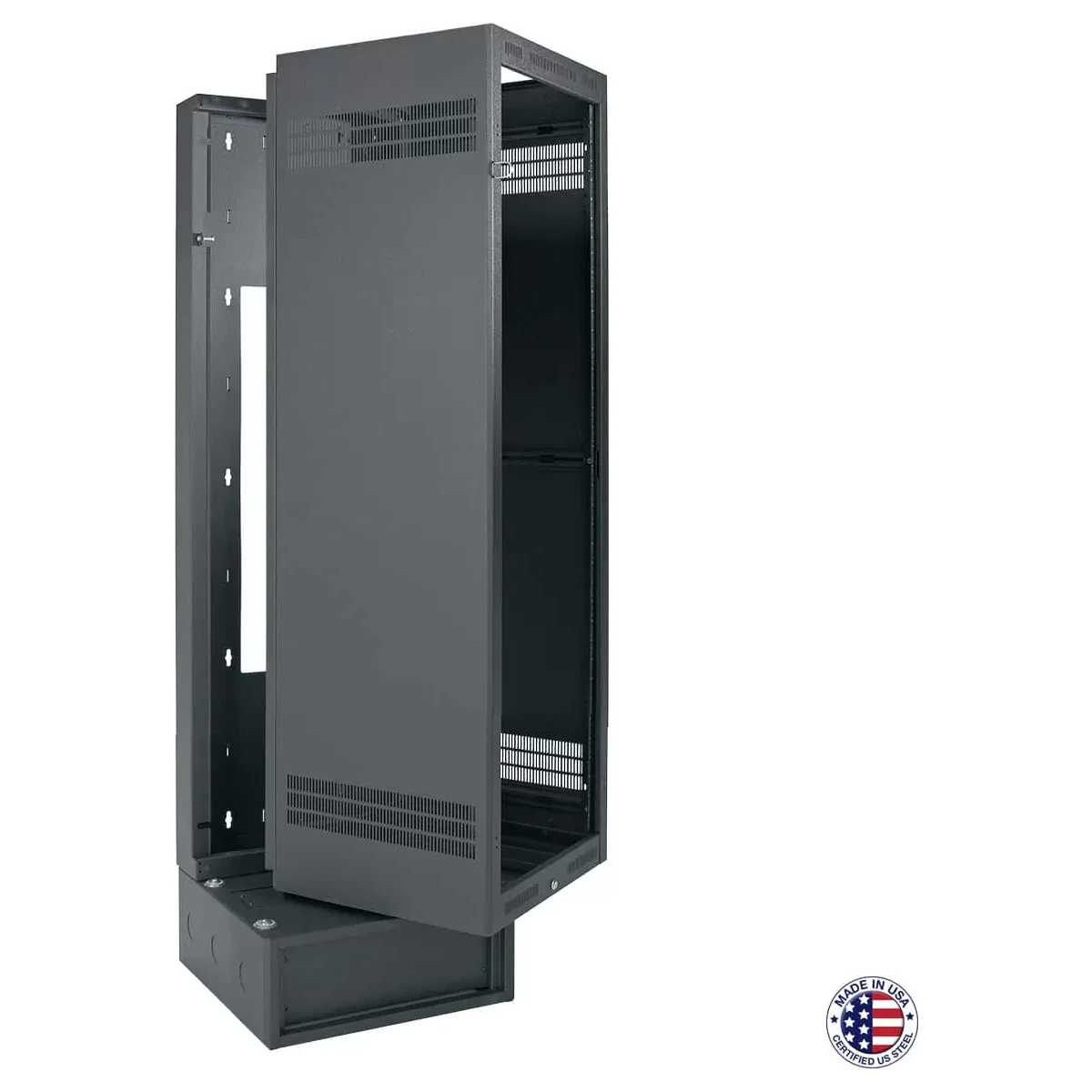

Lowell LWBR-4022 Wall Rack w Base 40Ux22D

The Lowell LWBR-4022 is an EIA-compliant wall-mount rack. Lowell specifies one-pair adjustable mounting rails tapped 10-32, support base (4U) has access panels and stainless steel ball transfers to support cabinet, black-textured powder-coat finish and pilot point screws with captive washers.

Ordered as Lowell part number LWBR-4022. Specifications as published by Lowell Manufacturing.

Rack Space	40U (+4U in base)
Knockouts	Backbox (4.69 in. deep) mounts on 16 in. centers. Large central cutout fits over wall obstructions. Laser-cut knockout panel on top has knockouts for wireless antennas and combination knockouts for conduit.
Height	85.78 in.
Width	23.06 in.
Depth	22.40 in. (22 usable)
Load Capacity	500 lbs.
Finish	Black-textured powder-coat finish
Mounting Rails	One-pair adjustable mounting rails tapped 10-32
