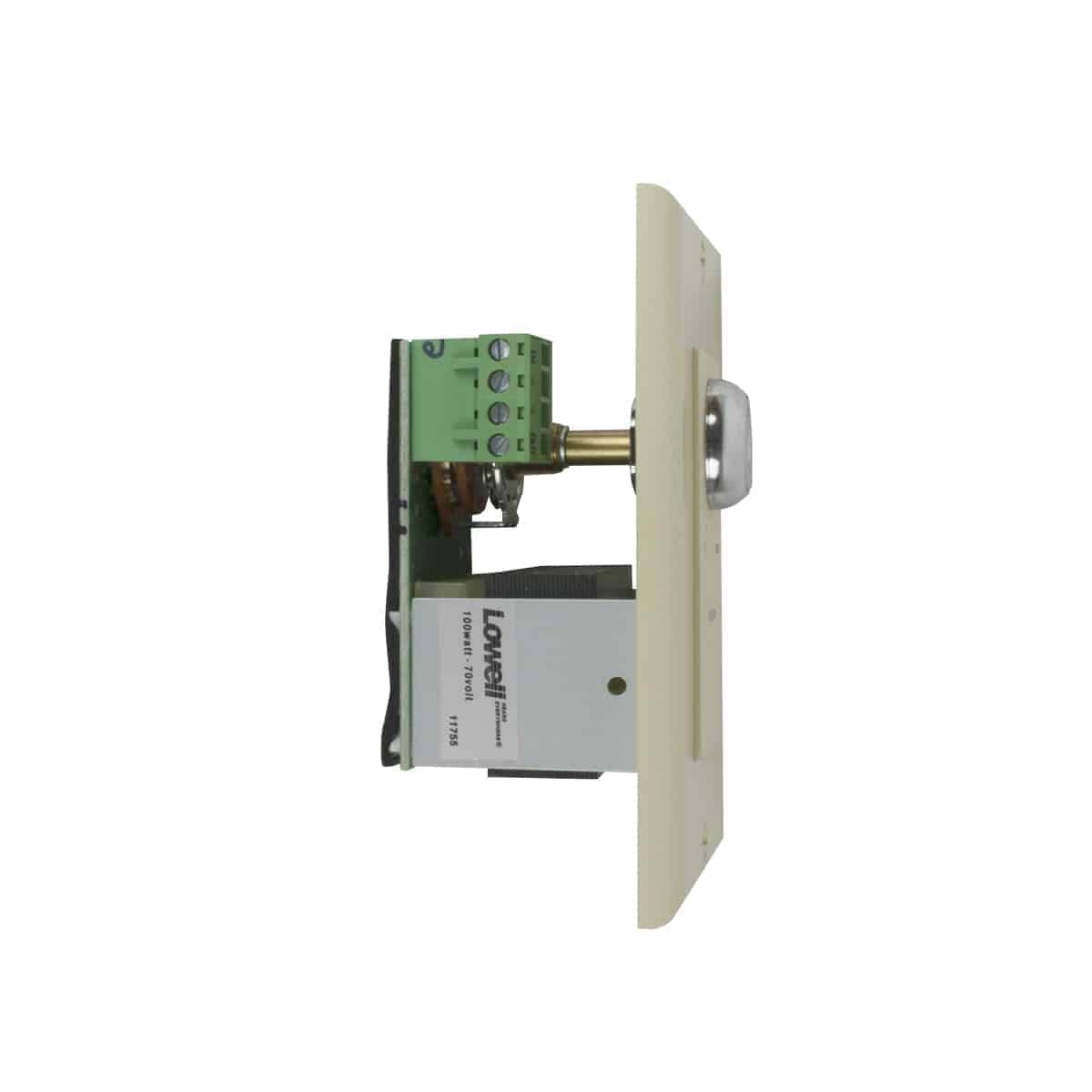

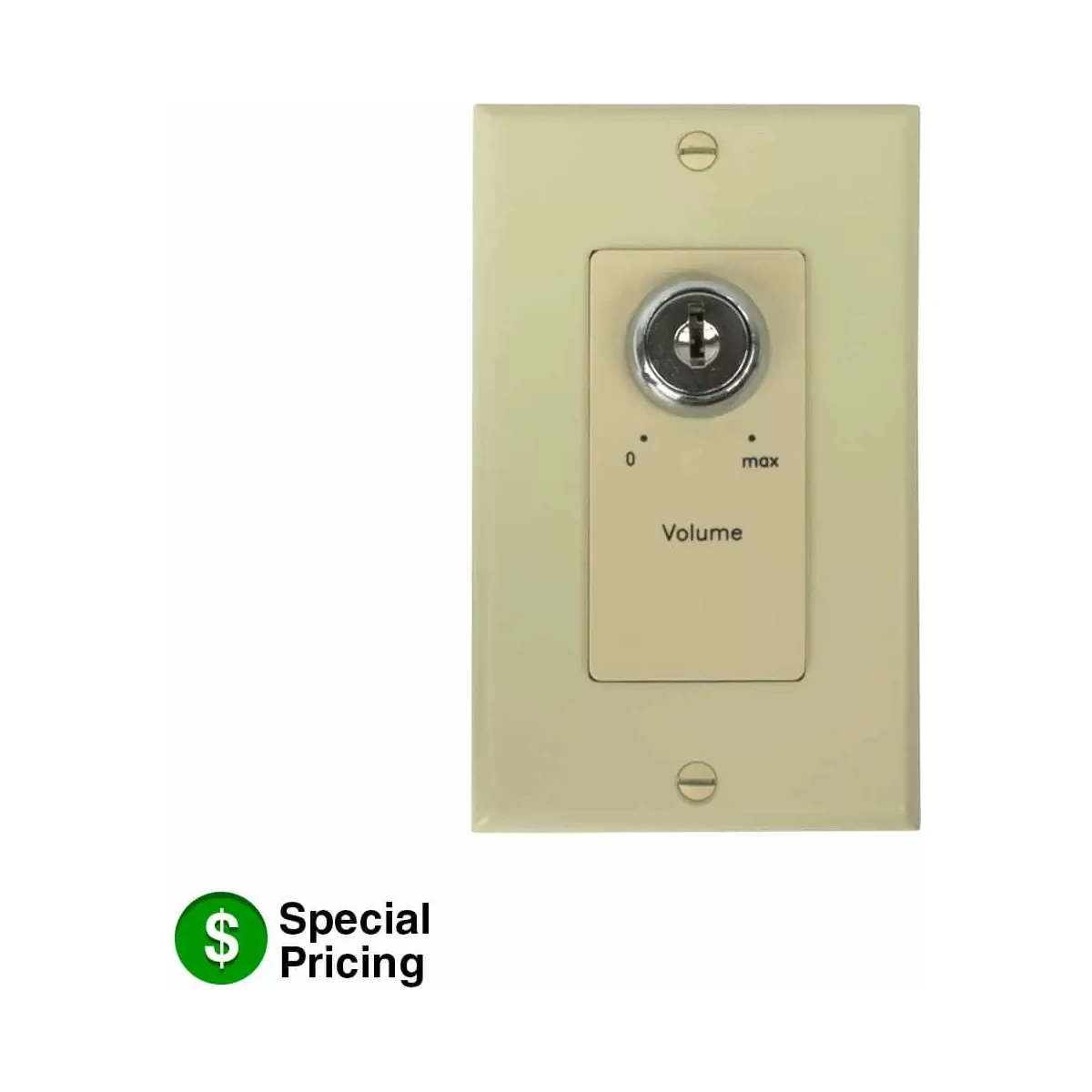

Lowell KL100-DI Attenuator w key-100W

The Lowell KL100-DI is an ETL Listed (UL60065, UL2043) volume control. Lowell specifies two steps of 6dB each before off.

Ordered as Lowell part number KL100-DI. Specifications as published by Lowell Manufacturing.

FitsFits standard E.O. box (2.125 in. min. depth)
FinishIvory
Attenuation3dB per step (33dB total)
Volume Positions0-10
Power Rating100W
TerminationPhoenix-style
ActivationKey
Wire Capacity14-gauge
