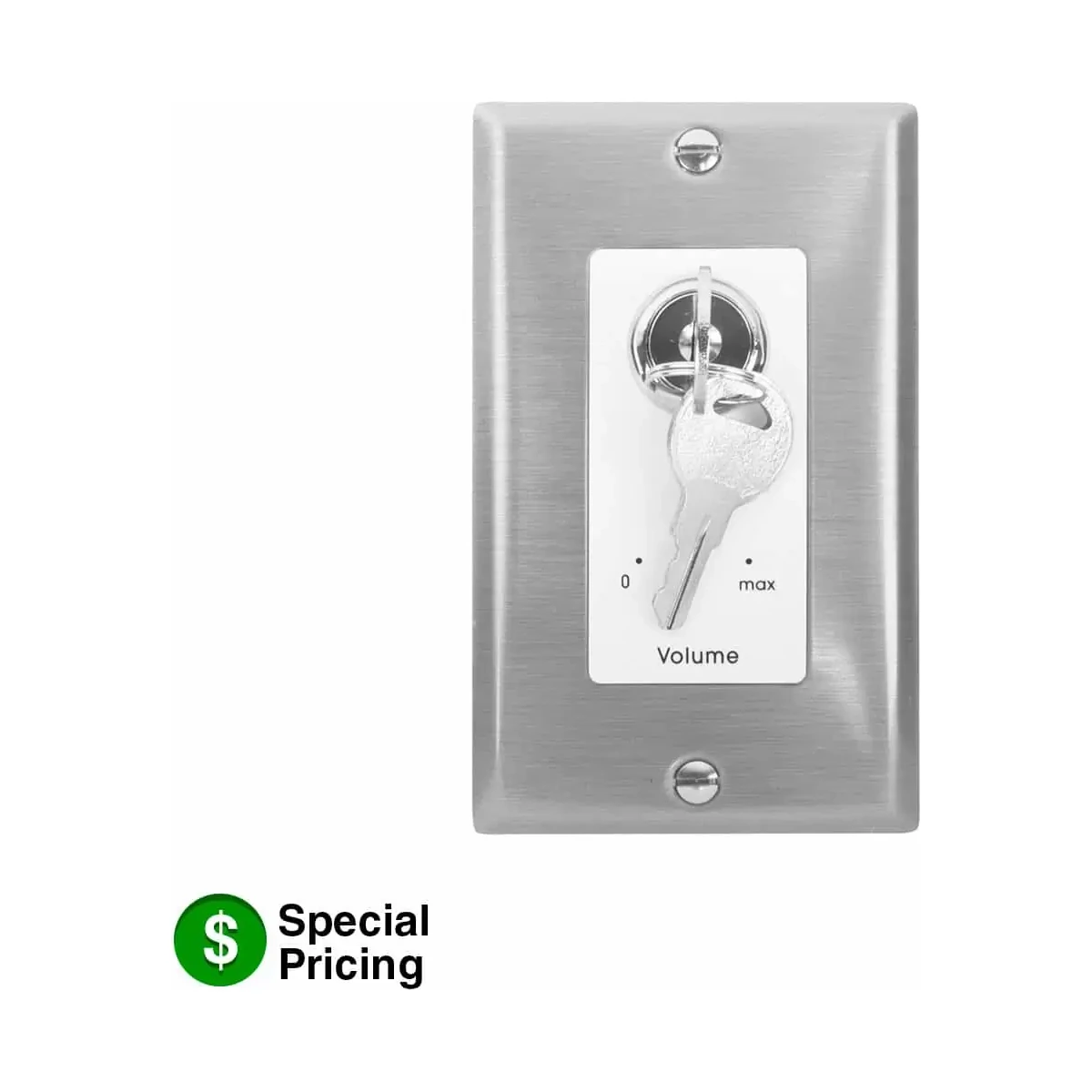

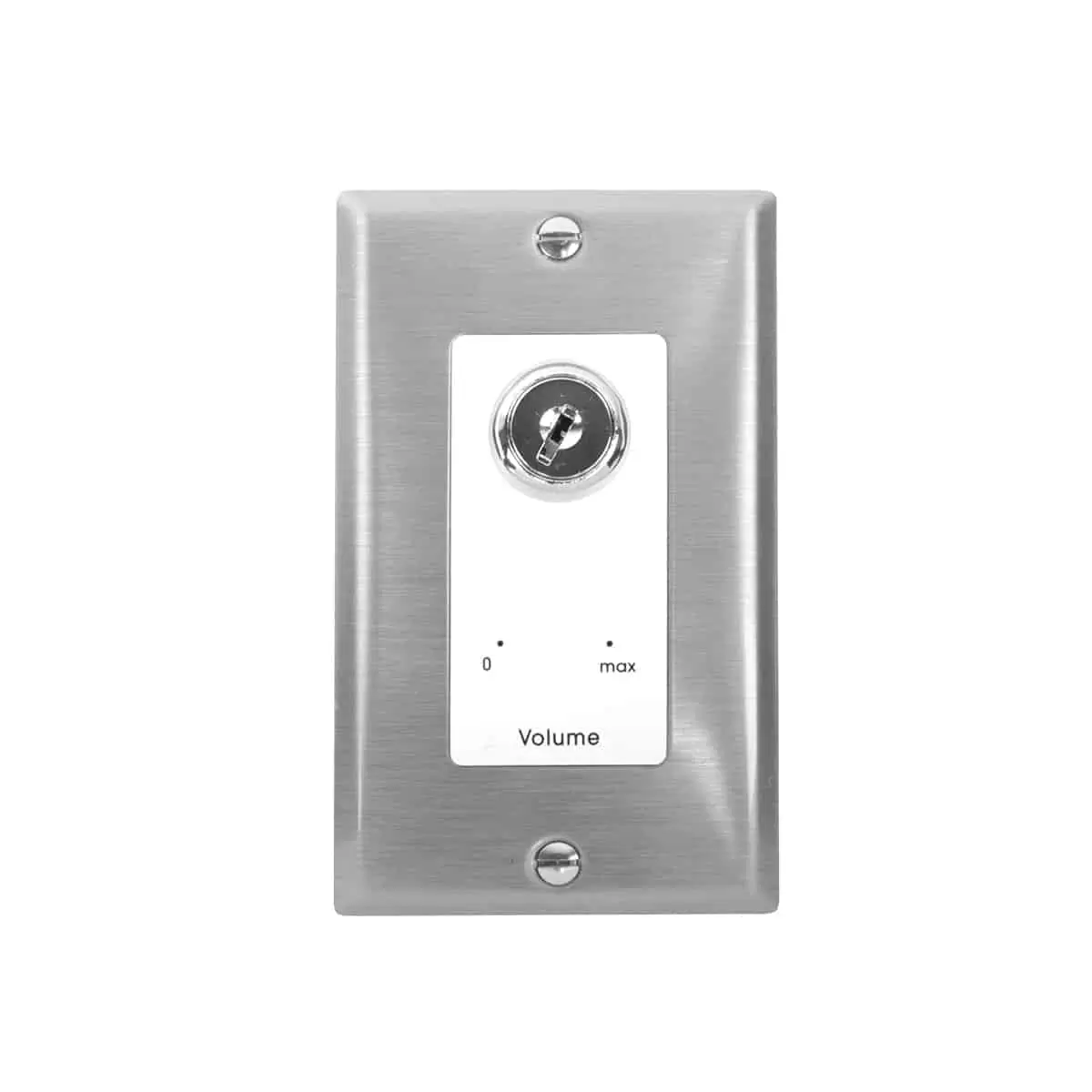

Lowell KL100-DSW Attenuator w key-100W

The Lowell KL100-DSW is an ETL Listed (UL60065, UL2043) volume control. Lowell specifies two steps of 6dB each before off.

Ordered as Lowell part number KL100-DSW. Specifications as published by Lowell Manufacturing.

Fits	Fits standard E.O. box (2.125 in. min. depth)
Finish	Stainless Steel & White
Attenuation	3dB per step (33dB total)
Volume Positions	0-10
Power Rating	100W
Termination	Phoenix-style
Activation	Key
Wire Capacity	14-gauge
