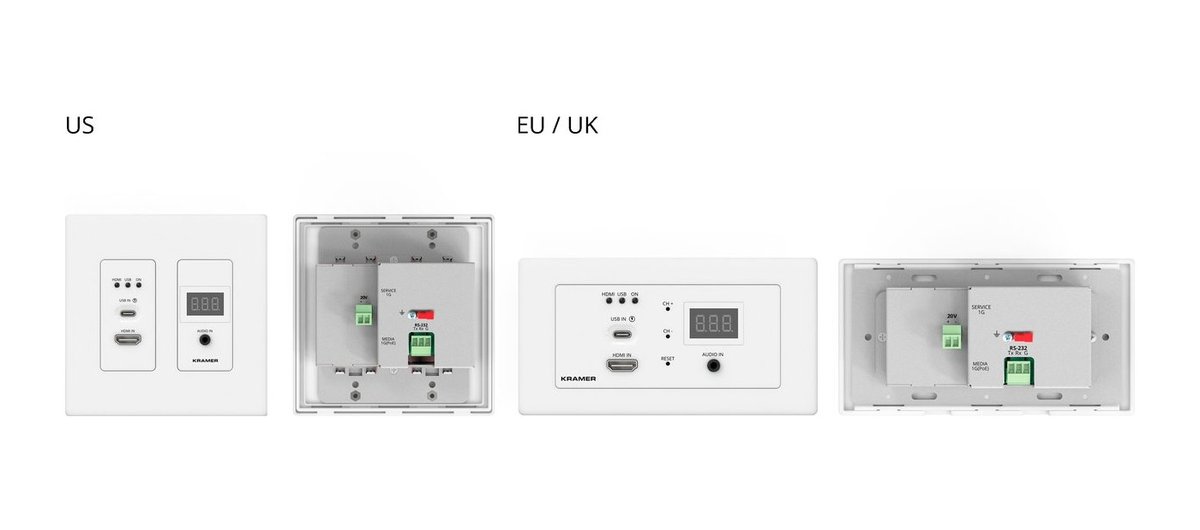

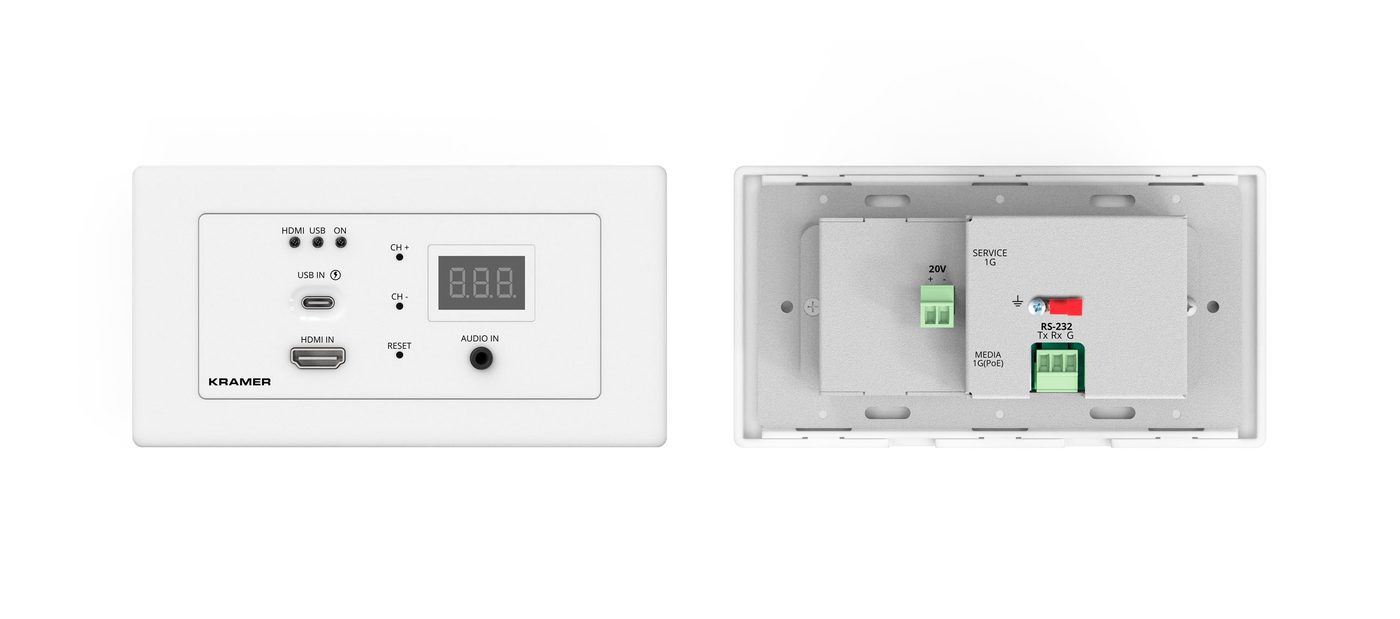

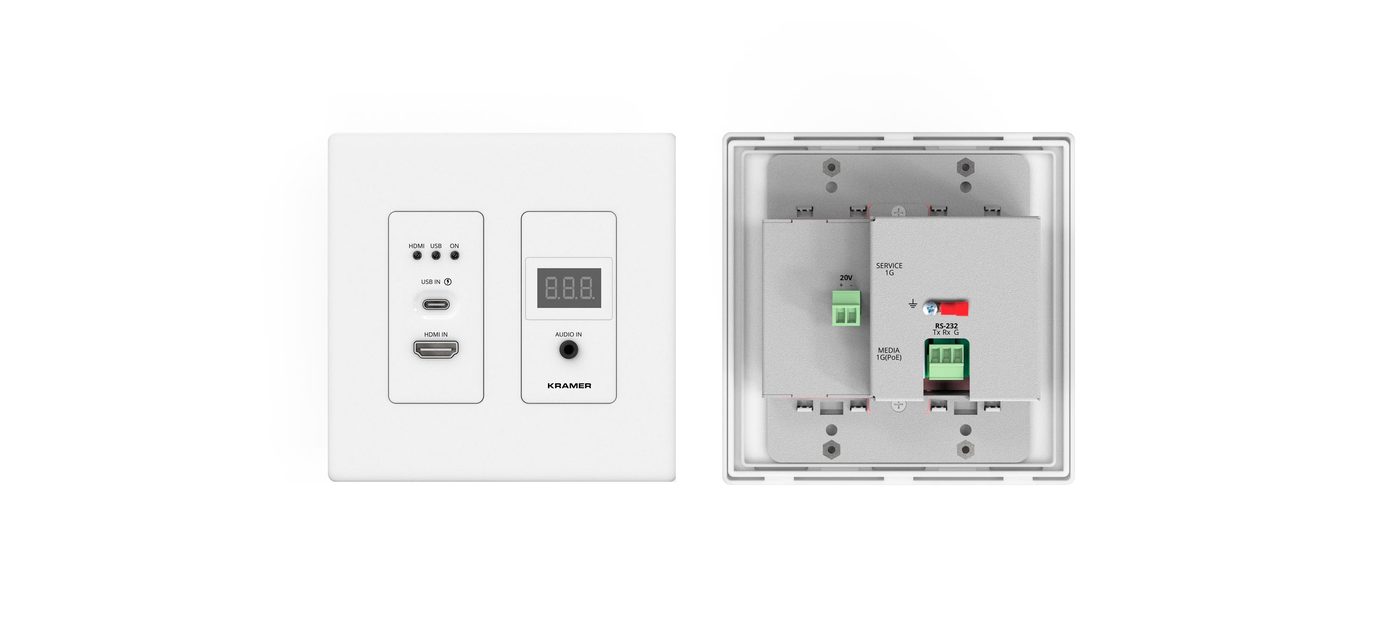

Kramer WP-SW2-EN7 4K AVoIP Encoder Switcher Wall Plate over 1GbE

The Kramer WP-SW2-EN7 is a 4K aVoIP encoder switcher wall plate over 1GbE, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: On a female HDMI connector (inputs - 1 hdmi); On a USB-C connector (inputs - 1 usb); On a female 3.5mm mini jack (inputs - 1 audio). Also: On RJ-45 female connectors (ports - 2 ethernet); On a 3-pin terminal block connector (ports - 1 rs-232); UDP, IGMP snooping non-blocking, Layer 2 (network - multicast); UDP (network - unicast); Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps (network - bitrate).

Inputs - 1 HDMI	On a female HDMI connector
Inputs - 1 USB	On a USB-C connector
Inputs - 1 Audio	On a female 3.5mm mini jack
Ports - 2 Ethernet	On RJ-45 female connectors
Ports - 1 RS-232	On a 3-pin terminal block connector
Network - Multicast	UDP, IGMP snooping non-blocking, Layer 2
Network - Unicast	UDP
Network - Bitrate	Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
