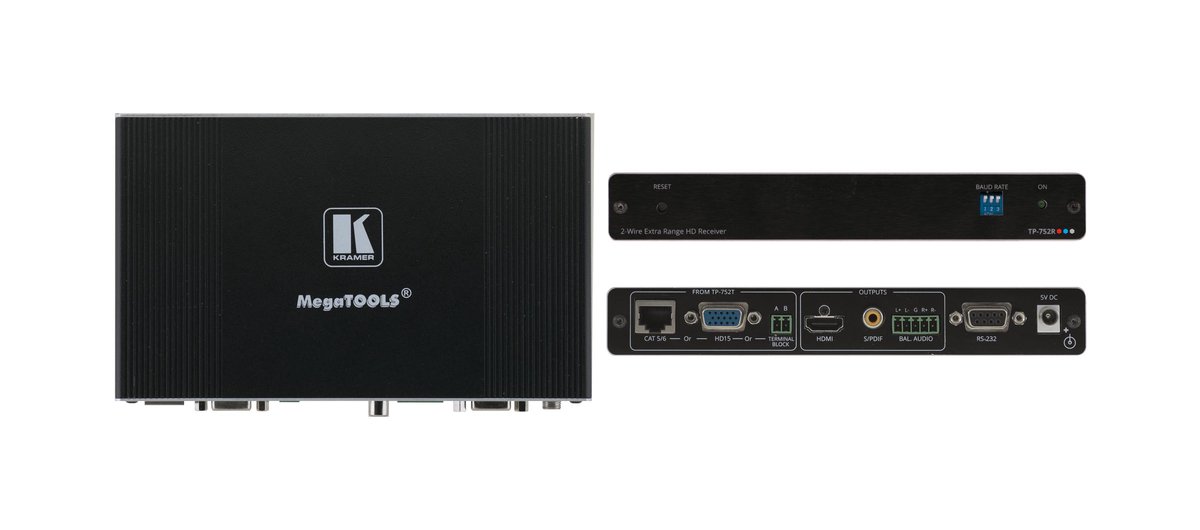

Kramer TP-752R HDMI Ultra-reach Receiver with RS-232 & Loop, over Any 2-wire Cable (576)

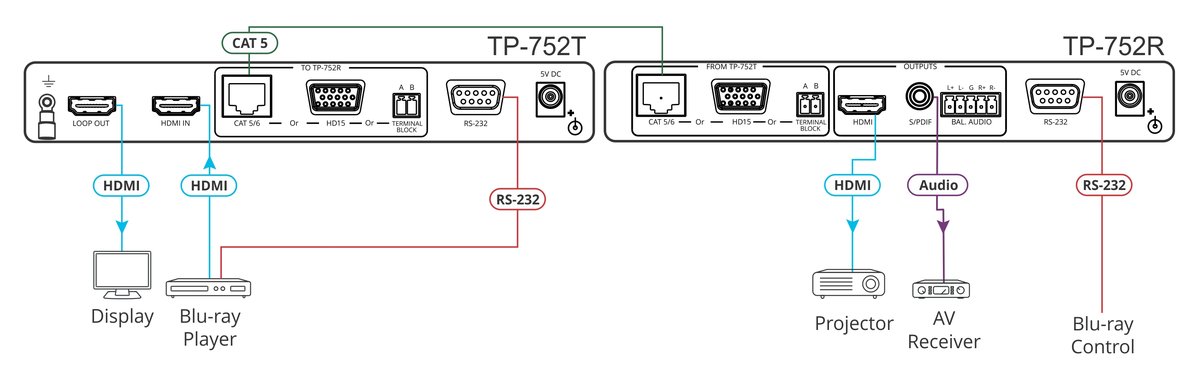

TP-752R is a high-performance receiver for extending 1080p (HD) HDMI signals over distances of up to 600m (2000ft) using any 2-wire cabling. TP-752R supports diverse cabling and connector options for typical long distance and legacy installations. High Performance Extender - Reliable HDMI signal extension over distances of up to 600m (2000ft). Audio De-embedding - The transmitted digital audio signal is extracted from the AV signal and available in both digital (S/PDIF) and analog format, as well as being available on the HDMI output. Convenient Connector Options - Connect via one of 3 options: Terminal block (for common 2-wire connection), RJ-45 (CAT) (for typical long-distance applications), or VGA (to enable using HDMI over legacy VGA infrastructure). Bidirectional RS-232 Extension - Enabling device control, such as control of the display from the source end, and control of a source from the display end. True Plug-and-Play - No setup or user configuration is required. Easy Installation - Compact MegaTOOLS fan-less enclosure for surface mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.
| 1 2-wire extra range HD signal on any one of the following connectors | RJ-45, 15-pin HD, or 2-pin terminal block |
|---|---|
| 1 HDMI | On a female HDMI connector |
| 1 S/PDIF | On an RCA connector |
| 1 Balanced Stereo Audio | On a 5-pin terminal block connector |
| RS-232 | On a 9-pin D-sub connector for serial link extension |
| Max Resolution | 1080p60 |
| Compliance | HDCP 1.4 |
| Support | 2.0 channel PCM, 48kHz/44.1kHz sampling rate |
| Bandwidth | 12kHz |
| Analog THD + NOISE | 0.08% @1kHz at nominal level |
| Full HD (1080p @60Hz) | Up to 600m (2000ft) |
| Baud Rate | 2400 to 115200, selectable |
| Indicator | ON LED |
| Controls | Baud rate DIP-switches, Reset button |
| Source | 5.2V DC, 4A |
| Consumption | 5V DC, 1.5A |
| Operating Temperature | 0 deg to +40C (32 deg to 104F) |
| Storage Temperature | -40 deg to +70C (-40 deg to 158F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Safety | CE, UL |
| Environmental | RoHs, WEEE |
| Size | Mega Tool |
| Type | Aluminum |
| Cooling | Convection Ventilation |
