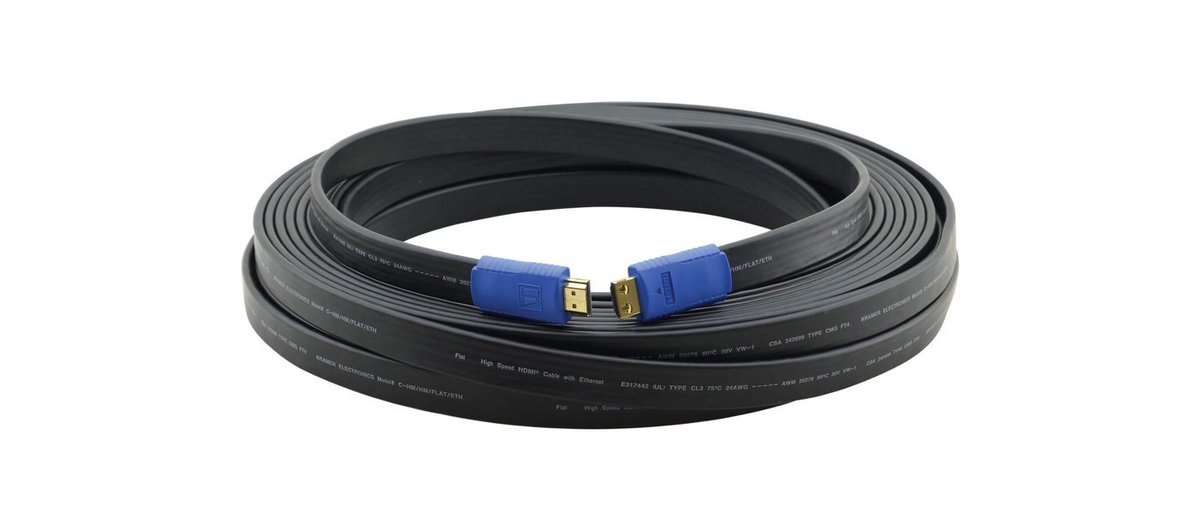

Kramer C-HM/HM/FLAT/ETH Flat High-Speed HDMI Cable with Ethernet

Kramer's C-HM/HM/FLAT/ETH flat high-speed HDMI cable with Ethernet is designed for "invisible" and long distance installations. It routes through the wall, under the carpet, around corners and behind the entertainment system with ease. The flat design of the cable renders it unobtrusive. It supports resolutions up to 4K@60Hz (4:4:4). Quality Construction - Constructed from flexible flat cable structured to have less crosstalk and interference than with traditional round HDMI cables. Max. Resolution - 4K@60Hz (4:4:4). High-Quality Connectors - 24K gold-plated connectors resist corrosion, cut down on impedance and offer the best possible connectivity. K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection. Varied Selection of Lengths - Available in versions of 0.9 to 22.9m (3, 6, 10, 15, 25, 35, 50 and 75ft).

Max Resolution for 3-10ft (0.9-3.0m) lengths4K60 (4:4:4)
Max Resolution for 15-35ft (4.6-10.6m) lengths4K60 (4:2:0)
Max Resolution for 50ft (15.2m) lengths1080p60Hz 12-bit
Max Resolution for 75ft (22.9m) lengths1080p
Max Data Rate for 3-10ft (0.9-3.0m) lengths18Gbps
Max Data Rate for 15-35ft (4.6-10.6m) lengths8.91Gbps (2.97Gbps per channel)
Max Data Rate for 50ft (15.2m) lengths7.78Gbps (2.6Gbps per channel)
Max Data Rate for 75ft (22.9m) lengths4.95Gbps (1.65Gbps per channel)
HDMI ComplianceHDCP 2.2, EDID, CEC, HDR-10, HLG, Dolby Vision
Supported Audio FormatsDolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD
Connectors2 Male HDMI Type A, 24K gold-plated K-Lock connector
Bending radius for 3-10ft (0.9-3.0m) lengths126mm
Bending radius for 15-35ft(4.6-10.6m) lengths168mm
Bending radius for 50-75ft(15.2-22.9m) lengths183mm
Diameter for 3-10ft (0.9-3.0m) lengths28AWG(1/0.32)
Diameter for 15-35ft(4.6-10.6m) lengths26AWG(1/0.42)
Diameter for 50-75ft(15.2-22.9m) lengths24AWG (1/0.52)
MaterialBare Copper
ColorBlack
Temperature Rating80C
Voltage Rating30V
Conductor Resistancefor 28AWG237 ohm/KM MAX. at 20
Conductor Resistancefor 26AWG148ohm/KM MAX. at 20
Conductor Resistancefor 24AWG93.2 ohm/KM MAX. at 20
