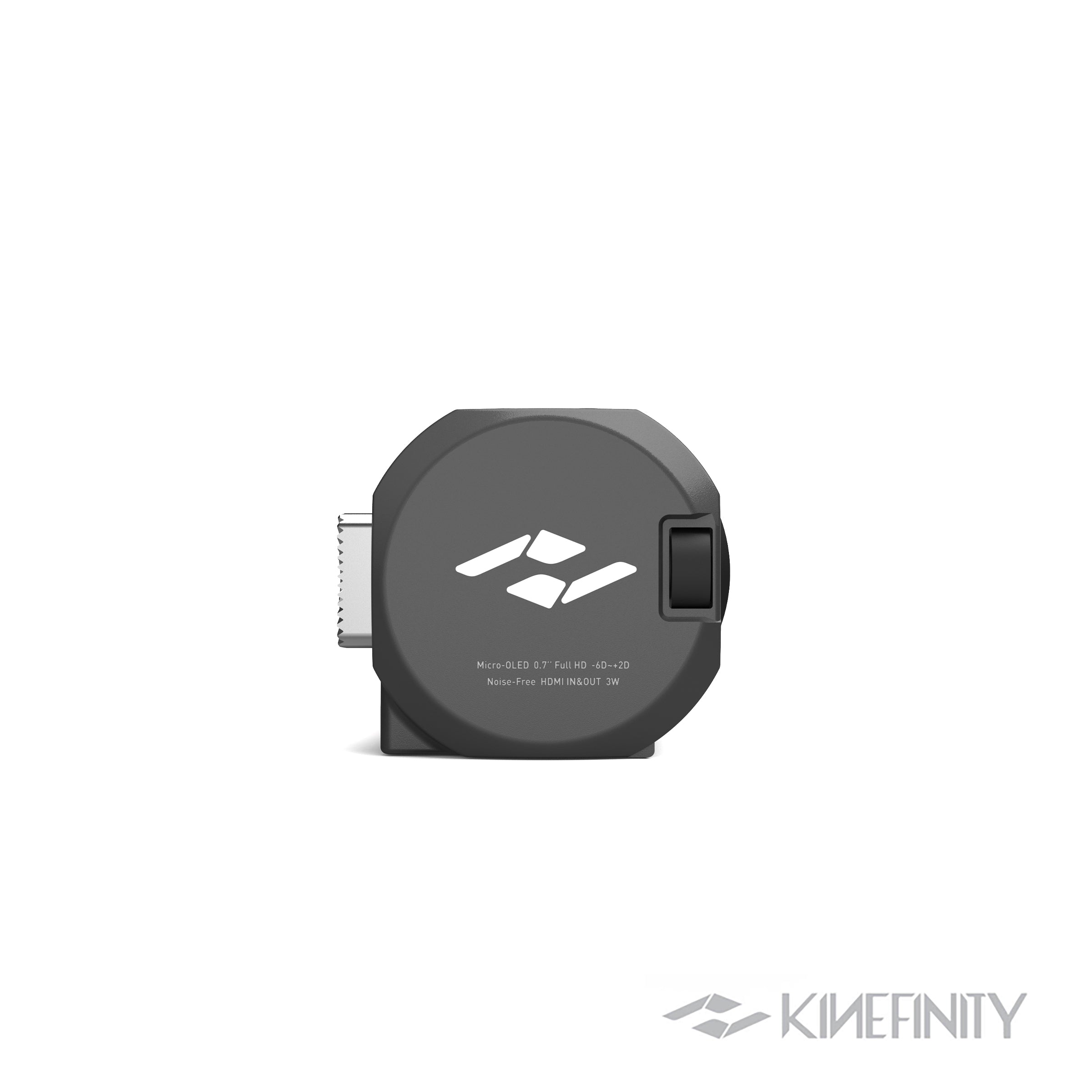

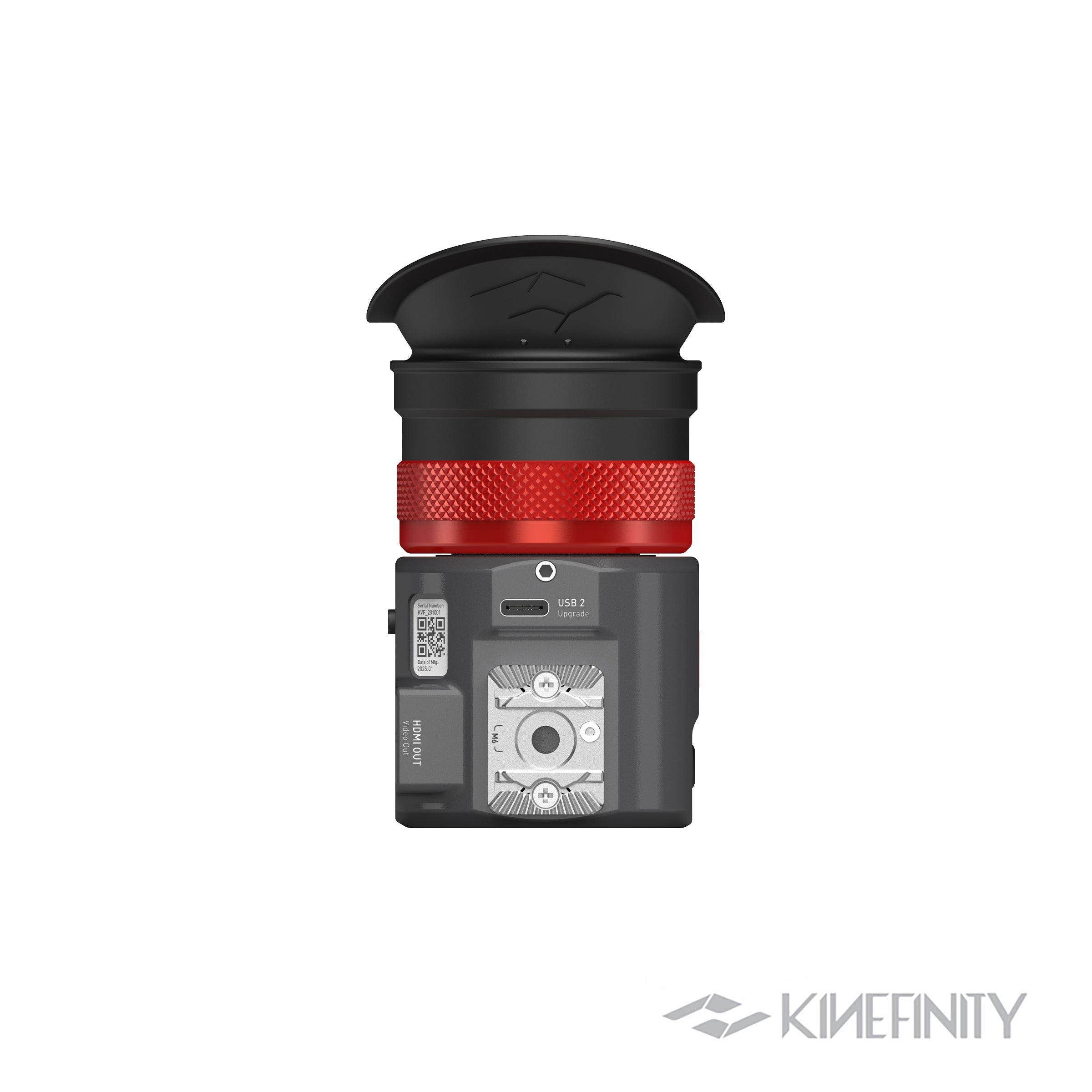

Kinefinity EAGLE HDMI e-Viewfinder

The EAGLE HDMI e-Viewfinder takes an HDMI feed into a 0.71-inch Micro-OLED panel at 1920x1080 with a 10,000:1 contrast ratio, giving a bright, high-contrast eyepiece view with built-in waveform, focus peaking, histogram, and false color assistive tools. HDMI Type-A loop-out passes the signal on to a second monitor, and it runs on USB-C power.

Because it works off standard HDMI, it isn't limited to Kinefinity bodies, it pairs with any camera that outputs an HDMI feed. It ships as the viewfinder on its own here; the Core Kit and Pro Kit bundle it with mounting and cabling accessories.

PanelMicro-OLED
Resolution1920 x 1080 (RGBx3)
Display Size0.71" / 1.8cm
Contrast Ratio10,000:1
Input / OutputHDMI in, HDMI Type-A loop-out
PowerUSB-C
Assistive ToolsWaveform, focus peaking, histogram, false color
