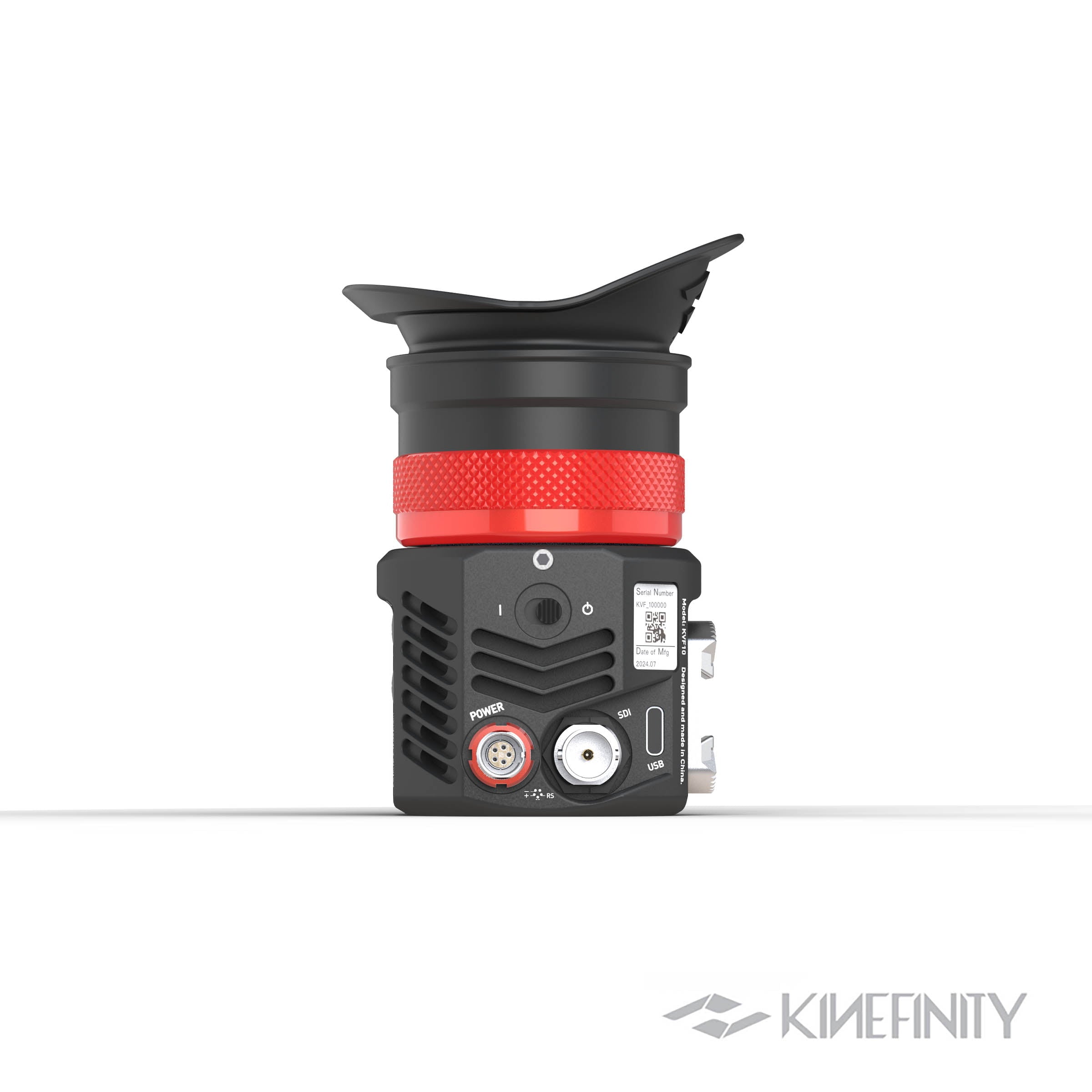

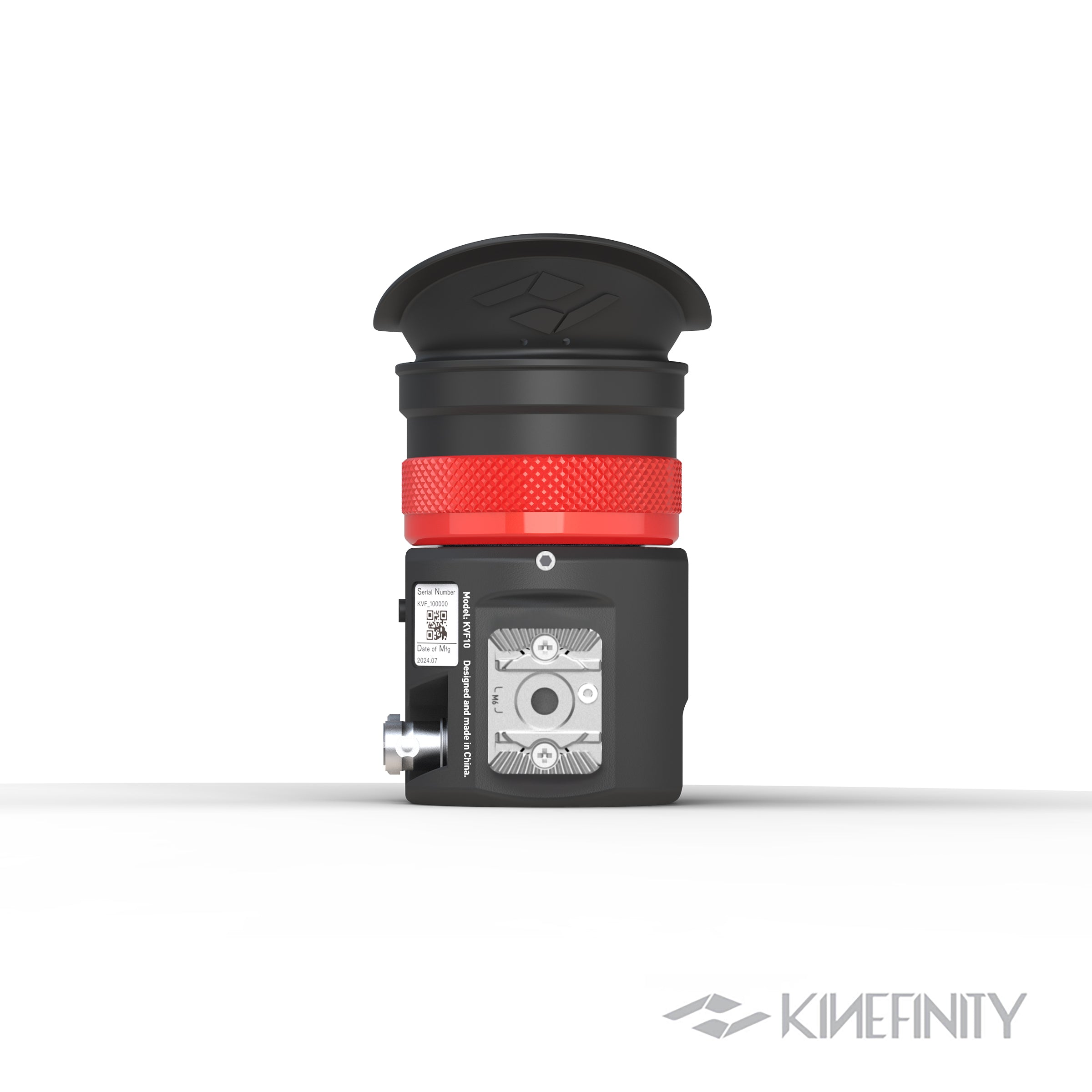

Kinefinity EAGLE SDI e-Viewfinder

The EAGLE SDI e-Viewfinder takes an SDI feed from any cine camera into a 0.71-inch Micro-OLED panel at 1920x1080, giving a noise-free, zero-delay eyepiece view with a 10,000:1 contrast ratio and 33-degree field of view. Because it works off standard SDI, it isn't limited to Kinefinity bodies, it pairs with any camera that outputs SDI.

It ships as the viewfinder on its own here; the Core KIT and Pro KIT bundle it with mounting and cabling accessories for a complete setup out of the box. Ultra-lightweight construction keeps it from adding meaningful weight to a cage build.

PanelMicro-OLED
Resolution1920 x 1080 (RGBx3)
Display Size0.71" / 1.8cm
Contrast Ratio10,000:1
Field of View33 degrees
Color Processing10-bit processing (8-bit panel)
InputSDI, compatible with any cine camera
