JVC KM-HD6 Switcher, JVC PTZ Bundle Price
This is the standard KM-HD6 six-input HD switcher offered as a PTZ bundle: buy it together with two or more JVC Professional PTZ cameras and it comes in below its usual price. The hardware is identical to the standalone KM-HD6, so the savings are purely a package discount for operators building a small multi-camera kit around JVC robotic cameras.

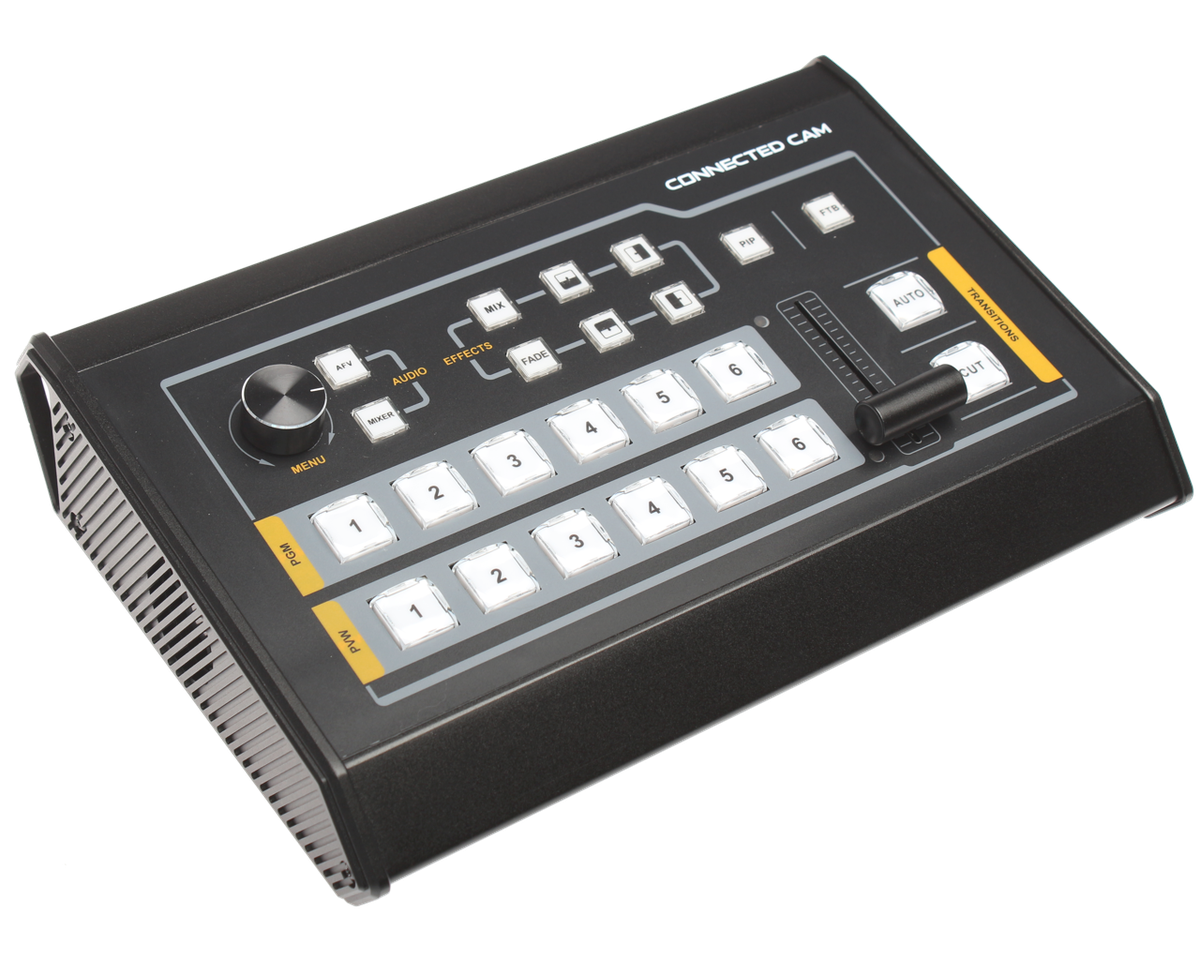

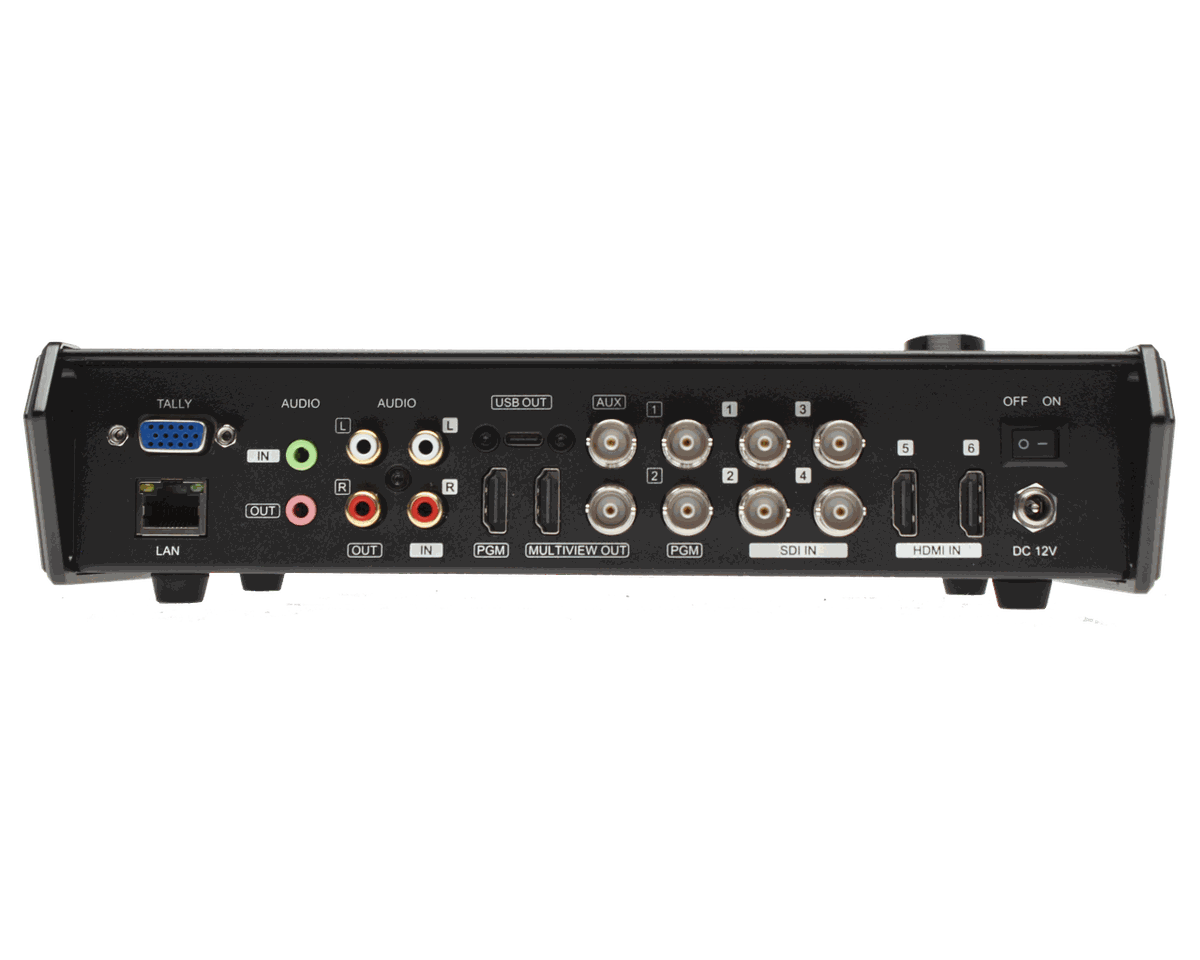

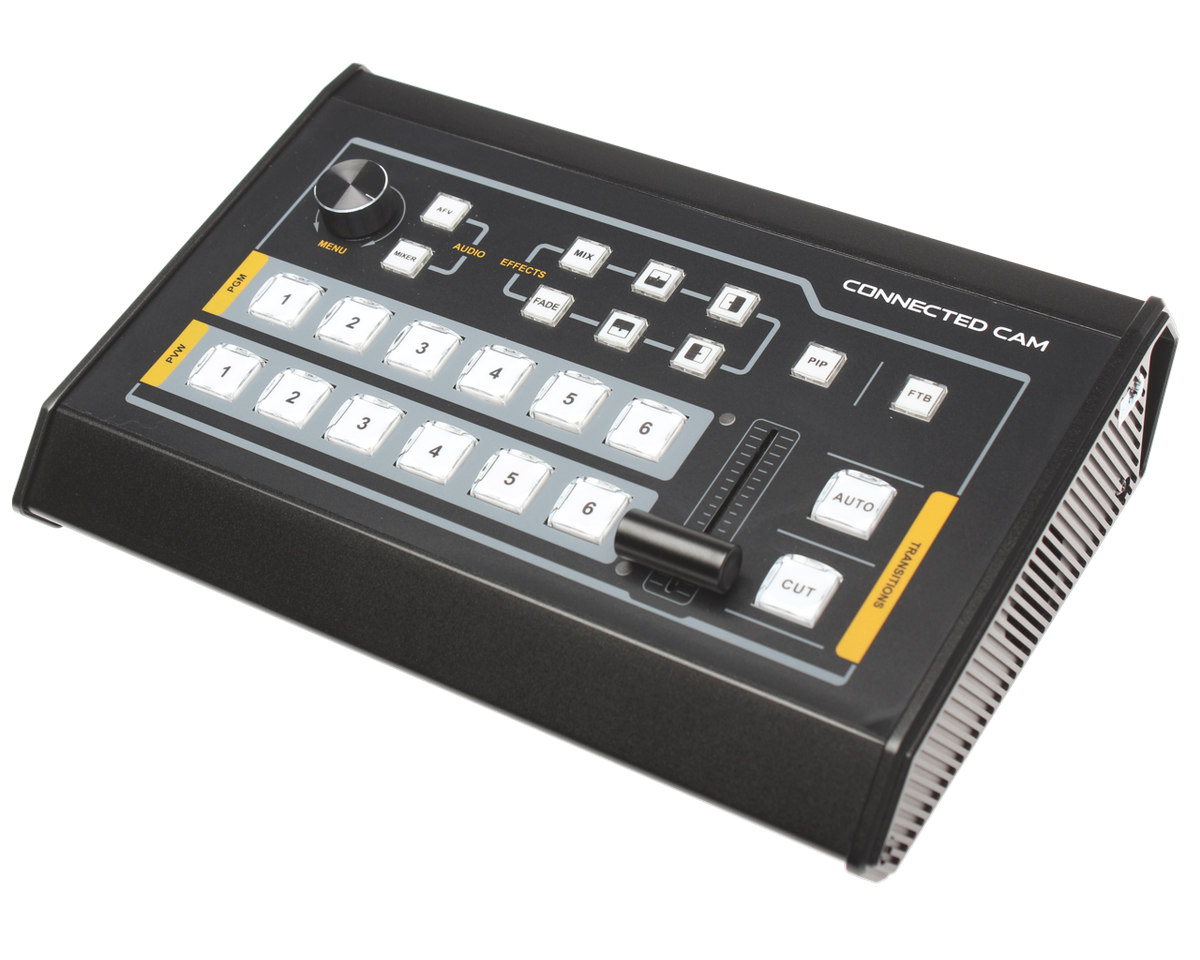

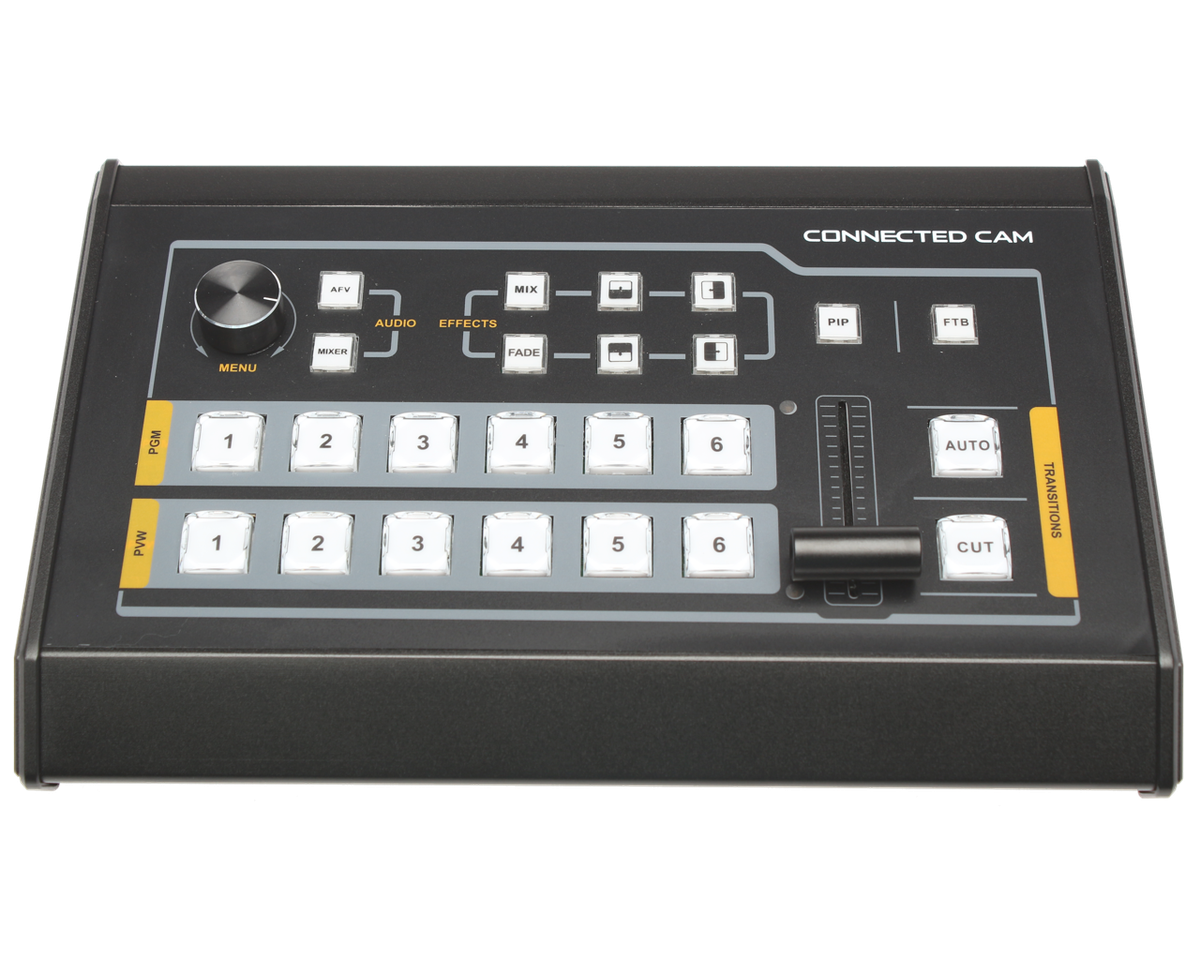

The switcher itself takes four 3G/HD/SD-SDI and two HDMI inputs up to 1080p60, with a physical T-bar, dial, and buttons driving mix, fade, and wipe transitions plus PiP and PoP windows. Program streams out over USB-C as a UVC/UAC device for Zoom, Teams, YouTube, or Facebook Live, and program, aux, and multiview feeds are available on SDI and HDMI. Onboard audio adds AFV, a mixer, and 3.5mm and RCA analog in and out.
| Bundle | KM-HD6 with two or more JVC PTZ cameras |
|---|---|
| Inputs | 4x 3G/HD/SD-SDI, 2x HDMI |
| Program Outputs | 2x SDI, 1x HDMI, plus SDI aux |
| Multiview | 1x HDMI, 1x SDI |
| Max Format | 1080p60 |
| USB Streaming | USB-C UVC/UAC with embedded audio |
| Effects | Mix, fade, wipe; PiP and PoP |
| Control | T-bar, dial, push buttons |
