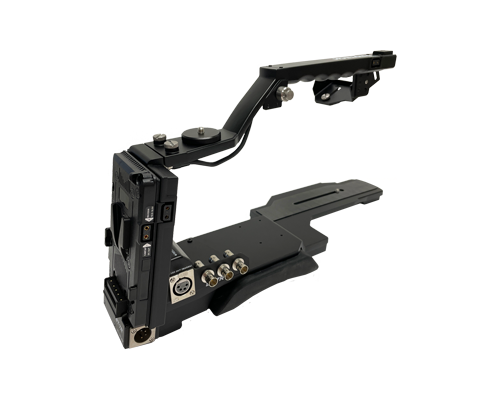

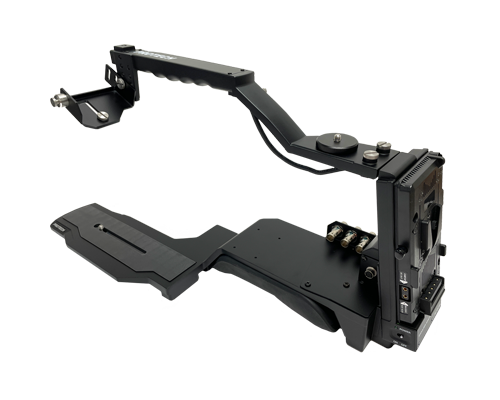

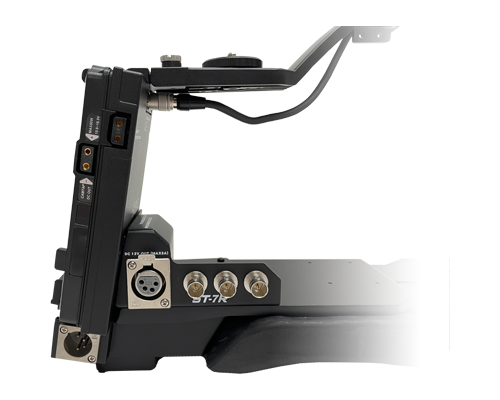

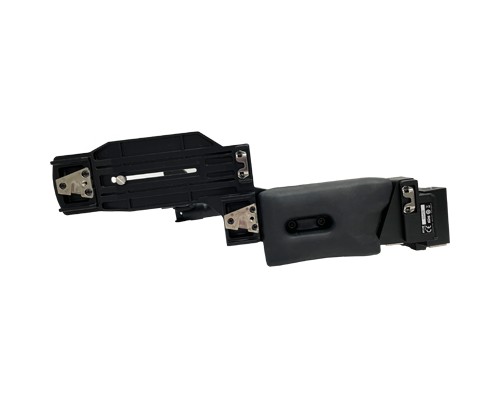

IDX Protech ST-7R Shoulder Adapter Rig
The ST-7R turns most small camcorders into shoulder-mount cameras. It carries the body forward of the shoulder pad and carries the battery behind it, which is the balance that makes a long handheld day possible.

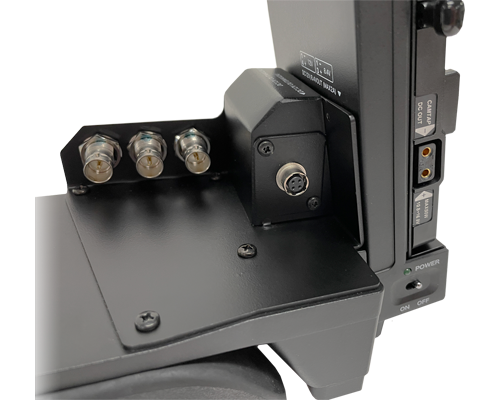

Power comes in on a 4-pin XLR or the V-mount plate, and goes out on a 4-pin XLR, four D-taps and a mini 4-pin at 12V or 8.4V, with three BNC connectors for signal. It fits Canon, JVC Kenwood, Panasonic and Sony handheld camcorders, with some exceptions. Rated 32 to 104 F operating, -4 to 140 F storage.
| Compatibility | Canon, JVC Kenwood, Panasonic, Sony handheld camcorders (with some exceptions) |
|---|---|
| Input | DC In: (1) 4-pin XLR, V-mount plate |
| Output | DC Out: (1) 4-pin XLR, (4) D-Tap, (1) Mini 4-pin (12V/8.4V) |
| Additional Connectors | (3) BNC |
| Operating Temperature | 32°F ~ 104°F |
| Storage Temperature | -4°F ~ 140°F |
| Type | Shoulder adapter rig |
