IDX A-Vmicro2PD Hot-Swap V-Mount Plate for Imicro Batteries

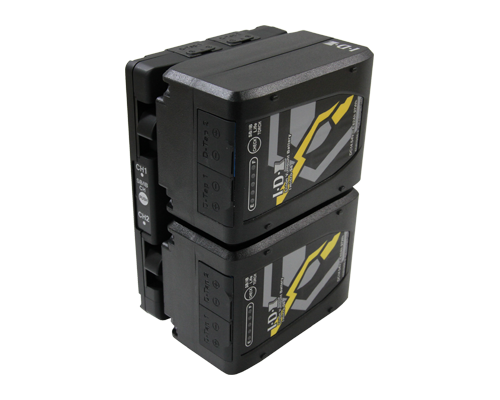

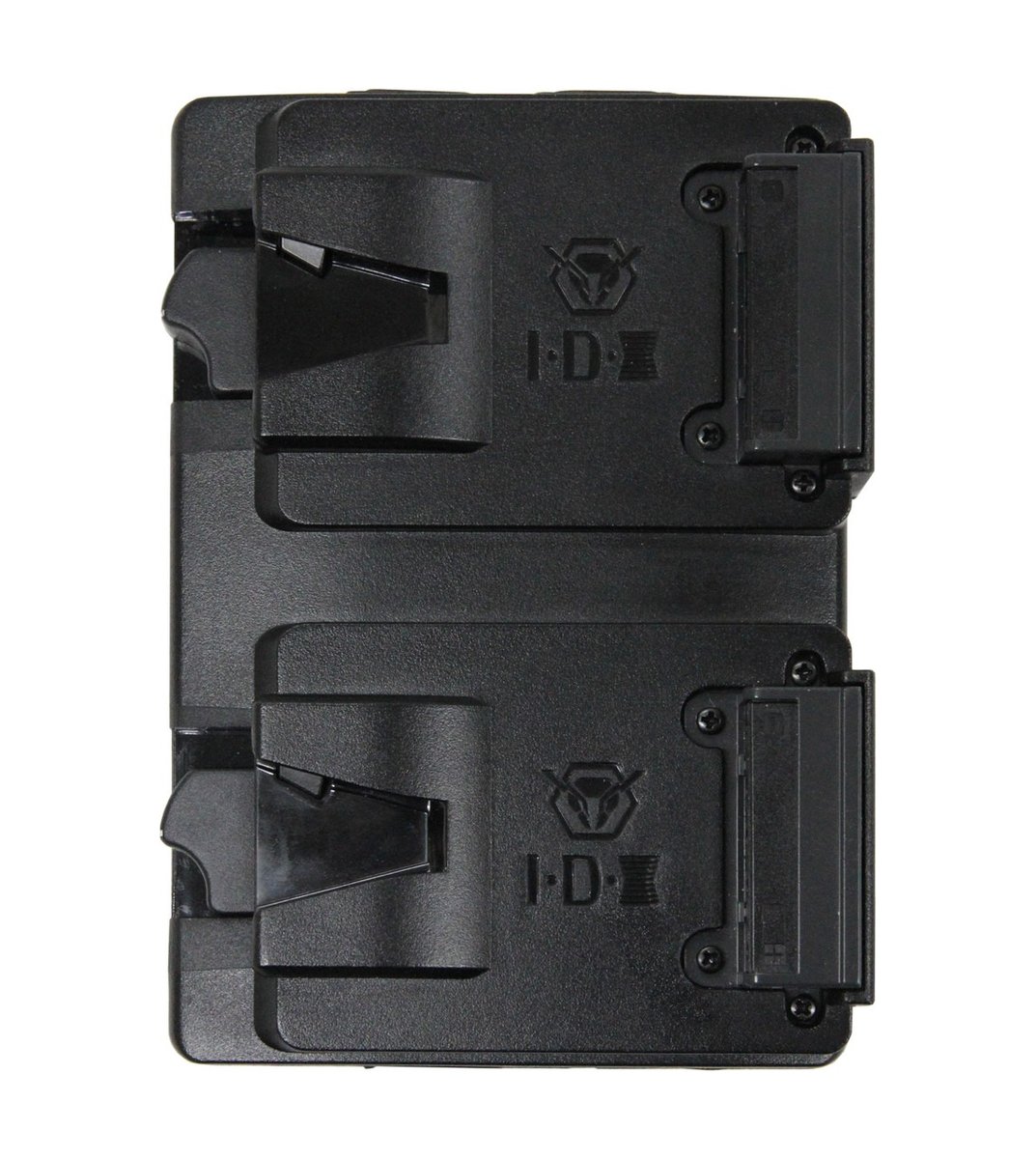

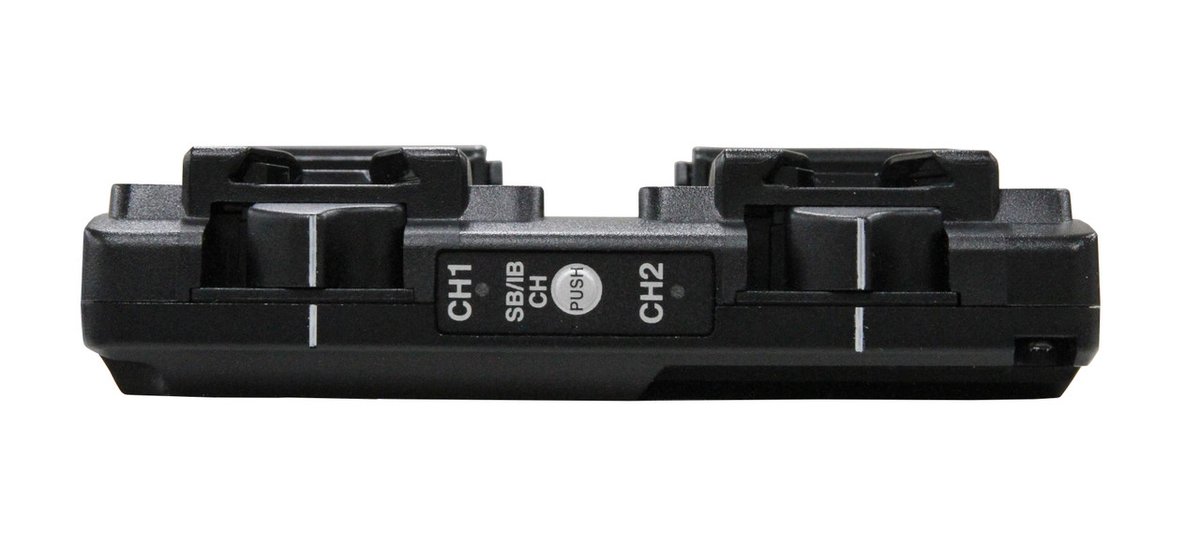

The A-Vmicro2PD holds two Imicro batteries and discharges them one at a time. When the active pack runs down it switches to the other on its own, so the rig never loses power during a battery change; you can also select the discharging pack by hand.

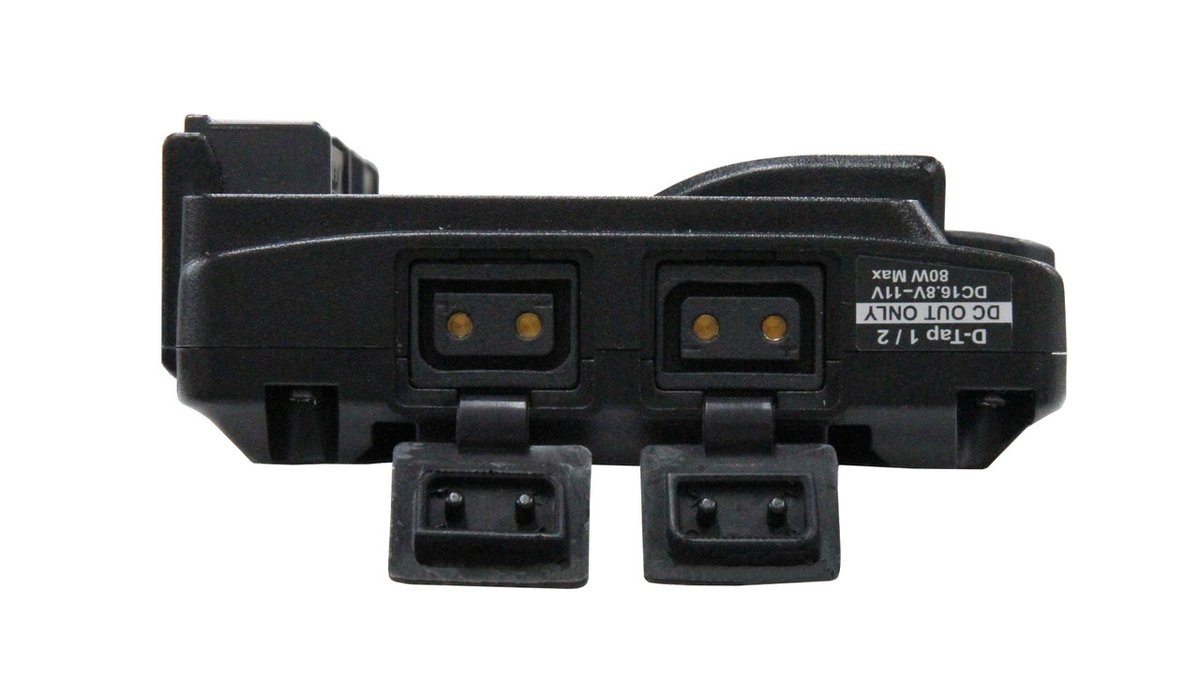

Two D-taps pass battery voltage at up to 80W, and a USB-C PD port delivers 5V at up to 2.3A for accessories that expect USB. Both the battery terminal and the main connector are rated to 154W, from 16.8V at 9.2A down to 11V at 14A. Four M3 x 10 double SEMS screws are included.

Output Connectors	(2) D-Tap, (1) USB-C PD
D-Tap	Battery through voltage, 80W max
USB-C	DC 5V / 2.3A max
Compatibility	IDX Imicro Battery
Battery Connection Terminal Rating	154W max (16.8V/ 9.2A~11V/14A)
Main Connector Rating	154W max (16.8V/ 9.2A~11V/14A)
Ambient Temperature	Charge: 0C~40C (10C~30C recommended) Discharge: -20C~45C (10C~40C recommended)
Included Accessories	(4x) M3 x 10 Double SEMS screws
Type	Two-channel hot-swap V-mount adapter plate
