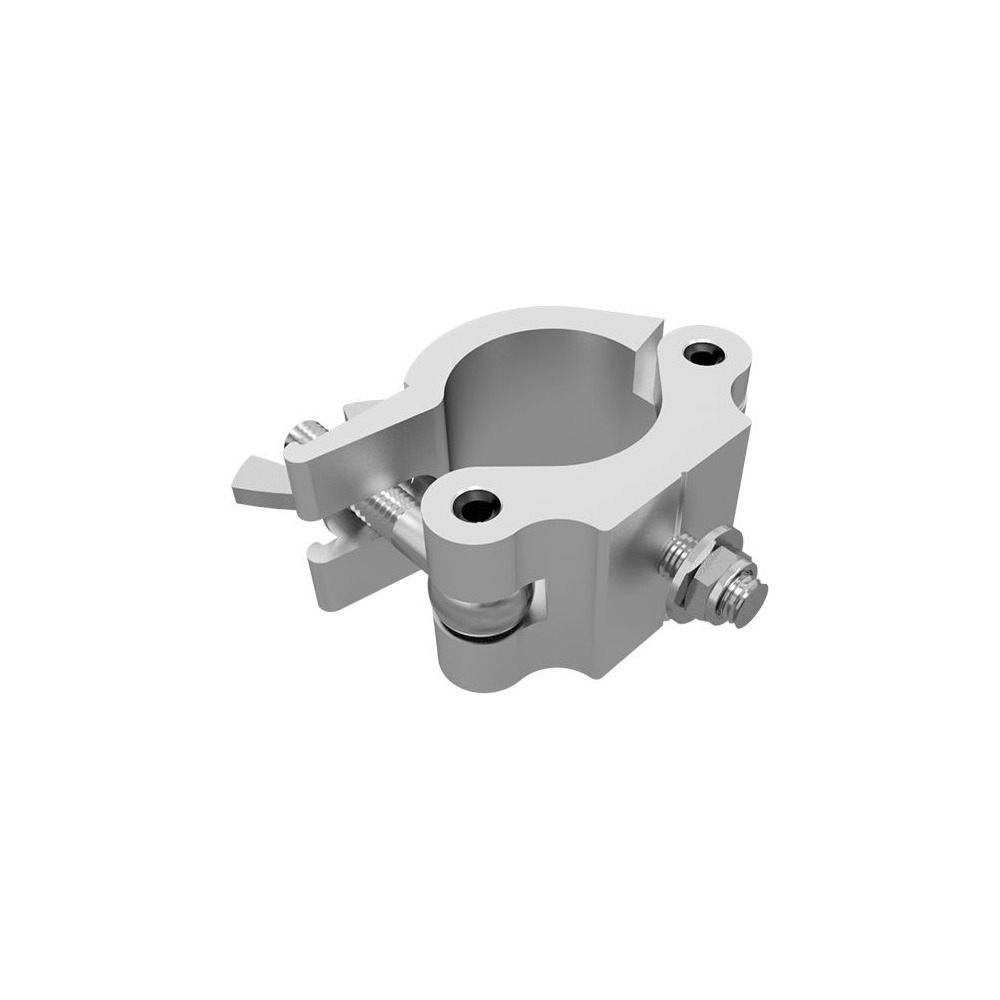

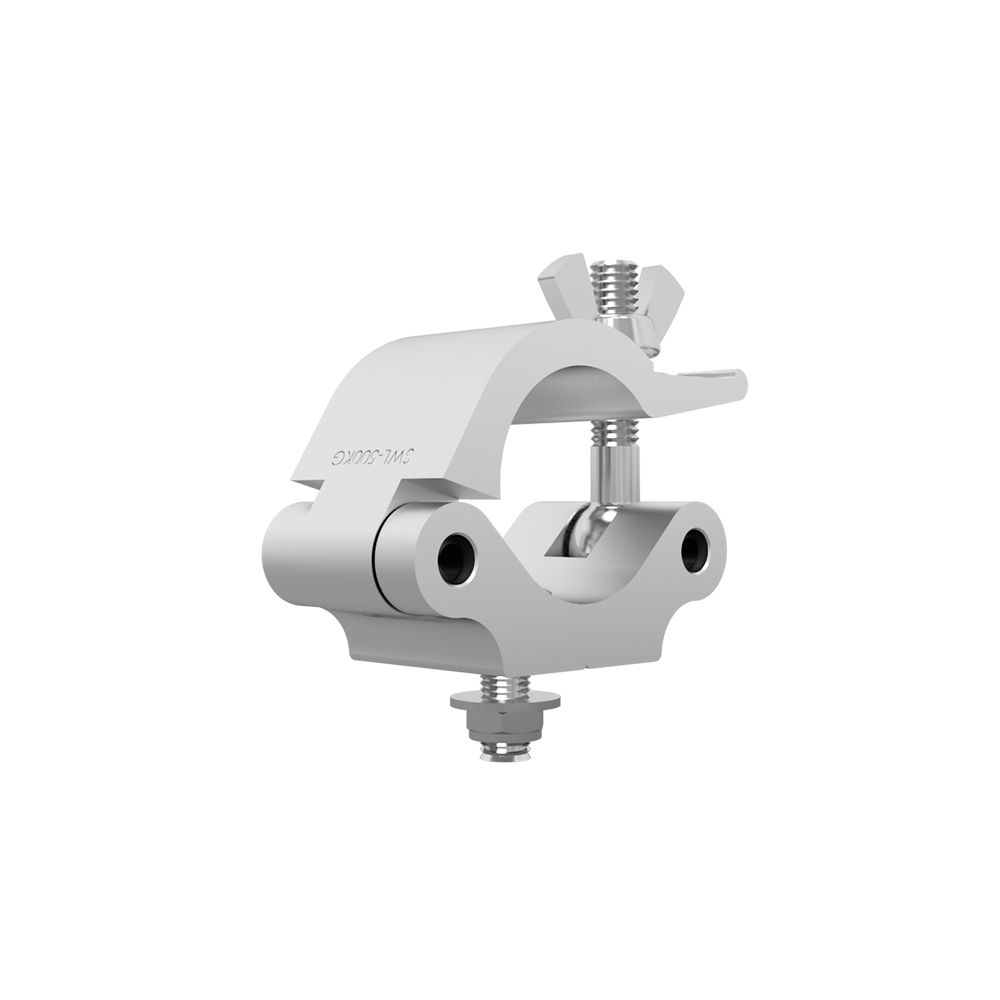

Global Truss Pro Clamp

Heavy-duty clamp for 50mm tubing. It is built for F31, F32, F33, F34 and DT44P truss.

Manufacturer part number CLM0547. Rated load capacity is 500 kg / 1100 lbs. Unit weight is 1.15 lbs.

Compatible WithF31, F32, F33, F34 and DT44P truss
Minimum Tube Size48mm
Maximum Tube Size51mm
Maximum Load500 kg / 1100 lbs
Profile Width50mm
Bolt SizeM10 x 25mm, 1.5 coarse pitch
Unit Weight1.15 lbs
Case Qty25
