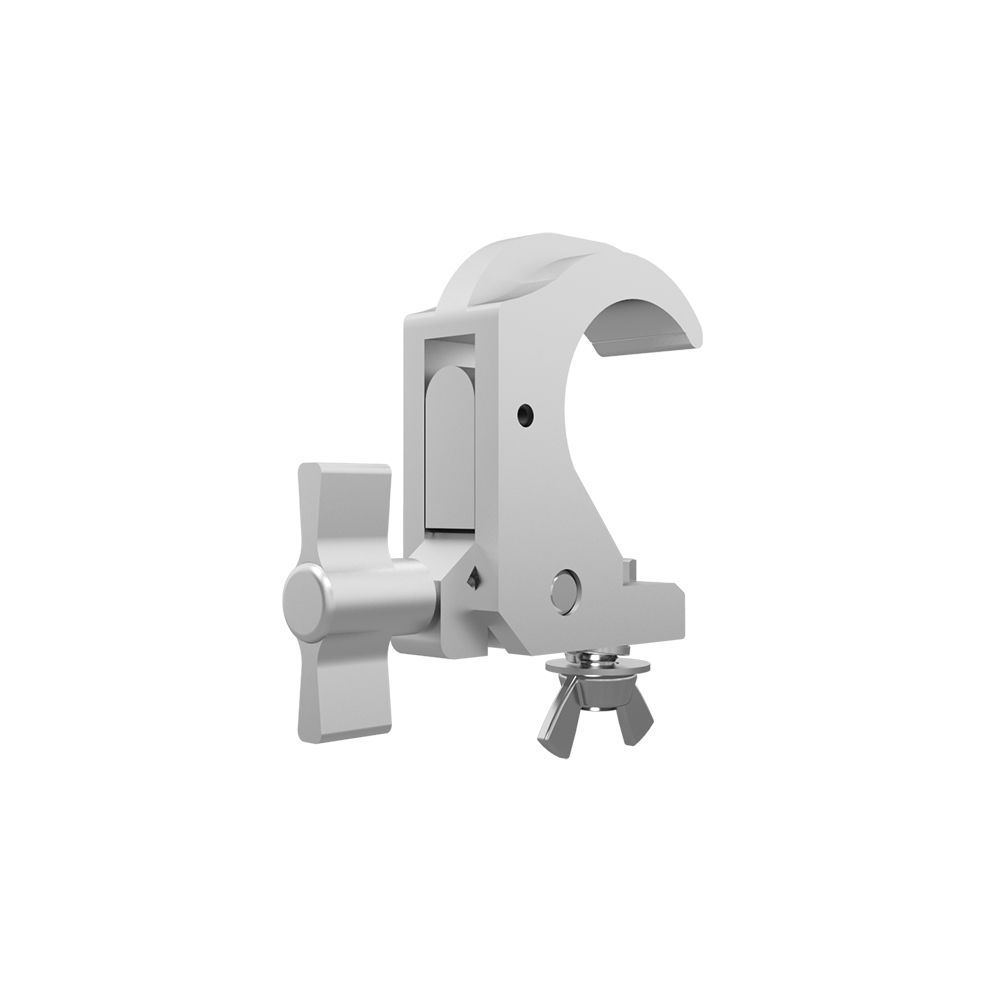

Global Truss Snap Clamp

Medium-duty low profile hook-style clamp with T-handle for 2 inch OD tube. It is built for F31, F32, F33, F34 and DT44P truss.

Manufacturer part number CLM0638. Rated load capacity is 200kg / 440 lbs. Unit weight is 0.72 lbs.

Compatible WithF31, F32, F33, F34 and DT44P truss
Minimum Tube Size48mm
Maximum Tube Size51mm
Max. Load Capacity200kg / 440 lbs
Bolt SizeM10 x 30, 1.5 coarse pitch
Unit Weight0.72 lbs
Case Qty50
Global Truss Snap Clamp
