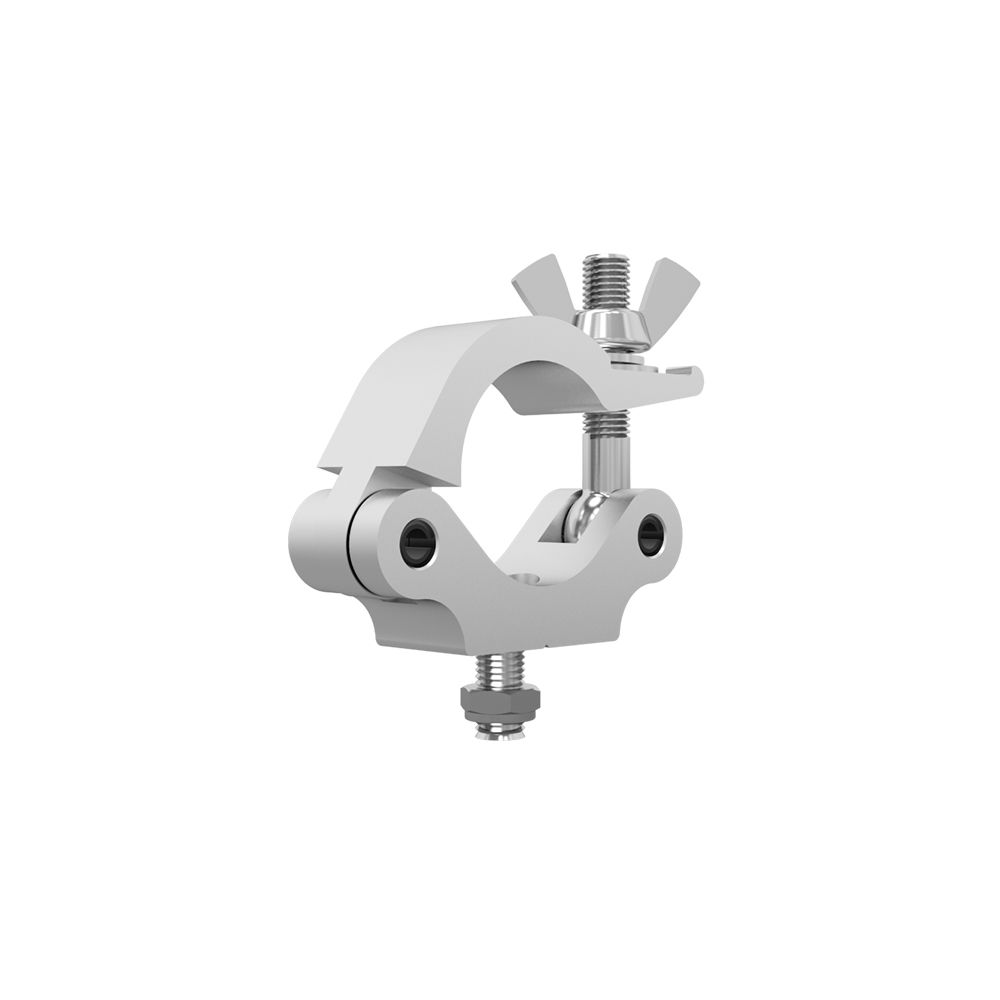

Global Truss Narrow Clamp

Medium-duty narrow clamp for 50mm tubing. It is built for F31, F32, F33, F34 and DT44P truss.

Manufacturer part number CLM0521. Rated load capacity is 200 kg / 440 lbs. Unit weight is 0.78 lbs.

Compatible WithF31, F32, F33, F34 and DT44P truss
Minimum Tube Size48mm
Maximum Tube Size51mm
Maximum Load200 kg / 440 lbs
Profile Width30mm
Bolt SizeM10 x 25mm, 1.5 coarse pitch
Unit Weight0.78 lbs
Case Qty50
