FieldCast Power Station One

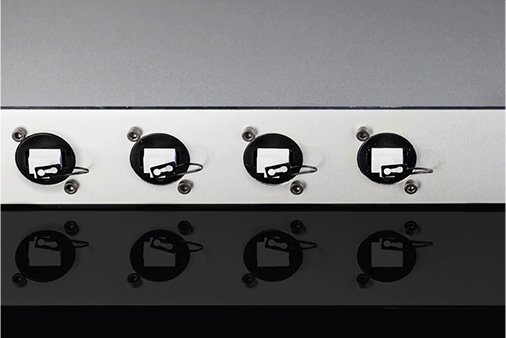

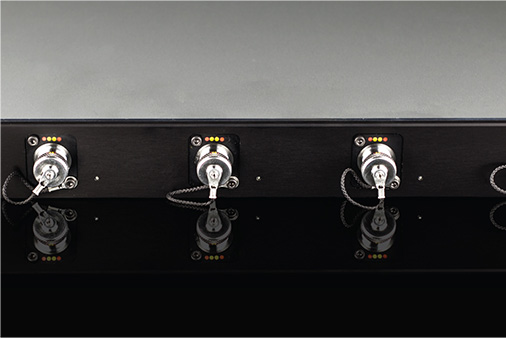

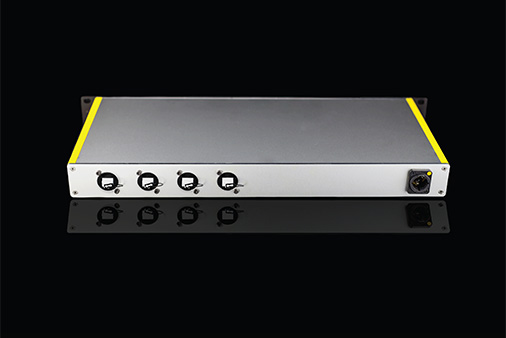

Power Station One combines the patching function of Power Panel One with a higher-capacity power supply in a single 1RU unit, for productions running cameras that need more than Power Box One's standard 150W per channel over FieldCast Hybrid cable. Four color-coded 2Core FieldCast Hybrid single-mode chassis connectors sit on the front, with four dust-capped LC Duplex connections on the back for patching into house infrastructure.

Two 36V, 350W power supplies feed the unit, with one held in redundant reserve, giving considerably more headroom than the standard Power Box One for power-hungry PTZ or studio camera setups. An optional 2Core SM Hybrid cable up to 100 meters on a drum extends from the front panel, and the whole unit weighs 2.69 kg in the standard 1RU rack footprint.
