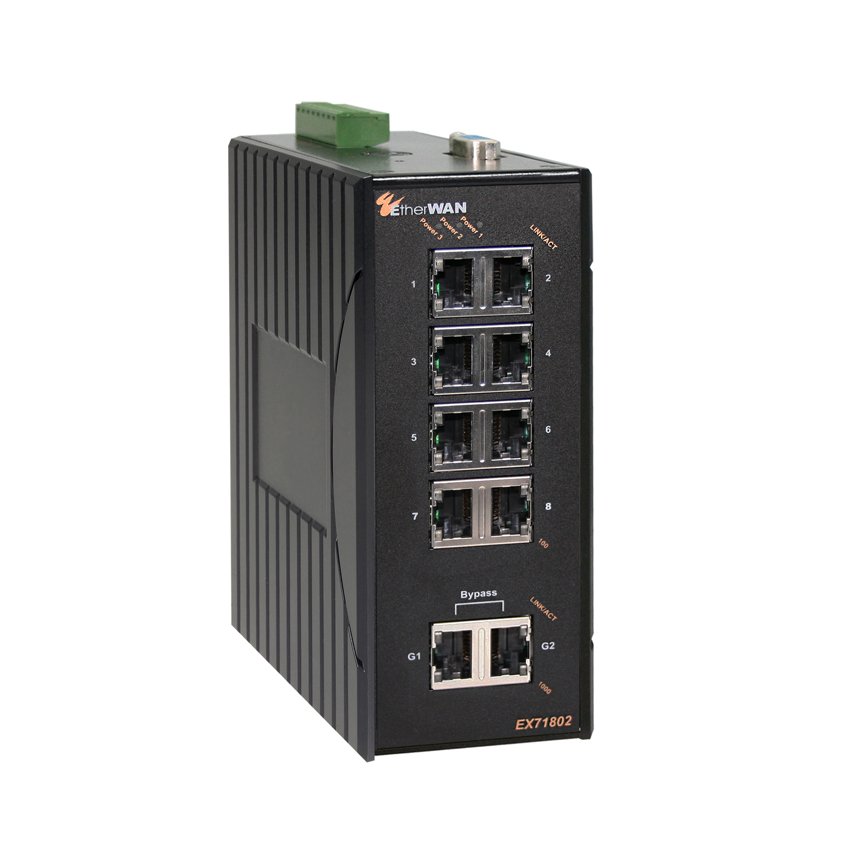

EtherWAN EX71802 8-port 10/100BASE-TX + 2-port Gigabit

The EtherWAN EX71802 is an 8-port 10/100BASE-TX + 2-port Gigabit. This part number is the 100/1000BASE SFP (DDM) configuration.

EtherWAN publishes input 12-48VDC Redundant (Terminal block), dimensions 60 x 125 x 145mm (W x D x H); 2.36" x 4.92" x 5.7". Ordered as EtherWAN part number EX71802-0VB. Specifications and photography as published by EtherWAN at etherwan.com/products/ex71000-series.

Input	12-48VDC Redundant (Terminal block)
Power Consumption	7.5W Max. 0.31A@24VDC
Dimensions	60 x 125 x 145mm (W x D x H); 2.36" x 4.92" x 5.7"
Weight	1.05kg
Safety	UL 61010; ISA 12.12.01
Processing Type	Store-and-Forward; Auto-negotiation; Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control; Auto MDI/MDIX
Auto-negotiation for port speed and duplex	Flow Control; IEEE 802.3x full duplex mode; Back-Pressure half duplex mode
