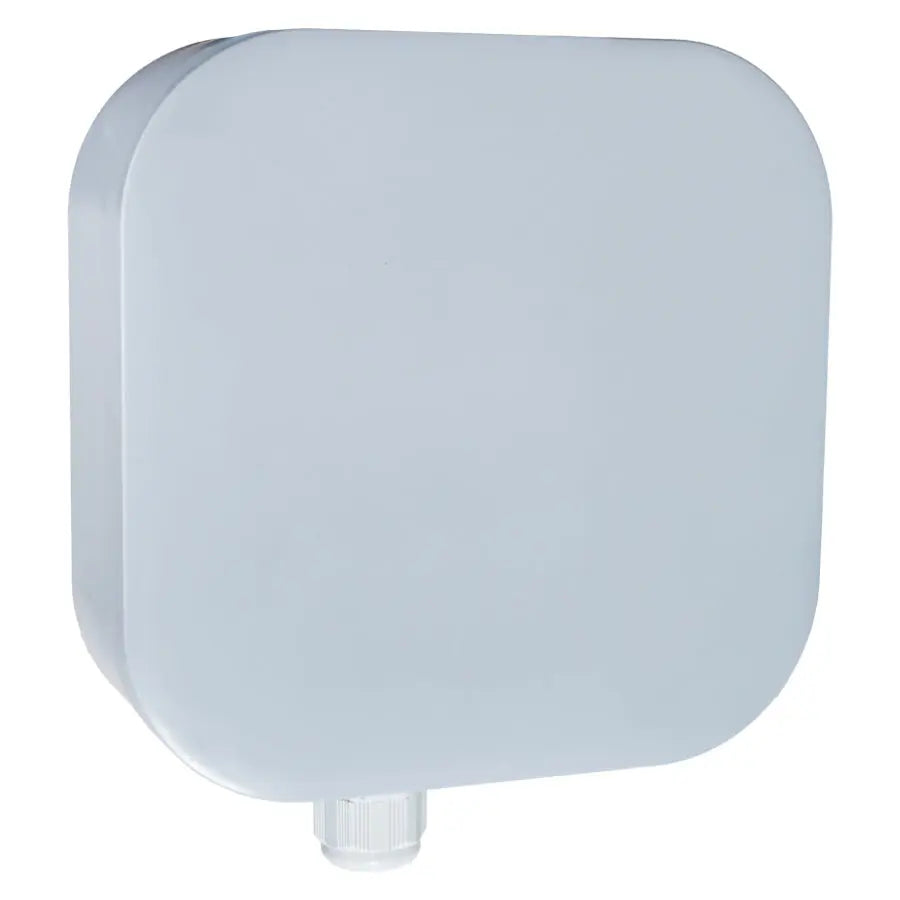

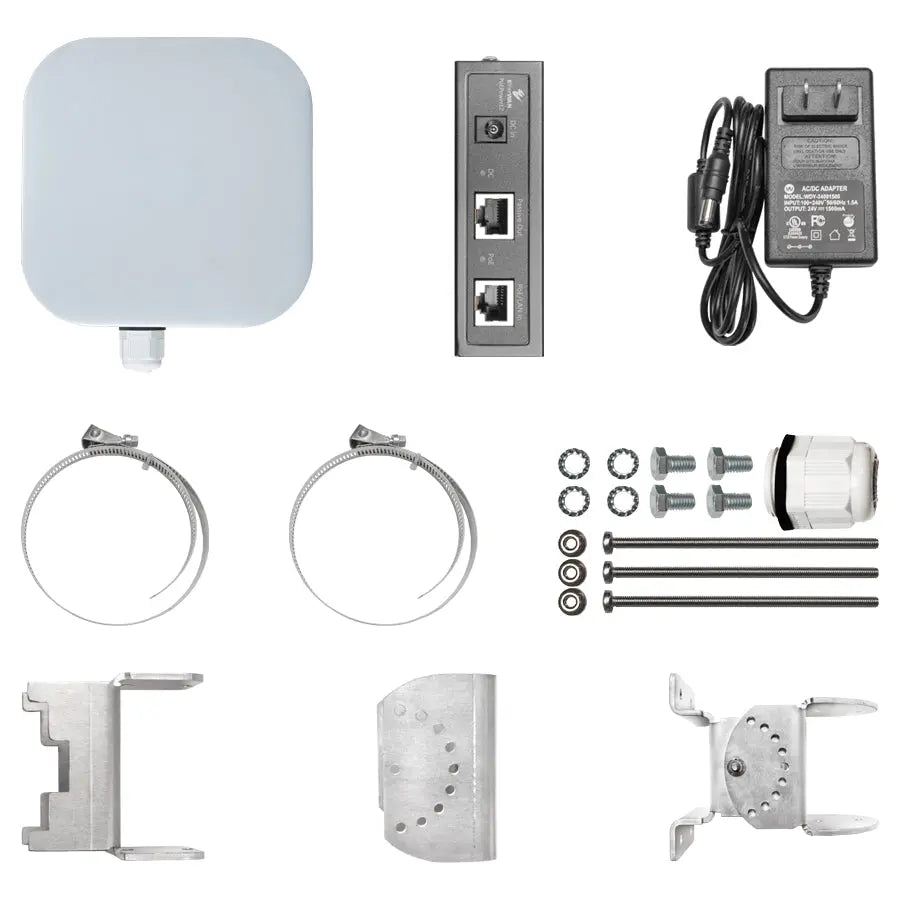

EtherWAN EasyLink Pro MP Series 2400 Mbps Preconfigured Multipoint IP67 Wireless Bridge Kit
EtherWAN EasyLink Pro MP Series 2400 Mbps Preconfigured Multipoint IP67 Wireless Bridge Kit carries a link across ground you cannot trench. Port count and media are listed as Primary Node: 10/100/1000BASE-T Passive PoE; Auxiliary Node: 10/100/1000BASE-T. Operating temperature is rated at -40 to 75 deg C (-40 to 167 deg F). The housing is uv protected polystyrene case.
This page carries the 3 orderable part numbers in the family; pick the one you need from the selector and the price and SKU follow it. The models differ by the options listed on each variant. Installation is pole/wall. Specifications above are taken from the EtherWAN datasheet for this family.
| Ethernet | Primary Node: 10/100/1000BASE-T Passive PoE | Auxiliary Node: 10/100/1000BASE-T |
|---|---|
| Primary Node | Dimensions 270 x 565 x 76mm (W x H x D) | 10.63" x 22.25" x 3" |
| Weight (shipping) | 6.2lbs (2.81kg) |
| Installation Type | Pole/Wall |
| Casing Material | UV Protected Polystyrene case |
| Auxiliary Node | Dimensions 185 x 185 x 63.5mm (W x H x D) | 7.28" x 7.28" x 2.5" |
| Operating Temp. | -40 to 75 deg C (-40 to 167 deg F) |
| Storage Temp. | -45 to 85 deg C (-49 to 185 deg F) |
