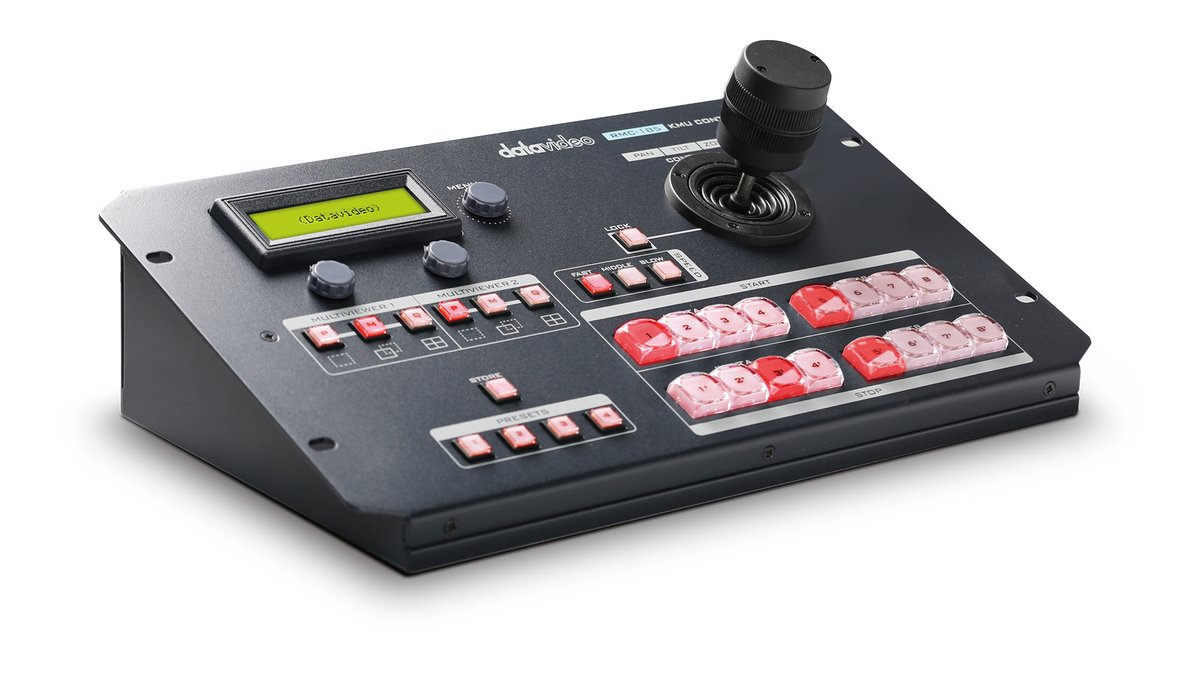

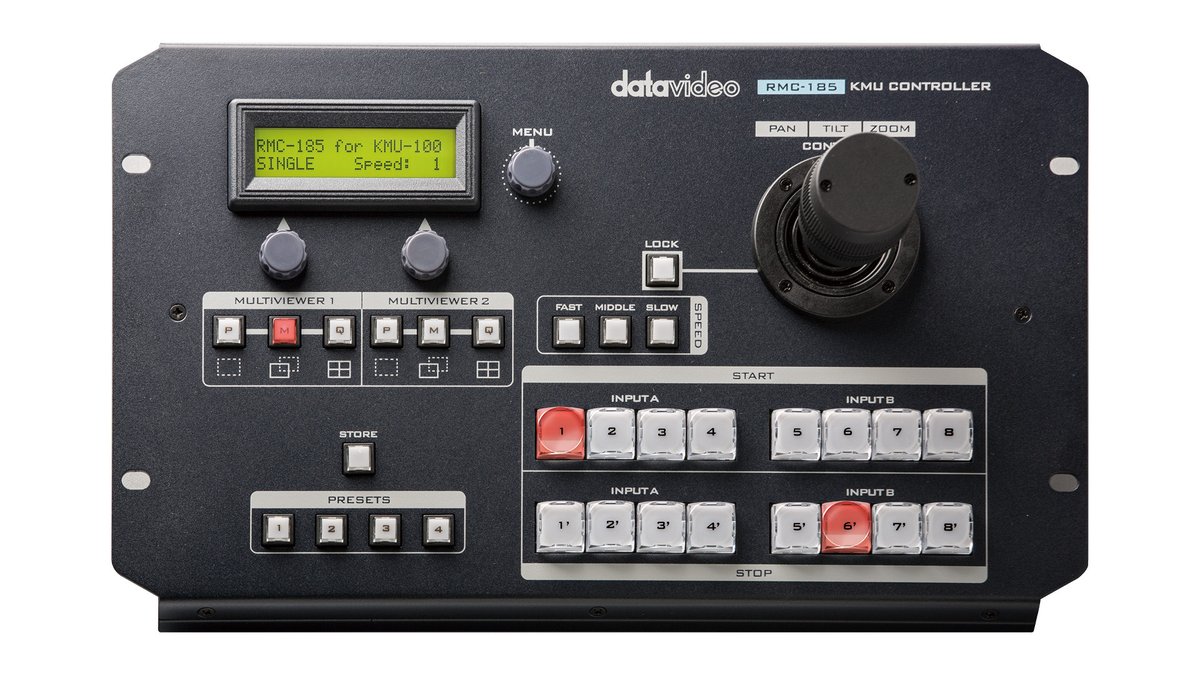

Datavideo RMC-185 KMU Controller

The RMC-185 is the hardware surface for a Datavideo KMU multicamera processor. A joystick sets pan, tilt and zoom on user-defined windows inside a single 4K signal, and the button row switches between eight of those cutouts or the camera input itself, which is how one 4K camera covers a multi-angle shoot.

It is a small panel at 310 x 130 x 170 mm and 1.5 kg, powered from a 12V 0.5A supply, with firmware updates over USB. The box includes the mains adaptor and a D-Sub 9-pin to RJ-45 control cable.

Function	KMU multicamera processor control panel
Control	Joystick with pan, tilt and zoom; 8 cutout selection buttons
Firmware Upgrade	USB
Power	DC 12V 0.5A
Dimensions (W x H x D)	310 x 130 x 170 mm
Net Weight	1.5 kg
Operating Temperature	0 to 40 C
In the Box	RMC-185 main unit, DC 12V adaptor, D-Sub 9-pin to RJ-45 cable
