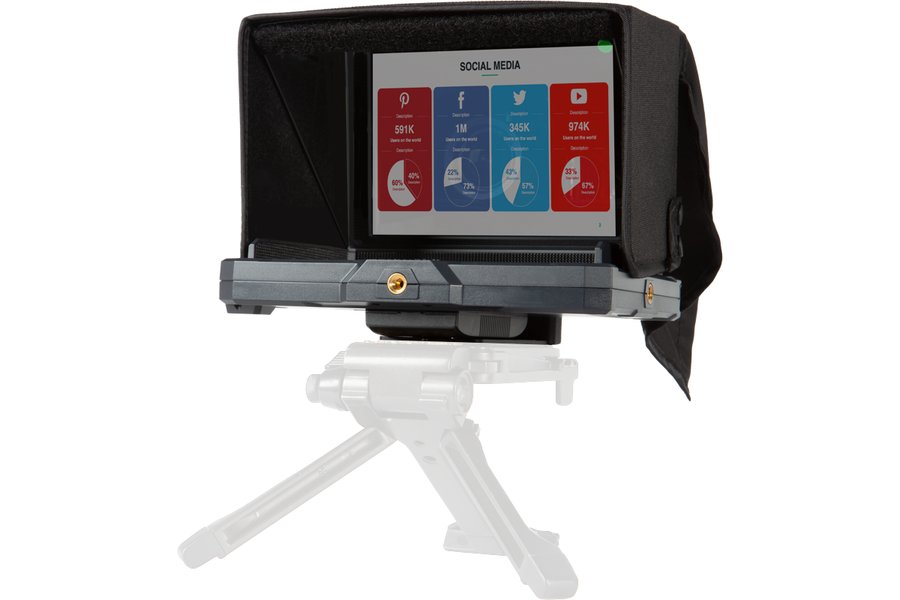

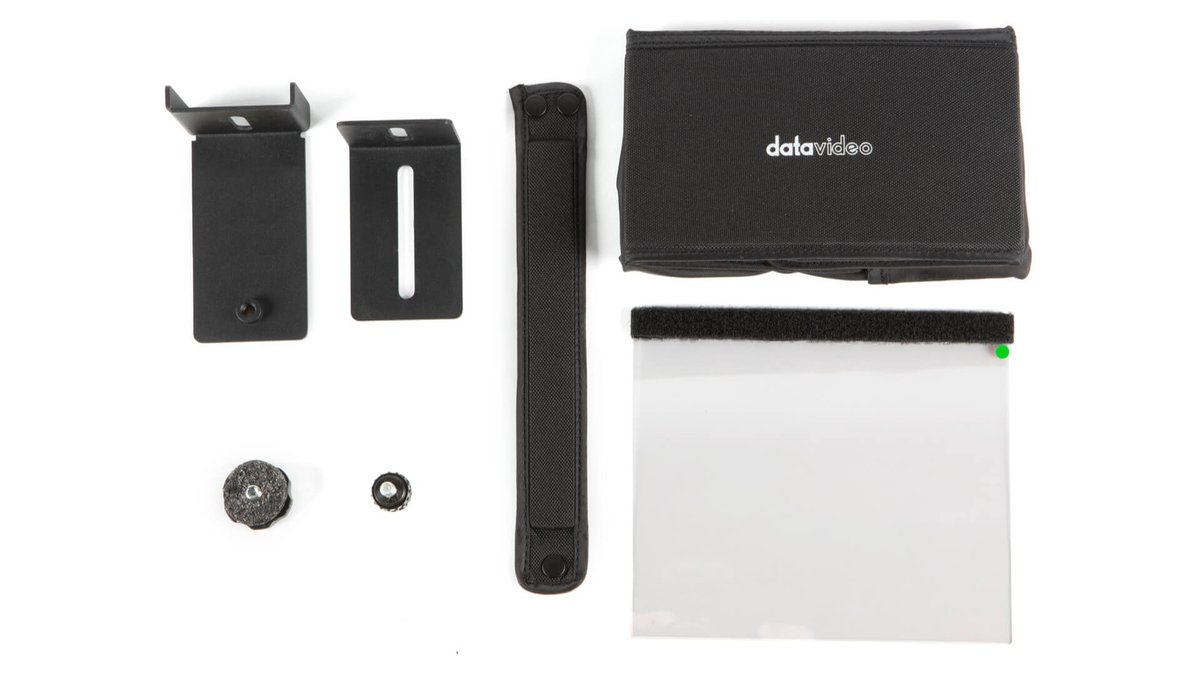

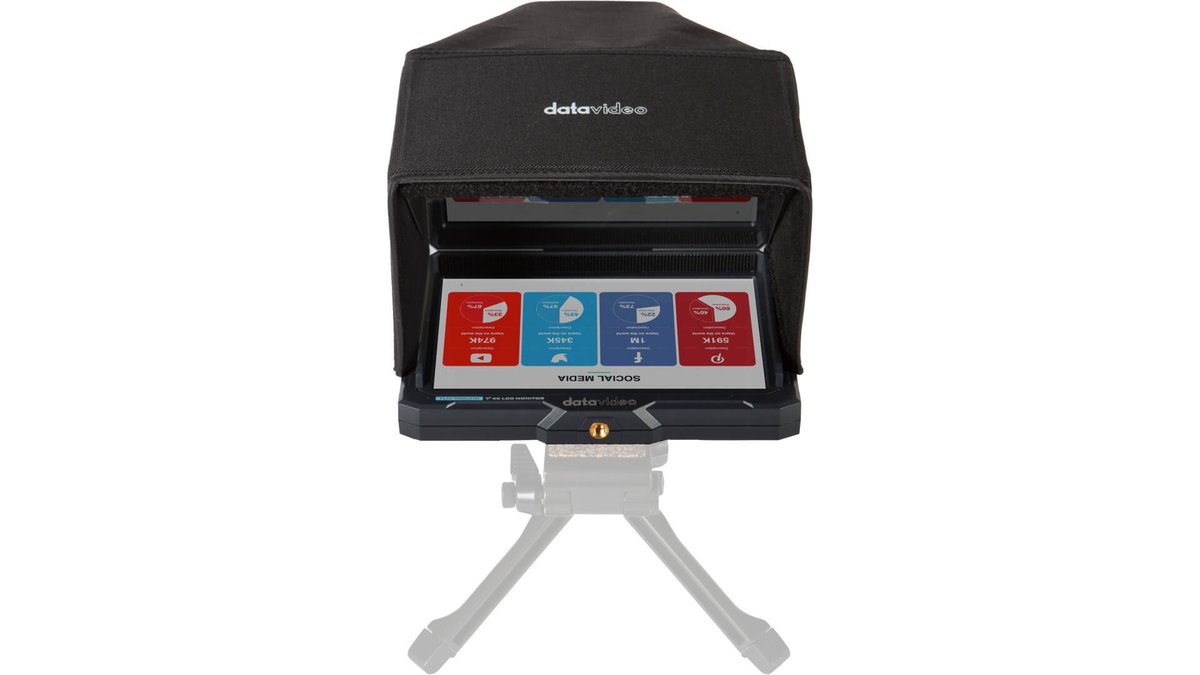

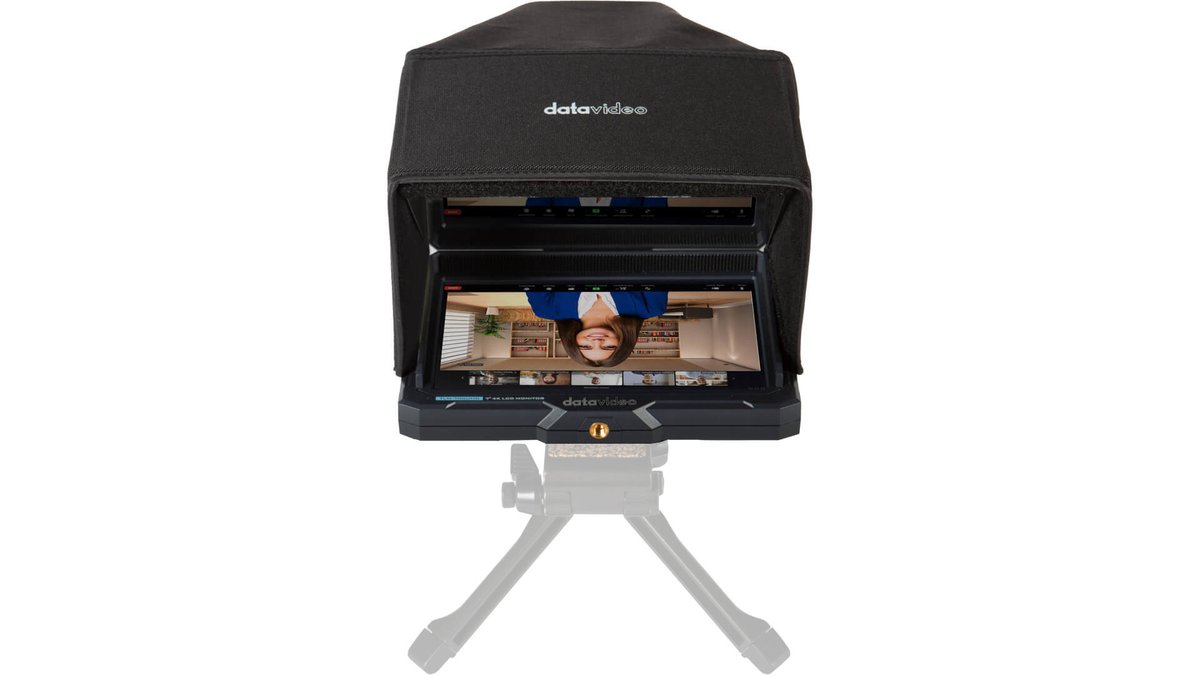

Datavideo TTL-100 Through The Lens Kit for TLM-700 Series
The TTL-100 is a beamsplitter hood that mounts a Datavideo TLM-700K or TLM-700UHD 7 inch monitor directly in front of the camera lens. Any HDMI source shown on that monitor appears on axis with the lens, which is how you get a remote guest, a producer, or a return feed into the presenter's eyeline without them glancing off camera.
It is the standard fix for video conference segments and self-monitored pieces to camera, where eye contact is the whole point. The hood measures 125 x 134 x 123 mm and weighs 0.28 kg, and the camera side uses an adjustable rail so it can be set for different lens lengths. The monitor is not included.
| Function | Through-the-lens beamsplitter hood |
|---|---|
| Monitor Used | Datavideo TLM-700 series 7 inch monitor (not included) |
| Camera Mount Interface | Adjustable rail |
| Hood Dimensions | 125 x 134 x 123 mm (W x H x D) |
| Monitor Native Resolution | 1920x1080 |
| Monitor Brightness | 450 nit |
| Weight | 0.28 kg |
| Operating Temperature | 0 to 40 C |
