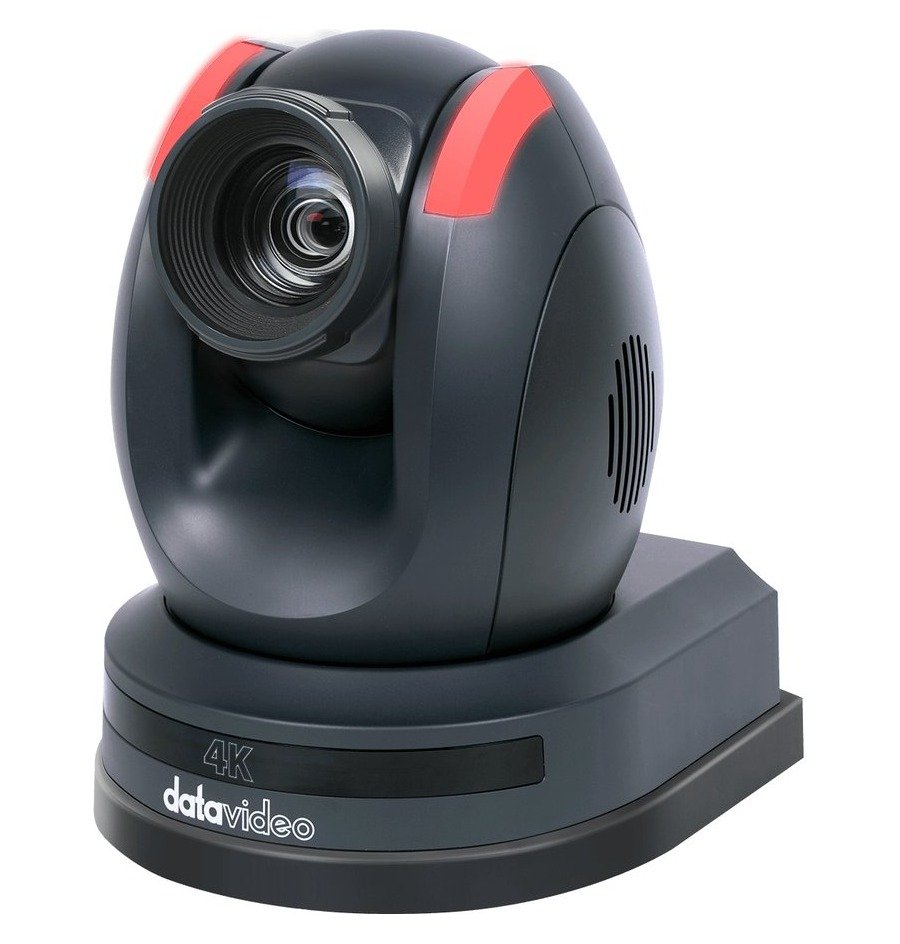

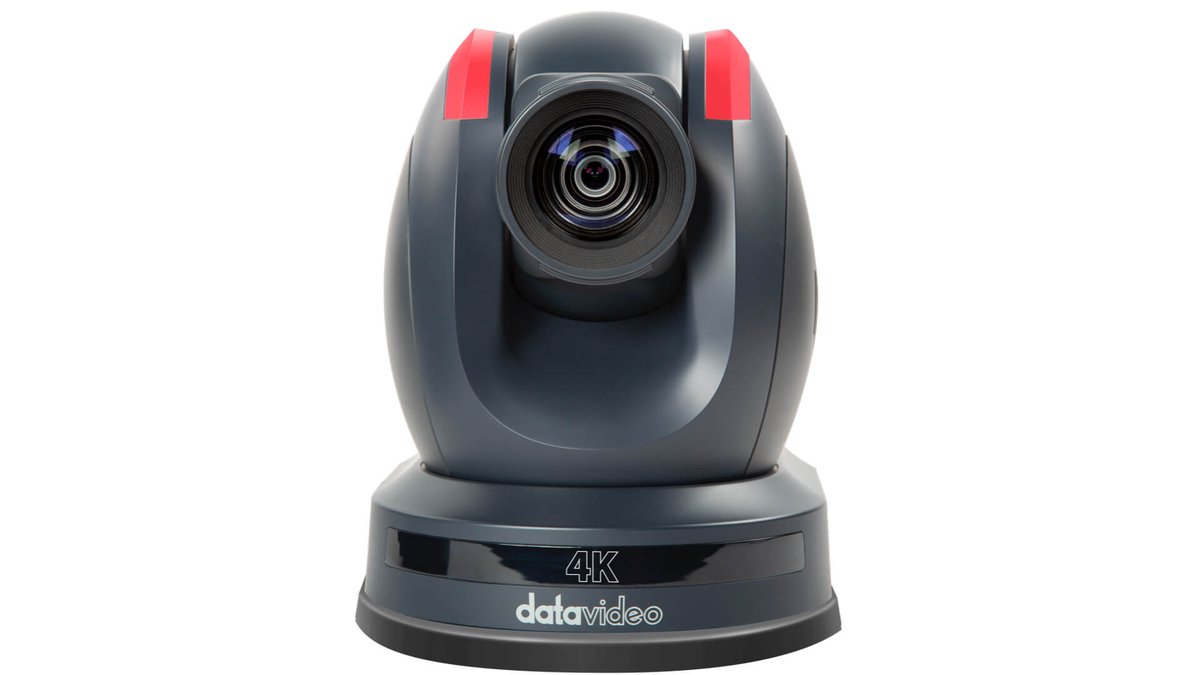

Datavideo PTC-305T 4K 20x HDBaseT Tracking PTZ Camera

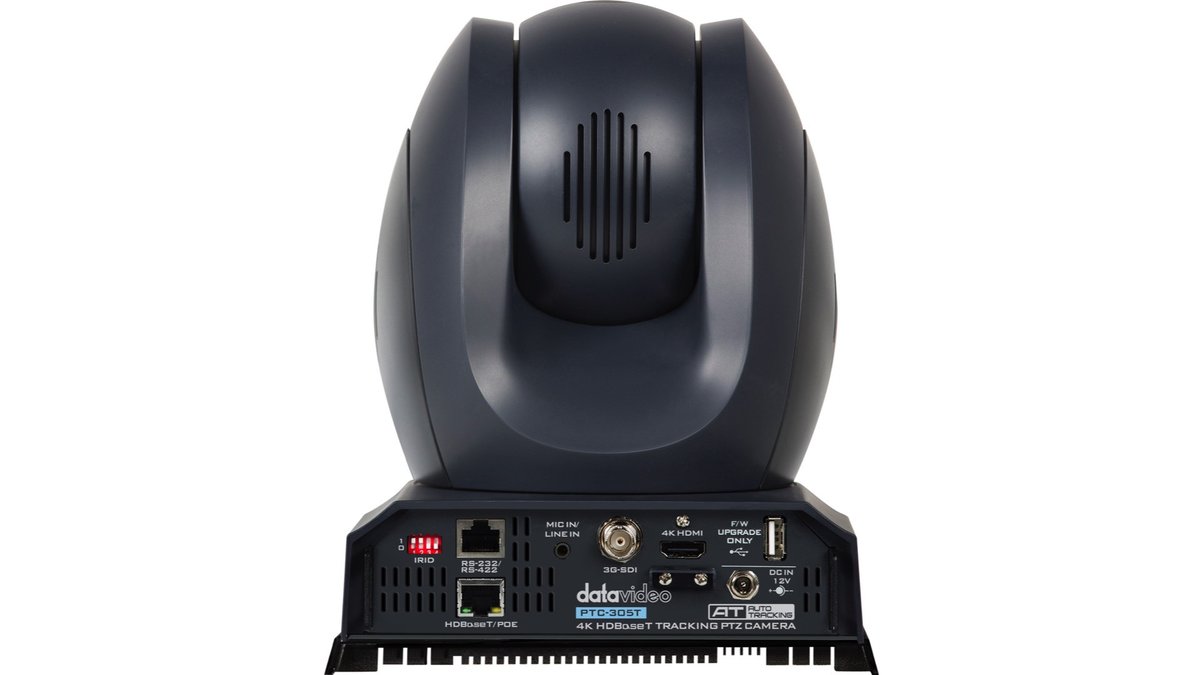

The PTC-305T is the HDBaseT build of the 20x 4K tracking camera. Video at up to 2160p60, RS-422 and DVIP control, and PoE all travel on one shielded Cat6A run, with HDMI 2.0 and 3G-SDI still present on the body for local use.

The imager is a Sony 1/1.8 inch CMOS at 8.42 megapixels behind a 20x optical zoom (16x digital), f = 6.7mm to 125mm at F1.58 to F3.95, 60 degree wide field of view. It ships with the RMC-1AT auto-tracking IR remote and ceiling mount hardware, and works with the HS-1650T and HS-1600T Mark II switchers and RMC-2P, RMC-180 and RMC-300 series controllers. Pan 300 degrees, tilt +90 to -15, 255 presets, IEEE 802.3at PoE or DC 12V at 21W.

Image Sensor	Sony 1/1.8 inch CMOS, 8.42 megapixels
Zoom	20x optical, 16x digital
Focal Length	6.7mm to 125mm, F1.58 to F3.95
Video Output	HDMI 2.0, 3G-SDI, HDBaseT (PoE), Cat6A shielded
Video Format	Up to 2160p60/59.94/50, 1080p, 1080i, 720p
Pan / Tilt	Pan 300 degrees, tilt +90 to -15 degrees
Presets	255 positions
Control Protocols	Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
Streaming	RTSP, RTMP(S), ONVIF, multicast, SRT
Power	IEEE 802.3at PoE, or DC 12V 21W
Weight	2.6 kg
