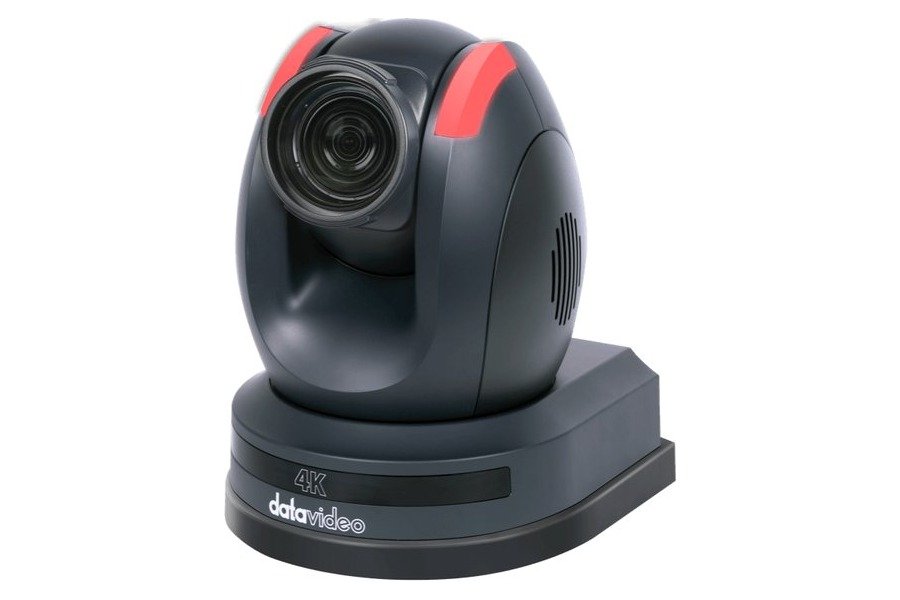

Datavideo PTC-325T 4K 30x HDBaseT Tracking PTZ Camera
When the camera position is a long way from the subject, optical reach is the only thing that helps. The PTC-325T runs a 30x optical zoom (16x digital) from 4.5mm to 135mm at F1.8 to F4.7 on a Sony 1/2.8 inch CMOS at 8.46 megapixels, with a 62.3 degree wide field of view.
HDBaseT carries 2160p60 video, control and PoE on a single cable, with HDMI 2.0 and 3G-SDI on the body. Auto tracking runs from the supplied RMC-1AT IR remote, and the camera is controllable from the HS-1650T and HS-1600T Mark II switchers or RMC-2P, RMC-180 and RMC-300 series panels over Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP or ONVIF. Streaming covers RTSP, RTMP(S), SRT, ONVIF and multicast. Pan 300 degrees, tilt +90 to -15, 255 presets, IEEE 802.3at PoE or DC 12V at 21W.
| Image Sensor | Sony 1/2.8 inch CMOS, 8.46 megapixels |
|---|---|
| Zoom | 30x optical, 16x digital |
| Focal Length | 4.5mm to 135mm, F1.8 to F4.7 |
| Video Output | HDMI 2.0, 3G-SDI, HDBaseT (PoE) |
| Video Format | Up to 2160p60/59.94/50, 1080p, 1080i, 720p |
| Pan / Tilt | Pan 300 degrees, tilt +90 to -15 degrees |
| Presets | 255 positions |
| Control Protocols | Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF |
| Streaming | RTSP, RTMP(S), ONVIF, multicast, SRT |
| Power | IEEE 802.3at PoE, or DC 12V 21W |
| Weight | 2.6 kg |
