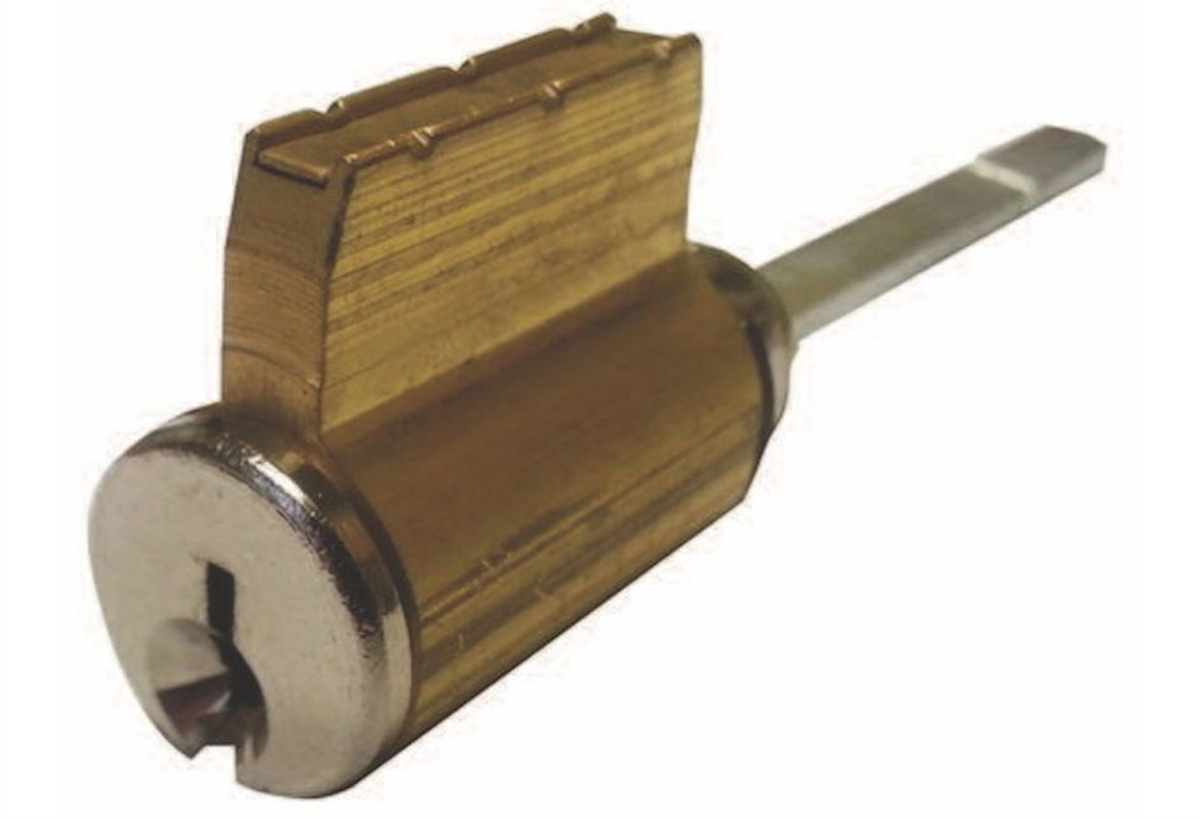

Crestron CLK-YL-AYRD200 Replacement Cylinder for Yale Deadbolt Locks

A smart deadbolt still has a keyway, and on a job with an existing master key system that keyway has to match. The CLK-YL-AYRD200 replacement cylinders let a CLK-YL-YRD220-CR or CLK-YL-YRD210-CR deadbolt be rekeyed to the site standard: 5-pin cylinders in either the Kwikset KW1 or Schlage SC1 keyway, and in either keyed-alike or keyed-different form.

Keyed alike means up to five locks open on the same key, which is the usual arrangement for a front and back door and a garage; keyed different gives each lock its own. Finishes are polished brass (bright brass, US3) for deadbolts finished in polished brass or oil-rubbed bronze, and chrome (US26) for the rest, the US codes being the ANSI and BHMA numbers for materials and finishes. Keyed-different cylinders are offered in the Schlage keyway only. Each cylinder weighs 1 lb.
