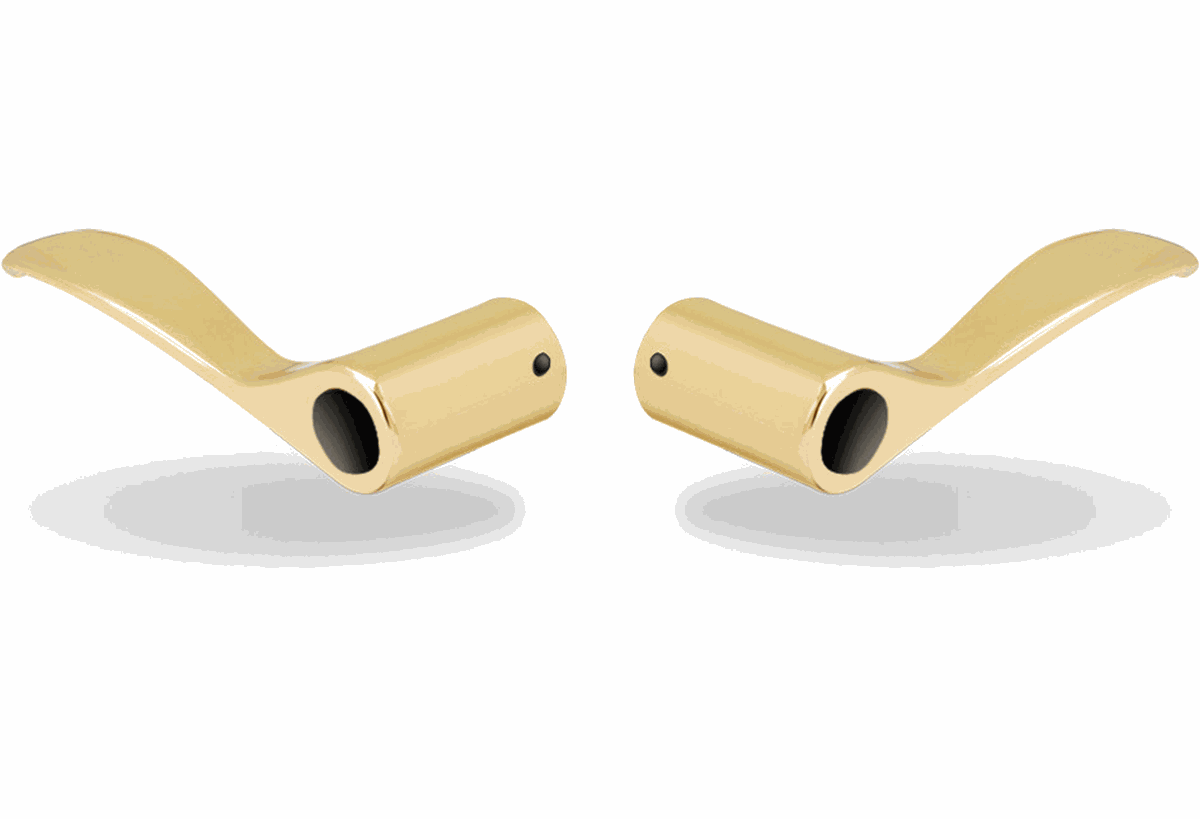

Crestron CLK-YL-YR05D88 Lever Pair for Yale Lever Locks, Norwood (Standard)
Yale lever locks ship with a standard lever, and a standard lever is rarely what the rest of the door furniture looks like. The Norwood (Standard) lever pair is one of six styles Crestron lists for Yale touch screen and push button Lever Locks, supplied as a pair so the inside and outside of the door match. Installation is a swap rather than a job: the existing lever snaps off and the new one snaps on.
Three finishes are offered across the range, and all three are stocked for this style: polished brass (also called bright brass, US3), oil-rubbed bronze (US10BP) and satin nickel (US15). The US codes are the ANSI and BHMA numbers for materials and finishes, so they can be matched against the rest of the ironmongery schedule rather than eyeballed. Each pair weighs 1 lb. The lock itself is sold separately.
| Product | Lever pair for Yale lever locks |
|---|---|
| Style | Norwood (Standard) |
| Lever Pair Finishes | Polished brass (bright brass) US3; oil-rubbed bronze US10BP; satin nickel US15 |
| Lever Pair Styles Offered | Norwood (standard), Academy, Cascade, Marina, McClure, Milan |
| Included | Levers for both the interior and exterior sides of the door |
| Compatibility | Yale touch screen and push button Lever Locks |
| Installation | Snap off the existing lever and snap on the new one |
| Weight | 1 lb (0.46 kg) |
| Finish Codes | US codes refer to ANSI / BHMA numbers for materials and finishes |
