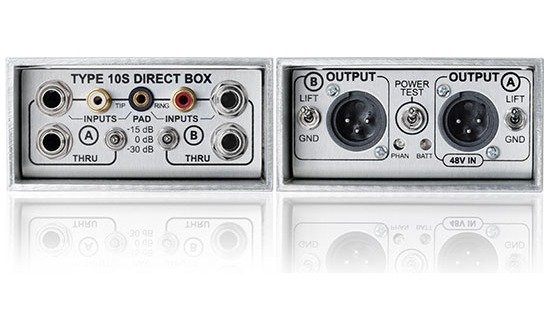

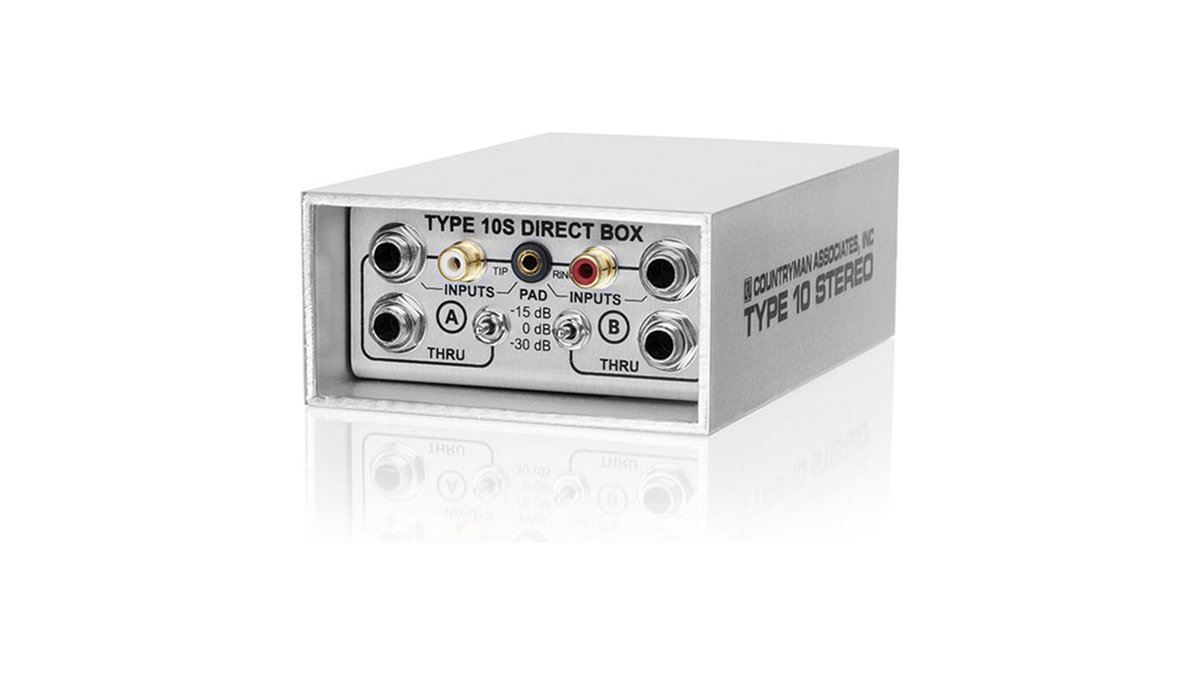

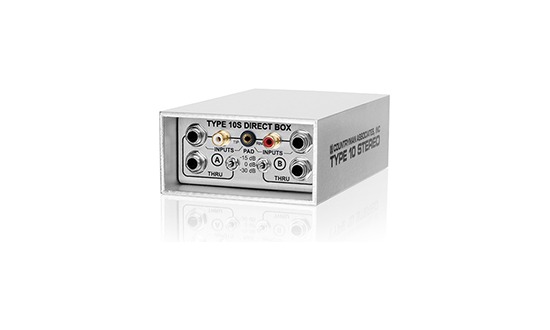

Countryman Type 10S Stereo Direct Box
The Type 10S is the two-channel Type 10, and it keeps the numbers that make the single-channel box worth having: 10 Hz to 50 kHz within 1 dB, THD under 0.001% at 1 kHz. Cross-talk rejection better than 105 dB across the audio band is what makes it a stereo box rather than two mono boxes sharing a case.
Transformer isolation on both channels clears hum, buzz, and RF off long XLR runs, and the box drives a board across hundreds of feet on 48 V phantom or a 9 V battery good for about 130 hours. Each channel has its own 0 dB, -15 dB, and -30 dB pad.
| Type | Two-channel active analog direct box with transformer isolation |
|---|---|
| Frequency Response | 10 Hz to 50 kHz (+/- 1 dB) |
| Distortion (1 kHz) | THD less than 0.001% |
| Cross-Talk Rejection | Greater than 105 dB (20 Hz to 20 kHz) |
| Power Options | 48 V phantom (1.5 mA) or 9 V battery (~130 hours) |
| Pad Settings | 0 dB, -15 dB, -30 dB per channel |
