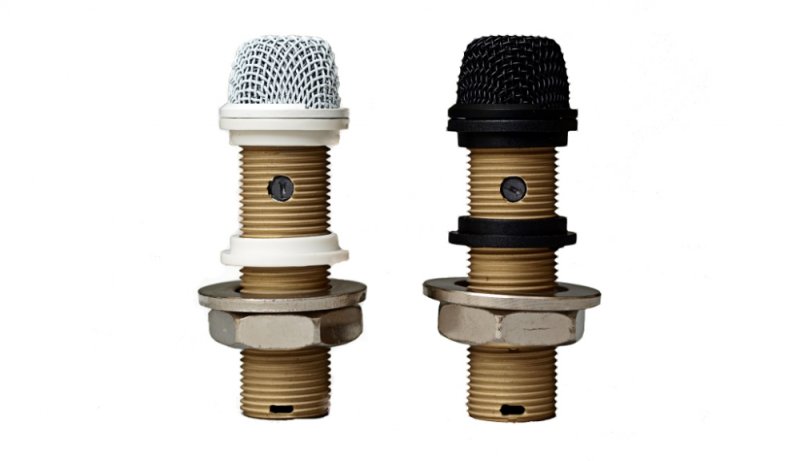

CAD Audio CAD Astatic 220VP Variable Polar Pattern Installation Boundary Button Microphone
The 220VP is a button-style boundary microphone for permanent installation on tabletops, podiums or walls, with a continuously-variable polar pattern that an installer can set to match the room. Its threaded metal body mounts through surfaces up to 3 inches thick, and shock-absorbing bushings cut down on handling and vibration noise.
A built-in 80 Hz high-pass filter (12 dB/octave) rolls off table thumps and HVAC rumble before they reach the mixer, and RF-resistant construction keeps it clean near wireless gear and lighting dimmers common in conference rooms.
| Type | Permanently-biased condenser, boundary button |
|---|---|
| Polar Pattern | Continuously variable |
| Frequency Response | 90 Hz - 17 kHz |
| Sensitivity | -32 dBV (25 mV) @ 1 Pa |
| Impedance | 125 ohms |
| Max SPL | 120 dB |
| Power | P12, P24, P48, 4 mA |
| High-Pass Filter | 80 Hz, 12 dB/octave, built in |
