BZBGear BG-EPTZ-UH4K ePTZ Conference Camera
An ePTZ camera has no motors: it reads a 4K sensor behind a very wide lens and pans, tilts and zooms by moving the crop. The EPTZ-UH4K uses a Sony 1/2.5 inch sensor and an F2.8 lens with a 130 degree field of view, which covers a whole huddle table from the top of a display, and gives 4x digital zoom at 1080p within that frame.

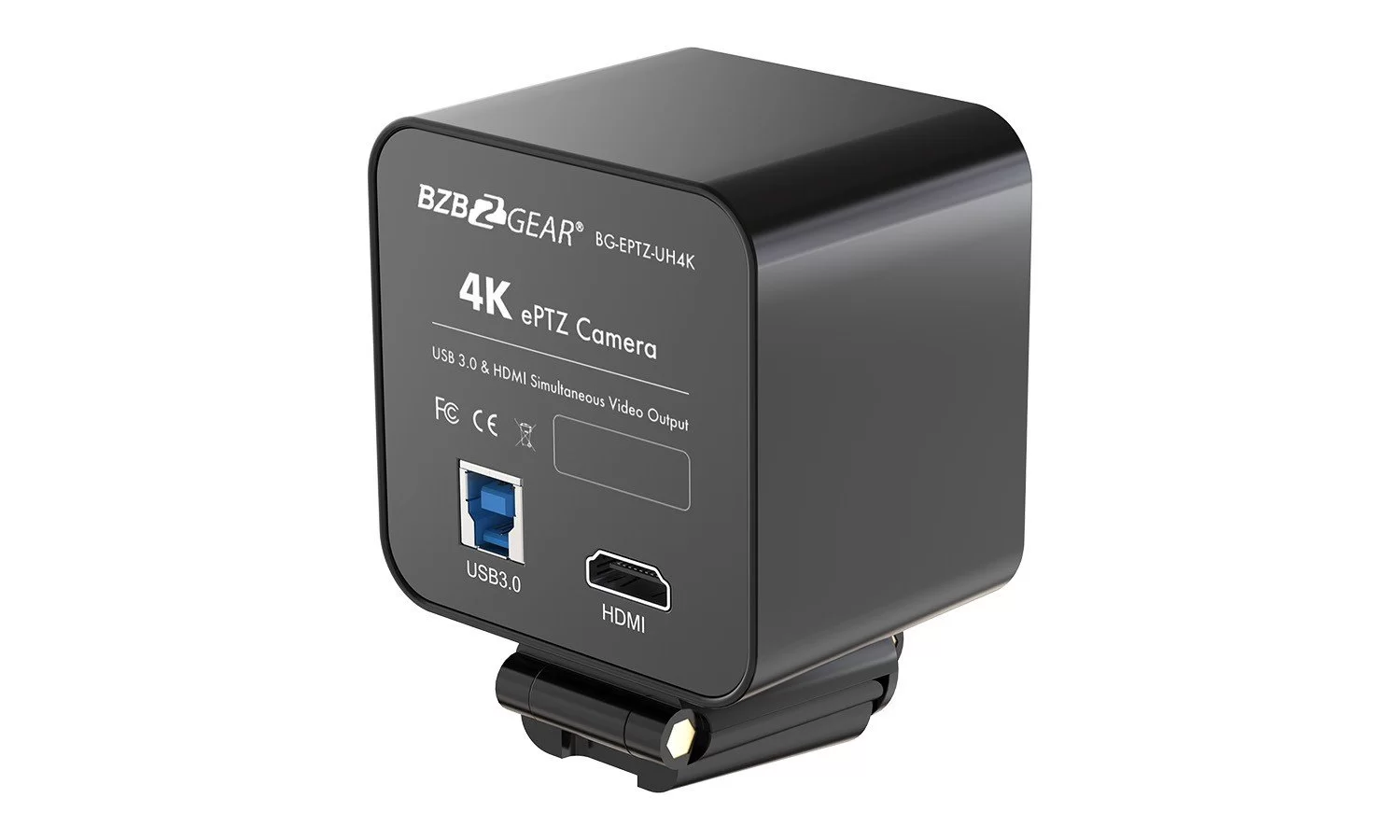

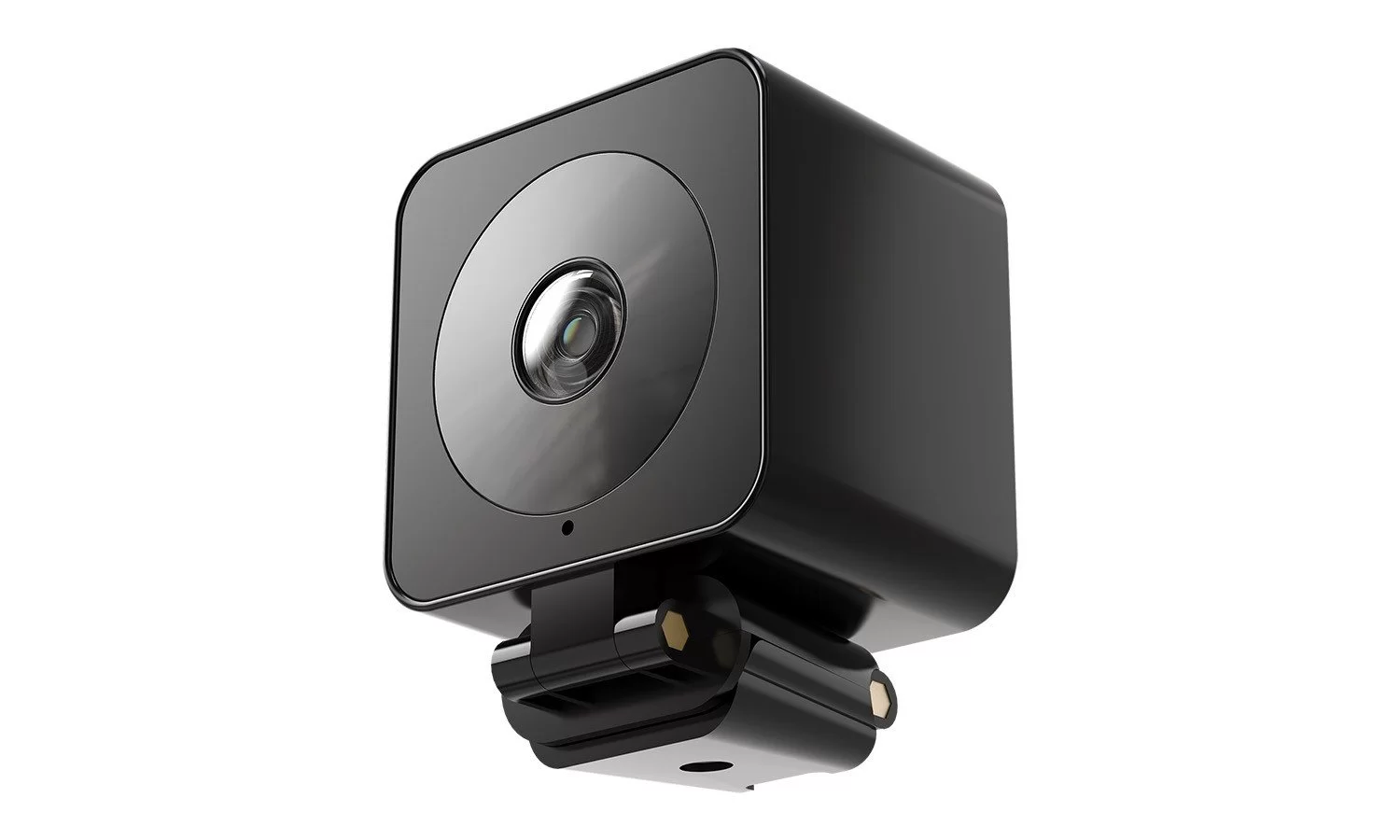

USB 3.0 carries video, audio, control and power on one cable and presents the camera as a UVC 1.0-1.5 device; HDMI 2.0 gives a parallel video-only feed for a room display or a recorder. A microphone is built in with an 8 metre pickup range. The bracket has a damper and allows 30 degrees of tilt adjustment.
| Image sensor | Sony 1/2.5" CMOS |
|---|---|
| Effective pixels | 3840x2160 (4K) |
| Lens | F=2.8mm FOV 130 degrees |
| Zoom | 4X Digital Zoom @ 1080p |
| USB video output | 4K@30Hz/25; 1080p@30Hz/25; 1080i@60Hz/50/30/25; 720p@60Hz/50Hz |
| Encoding | H.265 / H.264 / MJPEG |
| Minimum illumination | 0.02Lux @ F1.8, AGC ON |
| Microphone pickup range | 8 Meters |
| Power | 5V (USB 3.0) |
| Dimensions (L x W x H) | 2.8 x 2.8 x 2.2in [70 x 70 x 56mm] (Bracket not included) |
