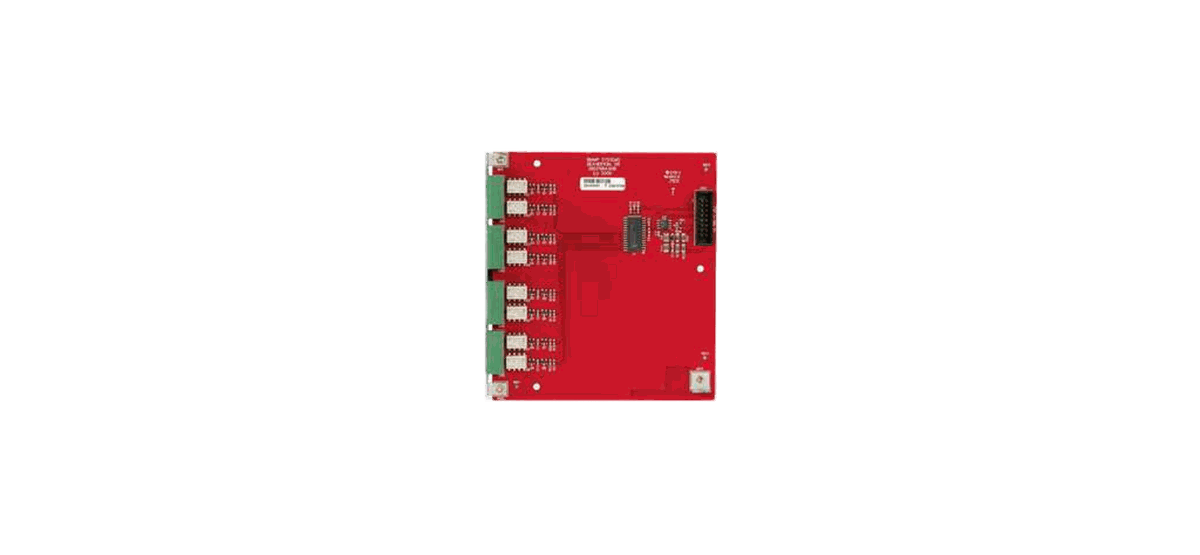

Biamp Vocia PARM-1 Page Active Relay Module

The Biamp Vocia PARM-1 Page Active Relay Module is an optional card for the VA-8600 and VA-8600c amplifiers, giving external equipment a way to react automatically to a page. It provides one SPDT relay contact per amplifier channel, for 8 relays total, and energizes the corresponding relay whenever paging goes active on that channel.

That lets an installer trigger an attenuator override, mute a music source, or flag another system the moment a page starts, without any separate control wiring back to the amplifier. Power and control are supplied by the host amplifier, connections are made on 3.5mm pluggable screw terminal blocks, and it carries Biamp's 5-year warranty.

Function	Energizes one relay per amplifier channel when paging is active on that channel
Compatible Amplifiers	Vocia VA-8600, VA-8600c (Option Slot)
Number of Relays	8 (one per amplifier channel)
Relay Contact Type	Single Form C voltage-free SPST change-over contact, resistive load
Max Operating Rating	125VAC / 60VDC, 600mA AC or 1A DC
Connectors	3.5mm pluggable screw terminal blocks
Dimensions (H x W x D)	5.0 inches (128 mm) x 1.2 inches (30.7 mm) x 4.65 inches (118 mm)
Weight	0.22 lbs (100 g)
Compliance	AES48-2005 Grounding and EMI practices; RoHS Directive (Europe)
Warranty	5-year, Biamp Systems
