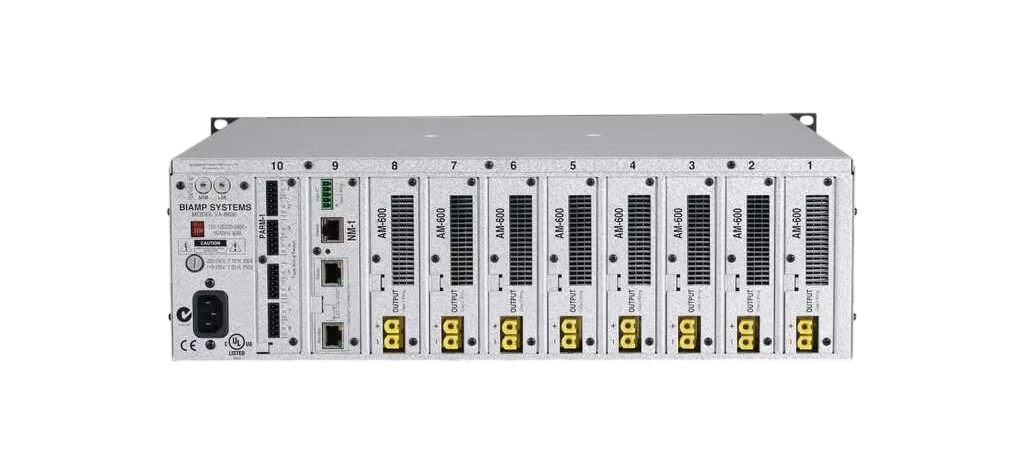

Biamp Vocia VA-8600 Amplifier

The Biamp Vocia VA-8600 Amplifier is a vocia amplifier built for emergency communication and life-safety systems. Inputs are 20 bits, 48 kHz, 5-1/3 ms (fixed).

Power handling is rated at 110-120VAC/220-240VAC; 50/60Hz. Rated output power is 2400W maximum per chassis; (Burst Mode only. Protective thermal limiting will reduce long-term power output.). Network connections are RJ-45 with shielded Ethernet; (CAT5, CAT5e, CAT6 or CAT7).

Power	110-120VAC/220-240VAC; 50/60Hz
Input Type	20 bits, 48 kHz, 5-1/3 ms (fixed)
Network Connection(s)	RJ-45 with shielded Ethernet; (CAT5, CAT5e, CAT6 or CAT7)
Power Output	Total Output Power: 2400W maximum per chassis; (Burst Mode only. Protective thermal limiting will reduce long-term power output.)
Ambient Operating Temperature Range	23-104 deg F (-5 - 40 deg C)
Humidity	0 - 95% non-condensing
Dimensions (H x W x D)	5.25 inches (133 mm) x 19.0 inches (483 mm) x 17.25 inches (438 mm)
Altitude	0-10,000 Feet (0-3000 Meters) MSL
