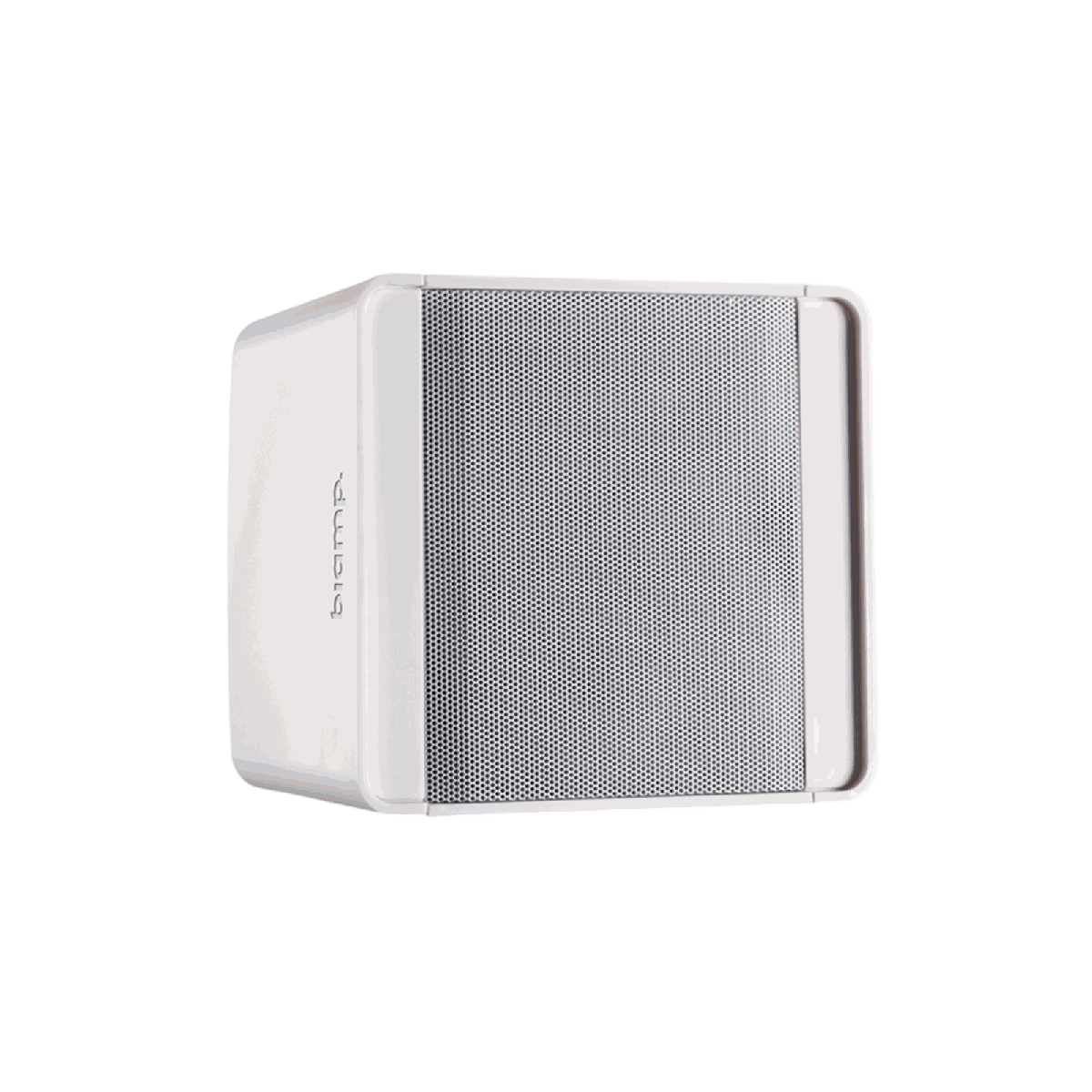

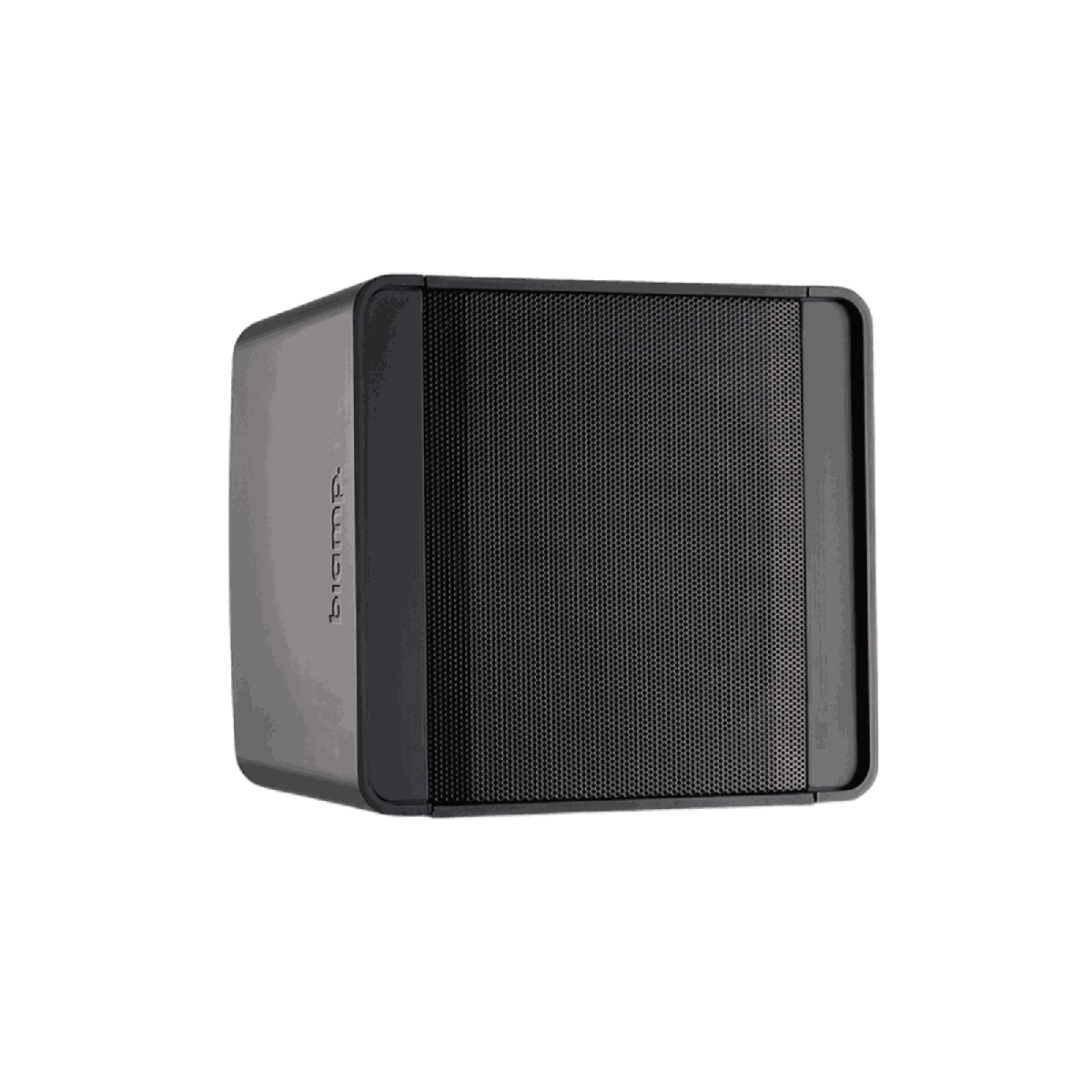

Biamp Desono KUBO3 Surface-Mount Loudspeaker

The Biamp Desono KUBO3 is a compact surface-mount loudspeaker built for business audio and installed sound systems, driven by a 1 x 3 inch (76 mm) polypropylene cone. Its operating range is 115 Hz to 20 kHz. Sensitivity measures Nominal Sensitivity @ 1m: @ 1W, 84 dB @ 2.83V, 84 dB.

Power handling is rated at Continuous Power Handling @ Nominal Impedance: 14V 25W @ 8 (100W peak). Biamp recommends 25W - 50W @ 8 (14V - 20V) of amplifier power. Mounting provision: U-bracket. It is rated for Indoor use. Order it in 3 versions: KUBO3-W, KUBO3T-BL, KUBO3T-W.

Transducers	1 x 3 inch (76 mm) polypropylene cone
Operating Range	115 Hz to 20 kHz
Sensitivity	Nominal Sensitivity @ 1m: @ 1W, 84 dB @ 2.83V, 84 dB
Power	Continuous Power Handling @ Nominal Impedance: 14V 25W @ 8 (100W peak)
Beamwidth	Nominal Beamwidth (H x V): 100 deg x 100 deg
SPL	Nominal Maximum SPL @ 1m: Peak, 104 dB Continuous, 98 dB
Dimensions (H x W x D)	4.9 inches (125 mm) x 5.2 inches (131 mm) x 4.3 inches (109 mm)
Recommended Amplifiers	25W - 50W @ 8 (14V - 20V)
