Best Line Array Speakers for auditoriums

A hard room is not a volume problem, it is a pattern problem. Point a conventional box at a hall with a tiled floor and a plaster rear wall and a good share of its output ends up on the surfaces instead of the seats, coming back as the wash that makes speech unintelligible however loud it gets.

Our Picks

Best for: houses of worship, theatres and halls, fixed install, volunteer operators

What it is
Every length ships in black or white, and the cabinet can be field-painted to match its surroundings.
Vertical coverage is 20 degrees over 1.5 to 16 kHz; horizontal is 150 degrees.
Power it directly at 8 ohms (125 watts RMS) or from a 70.7V line using the 7.5, 15, 30 and 60 watt taps, through a barrier strip or NL-4 connectors.Sensitivity: 92dB 1W/1m
Frequency Response
8-drv 70 Hz / 16-drv 81 Hz / 24-drv 77 Hz – 20 kHz (-10 dB)
80 Hz – 20 kHz (-10 dB)
125 Hz – 20 kHz
Power Handling
8-drv 80 W program / 16-drv 160 W program / 24-drv 220 W program
150 W (600 W peak) 2 hrs; 100 W (400 W peak) 100 hrs
125 W (8 ohm; RMS)
Coverage (H × V)
170° horizontal; vertical narrows with driver count, switchable 20/40° on 16- and 24-driver models
Vertical 20° (1.5 - 16 kHz); horizontal 150°
135° H x 45° V
Max SPL
–
Speech mode 115 dB continuous average (121 dB peak); music mode 111 dB (117 dB peak) (1 m)
–
Part number
VXL1B-8
CBT 50LA-1
ALA5T
Price
$444.99
$585.00
$593.99

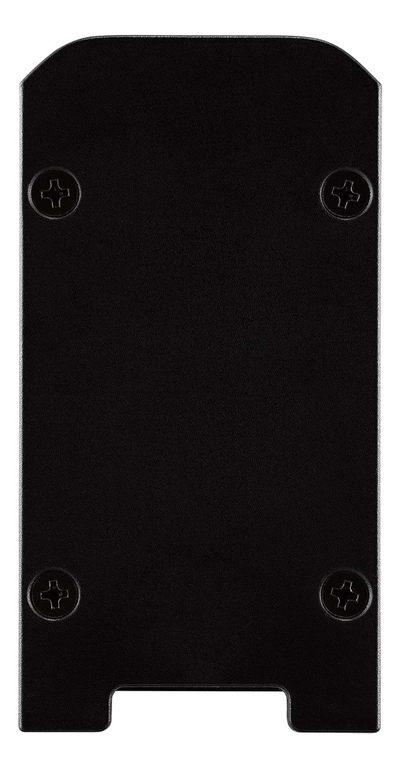

Yamaha VXL1 Slim Line Array Column Speaker
Yamaha VXL1 Slim Line Array Column Speaker

Every length ships in black or white, and the cabinet can be field-painted to match its surroundings.

$444.99
JBL CBT 50LA-1 Constant Beamwidth Technology Line Array Column
JBL CBT 50LA-1 Constant Beamwidth Technology Line Array Column

Vertical coverage is 20 degrees over 1.5 to 16 kHz; horizontal is 150 degrees.

$585.00
AtlasIED ALA5T 5 Speaker Full Range Line Array Speaker System
AtlasIED ALA5T 5 Speaker Full Range Line Array Speaker System

Power it directly at 8 ohms (125 watts RMS) or from a 70.7V line using the 7.5, 15, 30 and 60 watt taps, through a barrier strip or NL-4 connectors.

Sensitivity: 92dB 1W/1m
$593.99

What Matters for Auditoriums

A column keeps its vertical pattern narrow and holds it a long way down the room, which is why the same wattage reads clearer in a reverberant nave than a trapezoid cabinet does. Watch what happens under a balcony and in the front rows, because narrow coverage that misses is worse than wide coverage that is merely imperfect.

  • Vertical pattern narrow enough to keep energy off ceiling and floor
  • Throw that reaches the last row without shouting at the first
  • Under-balcony and front-fill coverage considered, not assumed
  • Finish and mounting that suit a room people look at

Line Array Speakers for Auditoriums

ProductWhat it isFrequency ResponsePower HandlingCoverage (H × V)Max SPLPrice
AtlasIED ALA5T-B 5 Speaker Full Range Line Array Speaker System - BlackAtlasIED ALA5T-B 5 Speaker Full Range Line Array Speaker System - BlackThe wall bracket is included and slides in the rear channels to set tilt; the enclosure is IP32 rated and finished in black.Input Sensitivity at 1W/1m: 92 dBOperating Range (-10dB): 125Hz - 20kHz125 Hz – 20 kHz (-10dB)125 W Continuous, 250 W Program (8 ohm)135° H x 45° V113.8 dB Continuous, 116.8 dB Peak (1 m)$593.99
JBL CBT 50LA-LS Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers and EN54:24 CertificationJBL CBT 50LA-LS Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers and EN54:24 CertificationNominal coverage is Vertical: 20 degrees (1.5 kHz - 16 kHz, +/-10 degrees) Horizontal: 150 degrees (ave, 1 kHz - 4 kHz, +/-20 degrees).120 Hz – 20 kHz (-10dB)150 W (600 W peak), 2 hrs100 W (400 W peak), 100 hrsVertical: 20° (1.5 kHz - 16 kHz, +/-10° ) Horizontal: 150° (ave, 1 kHz - 4 kHz, +/-20° )Speech mode: 115 dB cont ave (121 peak)Music mode: 111 dB cont ave (117 peak)$670.00
AtlasIED ALA15T 15 Speaker Full Range Line Array Speaker SystemAtlasIED ALA15T 15 Speaker Full Range Line Array Speaker SystemThe ALA15T is a slim column line array for rooms where speech has to land clearly: lecture halls, houses of worship, transit concourses and reverberant lobbies.8Ω RMS Power: 250 WattsSensitivity: 96dB 1W/1m90 Hz – 20 kHz250 W (8 ohm; RMS)135° H x 40° V–$740.99
AtlasIED ALA10T-B 10 Speaker Full Range Line Array Speaker System - BlackAtlasIED ALA10T-B 10 Speaker Full Range Line Array Speaker System - BlackThe enclosure is IP32 rated and finished in black; the pole mount kit for portable use with a subwoofer is sold separately.Input Sensitivity at 1W/1m: 96 dBOperating Range (-10dB): 125Hz - 20kHz125 Hz – 20 kHz (-10dB)200 W Continuous, 400 W Program (8 ohm)135° H x 40° V119 dB SPL Continuous, 122 dB SPL Peak (1 m)$828.99
AtlasIED ALA20T 20 Speaker Full Range Line Array Speaker SystemAtlasIED ALA20T 20 Speaker Full Range Line Array Speaker SystemThe long line holds a 40° vertical pattern from 400Hz up to 4kHz, so it throws speech deeper into a room before it spills onto walls and ceiling.Input Sensitivity at 1W/1m: 97 dBOperating Range (-10dB): 90Hz - 20kHz90 Hz – 20 kHz (-10dB)500 W Continuous, 1000 W Program (8 ohm)135° H x 40° V124 dB Continuous, 127 dB Peak (1 m)$896.99
AtlasIED ALA15T-B 15 Speaker Full Range Line Array Speaker System - BlackAtlasIED ALA15T-B 15 Speaker Full Range Line Array Speaker System - BlackThe ALA15T-B is a black column line array for rooms where speech has to be understood: lecture halls, houses of worship, transit concourses.8Ω RMS Power: 250 WattsSensitivity: 96dB 1W/1m90 Hz – 20 kHz250 W (8 ohm; RMS)––$926.99
JBL CBT 100LA-1 Constant Beamwidth Technology Line Array ColumnJBL CBT 100LA-1 Constant Beamwidth Technology Line Array ColumnVertical coverage switches between a 15-degree narrow mode and a 40-degree broad mode; horizontal stays at 150 degrees.80 Hz – 20 kHz (-10 dB)325 W (1300 W peak) 2 hrs; 200 W (800 W peak) 100 hrsVertical switchable: narrow 15°, broad 40°; horizontal 150°Narrow speech mode 121 dB continuous average (127 dB peak) (1 m)$1,055.00
AtlasIED ALA20T-B 20 Speaker Full Range Line Array Speaker System - BlackAtlasIED ALA20T-B 20 Speaker Full Range Line Array Speaker System - BlackThe column is 65.75" tall, 4.61" wide and 5.43" deep, and the included wall mount slides in rear channels to set vertical tilt.8Ω RMS Power: 500 WattsSensitivity: 97dB 1W/1m110 Hz – 20 kHz500 W (8 ohm; RMS)135° H & 40° V127 dB (Peak 8)$1,121.99
JBL CBT 100LA-LS Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers and EN54:24 CertificationJBL CBT 100LA-LS Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers and EN54:24 CertificationTransducers are Sixteen 50 mm (2 in) Full-Range. EN 54-24 Compliant for Life Safety Applications (when installed with included MTC-PC2 panel cover).120 Hz – 20 kHz (-10dB)325 W (1300 W peak), 2 hrs 200 W (800 W peak), 100 hrs–92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)$1,245.00
Bose F1 Model 812 Flexible Array LoudspeakerBose F1 Model 812 Flexible Array LoudspeakerThe F1 Model 812 is a powered PA speaker with a 1000 W amplifier, a 12-inch woofer and a column of eight high-output drivers.AC Power: 100-240 V, 50/60 Hz, IEC inlet43 Hz – 20 kHz1000 W–132 dB (1 m)$1,399.00
JBL CBT 70J-1 Constant Beamwidth Technology Two-Way Line Array ColumnJBL CBT 70J-1 Constant Beamwidth Technology Two-Way Line Array ColumnVertical coverage switches between a 25-degree narrow mode and a 45-degree broad mode; horizontal is 150 degrees.60 Hz – 20 kHz (-10 dB)500 W (2000 W peak) 2 hrs; 350 W (1400 W peak) 100 hrsVertical switchable: narrow 25°, broad 45°; horizontal 150°Narrow speech mode 125 dB continuous average (131 dB peak) (1 m)$1,480.00

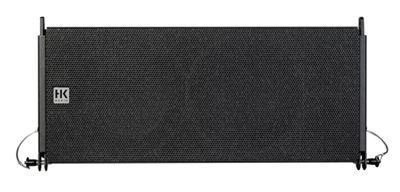

HK Audio CADIS CAD 208 Weatherproof Install Line ArrayHK Audio CADIS CAD 208 Weatherproof Install Line ArrayPower handling is 250 W RMS and 1,000 W peak, with response down to 100 Hz.Power Handling: 250 W RMS / 1,000 W peakImpedance: 18 ohms100 Hz – 18 kHz (-6 dB)250 W RMS / 1,000 W peak100 × 15° (horizontal x vertical, -6 dB)136 dB (Peak)$1,799.00

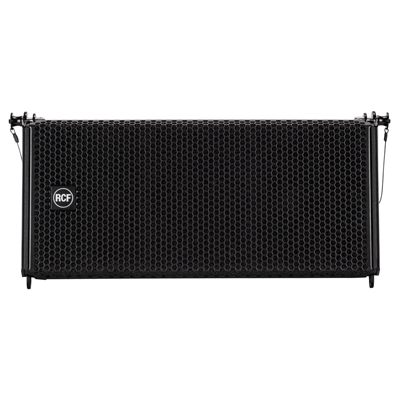

RCF HDL 6-A Line Array ModuleRCF HDL 6-A Line Array ModuleIt pairs with the HDL 12-AS subwoofer for a compact full-range rig, and ships in black or white.Coverage: 100 x 10 degrees65 – 20,000 Hz1400 W peak (1000 W LF + 400 W HF)100 × 10°131 dB @ 1m$1,799.00

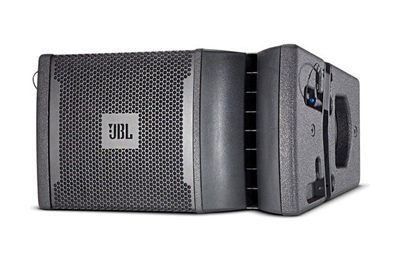

JBL VRX928LAJBL VRX928LAThe VRX928LA is the small constant-curvature array box, 28 lb, meant for hangs of up to six.Coverage pattern: 100 x 15 degrees nominalInputs: 2 x Neutrik Speakon NL-470 Hz – 20 kHz (-10 dB)400 W / 800 W / 1600 W (continuous / program / peak)100 × 15° nominal122 dB peak passive; bi-amp LF 122 dB, HF 128 dB (1 m)$1,849.00
FBT VERTUS CS 1000 Compact Line Array Integrated SystemFBT VERTUS CS 1000 Compact Line Array Integrated SystemThe low frequency driver is a 12 - 2.5 coil inch and the high frequency driver a 6 x 3 - 0.8 coil neodymium inch crossing over at 180 KHz.Input impedance: 22 Kohm40 Hz – 20 kHz – 6 dB (-6dB)–110° × 30° H x V–$2,111.50

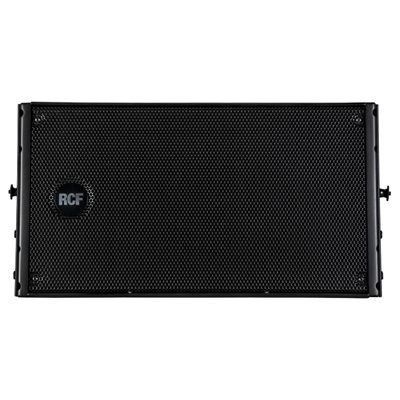

RCF HDL 10-A Line Array ModuleRCF HDL 10-A Line Array ModuleThe 100 by 15 degree pattern is built for vertical arraying, and the same 1400W peak Class-D amplifier (1000W LF, 400W HF) drives it.Coverage: 100 x 15 degrees65 – 20,000 Hz1400 W peak (1000 W LF + 400 W HF)100 × 15°133 dB @ 1m$2,199.00
JBL CBT 200LA-1 Constant Beamwidth Technology Line Array Column, Two-PieceJBL CBT 200LA-1 Constant Beamwidth Technology Line Array Column, Two-PieceEach half has its own 70/100 V transformer with 120 W, 60 W and 30 W taps, or direct 8 ohm operation; wired through, the pair is 4 ohms total.80 Hz – 20 kHz (-10 dB)650 W (2600 W peak) 2 hrs; 400 W (1600 W peak) 100 hrsVertical switchable: narrow 15°, broad 30°, asymmetrical progressiveNarrow speech mode 123 dB continuous average (129 dB peak) (1 m)$2,445.00
Tannoy VQ 64MH Mid-High ElementTannoy VQ 64MH Mid-High ElementPower handling is 200 W continuous and 800 W peak.400 Hz – 23 kHz (-3 dB)––138 dB averaged, 144 peak$2,749.00
Martin Audio O-Line Micro Line Array ModuleMartin Audio O-Line Micro Line Array ModuleThat narrow vertical pattern is the whole point.Type: Two-way micro-line array moduleRated Power: 50W AES, 200W peak85 Hz – 20 kHz ±3 dB, -10 dB at 76 Hz (+/- 3dB)50 W AES, 200 W peak100° horizontal, 5° vertical (-6dB)104 dB continuous, 110 dB peak$2,771.05
JBL VRX932LA-1JBL VRX932LA-1The VRX932LA-1 is the twelve-inch constant-curvature array element, 46 lb, for hangs of up to six.Coverage pattern: 100 x 15 degrees nominalInputs: 2 x Neutrik Speakon NL-4Sensitivity: Passive 95 dB SPL57 Hz – 20 kHz (-10 dB)800 W / 1600 W / 3200 W (continuous / program / peak)100 × 15° nominal130 dB peak passive; bi-amp LF 130 dB, HF 139 dB (1 m)$2,899.00
JBL CBT 1000 Constant Beamwidth Technology Adjustable-Coverage Line Array ColumnJBL CBT 1000 Constant Beamwidth Technology Adjustable-Coverage Line Array ColumnIt is a 4 ohm passive box requiring an external amplifier, with a recommended 35 Hz high-pass at 24 dB per octave or steeper.45 Hz – 20 kHz (-10 dB)1500 W (6000 W peak) 2 hrs; 900 W (3600 W peak) 100 hrsVertical: four selections each for top and bottom; horizontal tapered 100 to 160°–$3,075.00
RCF HDL 20-A Line Array ModuleRCF HDL 20-A Line Array ModuleThe 1400W peak Class-D amplifier (1000W LF, 400W HF) and 100 by 15 degree coverage pattern give it the output to anchor a full array on its own.Coverage: 100 x 15 degrees55 – 20,000 Hz1400 W peak (1000 W LF + 400 W HF)100 × 15°135 dB @ 1m$3,299.00
JBL VTX A6 Sub-Compact Dual 6.5-Inch Line Array ElementJBL VTX A6 Sub-Compact Dual 6.5-Inch Line Array ElementThe VTX A6 is a sub-compact dual 6.5-Inch line array element, from the VTX touring range. Nominal coverage is 110 degrees nominal (500 Hz-16 kHz).67 Hz – 20 kHz (-10dB)–110° nominal (500 Hz-16 kHz)134 dB$3,353.40
Martin Audio Wavefront Precision WPM 2-Way Line Array ElementMartin Audio Wavefront Precision WPM 2-Way Line Array ElementWPM is the small end of the Wavefront Precision range and the one that fits where a full array will not.Type: Two-way, passive line array elementRated Power: 300W AES, 1200W peakNominal Impedance: 16 ohms76 Hz – 18 kHz ±3 dB (+/- 3dB)300 W AES, 1200 W peak100° horizontal (-6dB), 10° vertical130 dB peak (single cabinet)$3,410.53
