AtlasIED ALA5T-B 5 Speaker Full Range Line Array Speaker System - Black

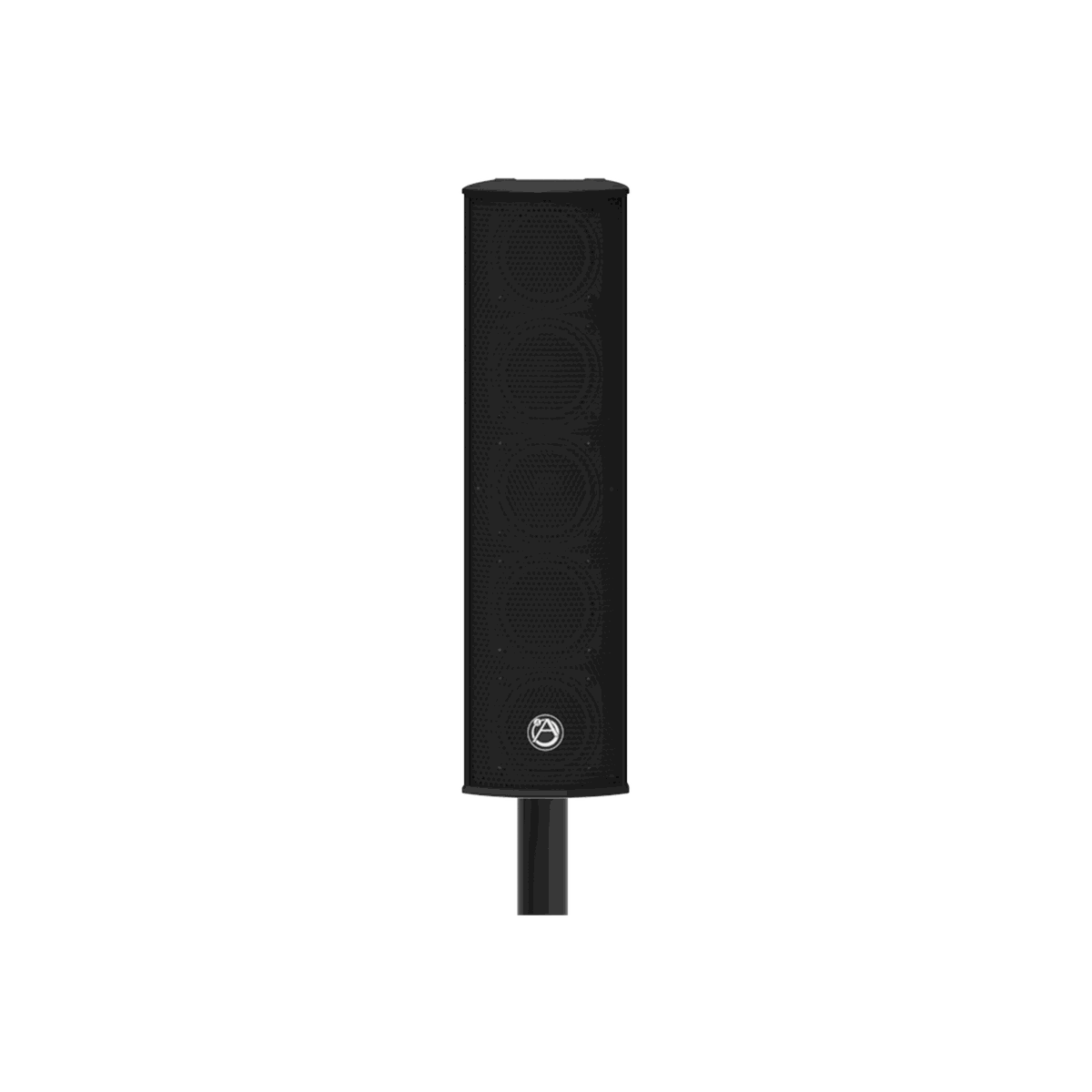

The AtlasIED ALA5T-B is a 5 speaker full range line array speaker system - black. The ultra-compact ALA5T-B column line array speaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5T-B's transducer configuration combines five tight packed 3" full range drivers and two 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. Published frequency response is 125Hz - 20kHz.

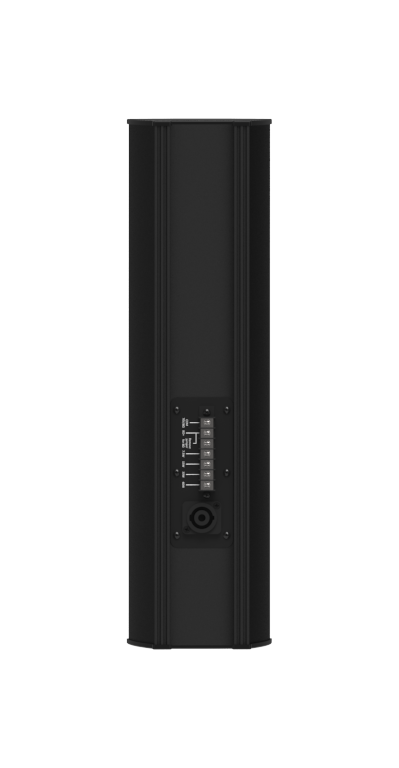

The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. AtlasIED lists 45° vertical coverage; 135° horizontal coverage; two (2) high frequency tweeters; five (5) proprietary 3" (76mm) full range drivers. It measures 16.61" (422mm) high, 4.61" (117mm) wide, and 5.43" (137.9mm) deep. It carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | ALA5T-B |
|---|---|
| 8Ω RMS Power | 125 Watts |
| 70.7V Power Taps | 7.5, 15, 30, & 60 Watts |
| Dispersion | 135° H x 45° V |
| Sensitivity | 92dB 1W/1m |
| Frequency Response | 125Hz - 20kHz |
| Height | 16.61" (422mm) |
| Depth | 5.43" (137.9mm) |
| Width | 4.61" (117mm) |
| Warranty Period | 60 months from date of purchase |
