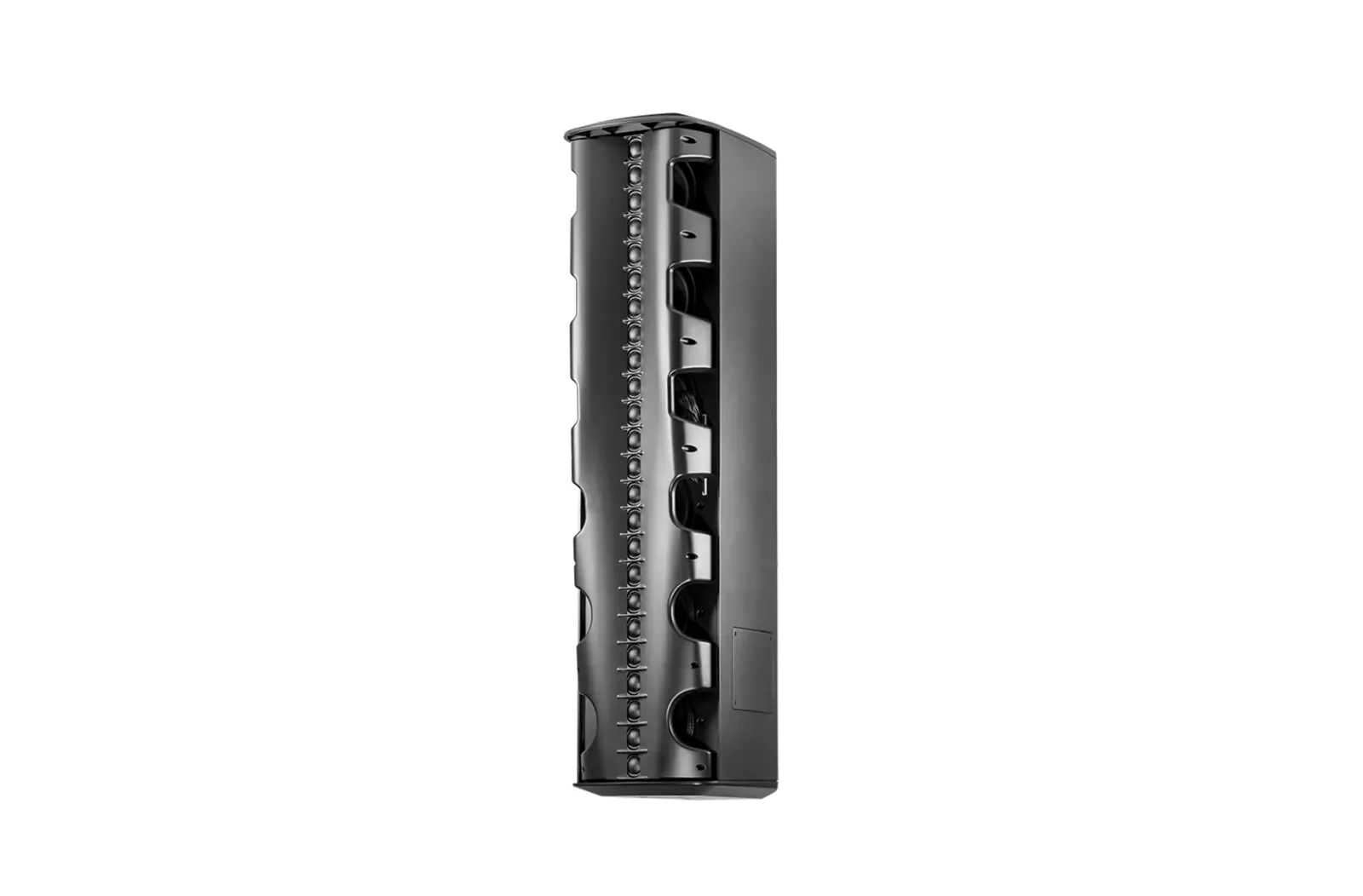

JBL Professional JBL CBT 1000 Constant Beamwidth Technology adjustable-coverage line array column

The CBT 1000 is the large adjustable-coverage column: six 165 mm neodymium LF drivers and twenty-four 25 mm HF drivers, with a tapered horizontal waveguide running 100 to 160 degrees. Vertical coverage is set separately for the top and bottom halves from four selections each, so the pattern can be shaped to the actual geometry of the room instead of a fixed splay.

Frequency range runs to 45 Hz at -10 dB and sensitivity is 102 dB at the highest-directivity setting. It is a 4 ohm passive box requiring an external amplifier, with a recommended 35 Hz high-pass at 24 dB per octave or steeper. A two-part swivel and tilt bracket is included, and the cabinet is IP-55 rated with the optional MTC-PC2 cover.

Type	Constant Beamwidth Technology adjustable-coverage line array column
Drivers	Six 165 mm (6.5-inch) LF; twenty-four 25 mm (1-inch) HF, neodymium
Frequency range (-10 dB)	45 Hz - 20 kHz
Coverage angle	Vertical: four selections each for top and bottom; horizontal tapered 100 to 160 degrees
Sensitivity	102 dB at highest-sensitivity setting
Impedance	4 ohms (4 ohms above 1 kHz; 8 ohms below 800 Hz)
Power capacity	1500 W (6000 W peak) 2 hrs; 900 W (3600 W peak) 100 hrs
Recommended high-pass	35 Hz, 24 dB/octave or greater
Enclosure	Fibreglass-reinforced ABS, powder-coated 1050 aluminium grille
Outdoor rating	IP-55 per IEC529 with optional MTC-PC2 cover
Mounting	Included two-part swivel/tilt wall bracket; fourteen M8 inserts on back panel
Dimensions (H x W x D)	1020 x 250 x 345 mm (40.2 x 9.9 x 13.6 in)
Net weight (cabinet)	24.5 kg (54 lb)
