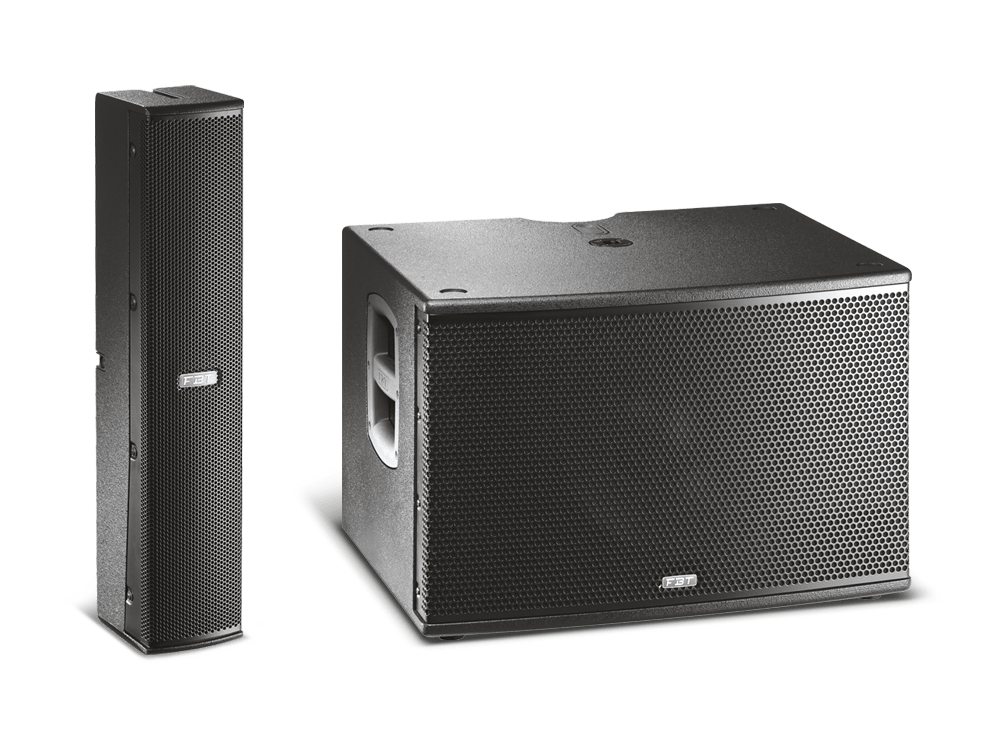

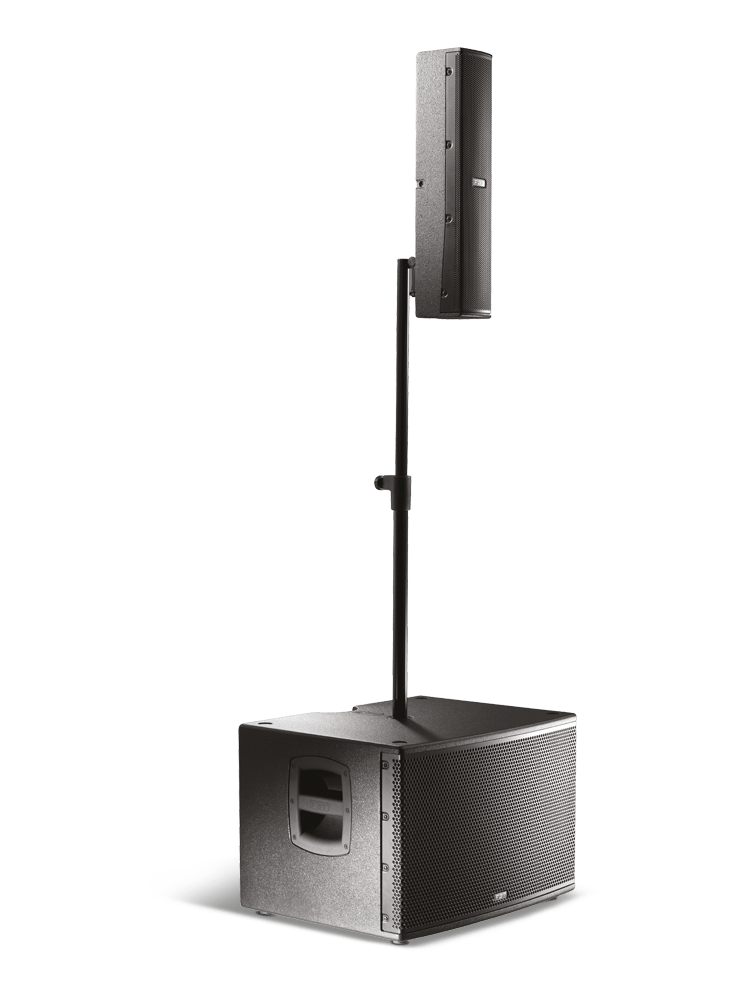

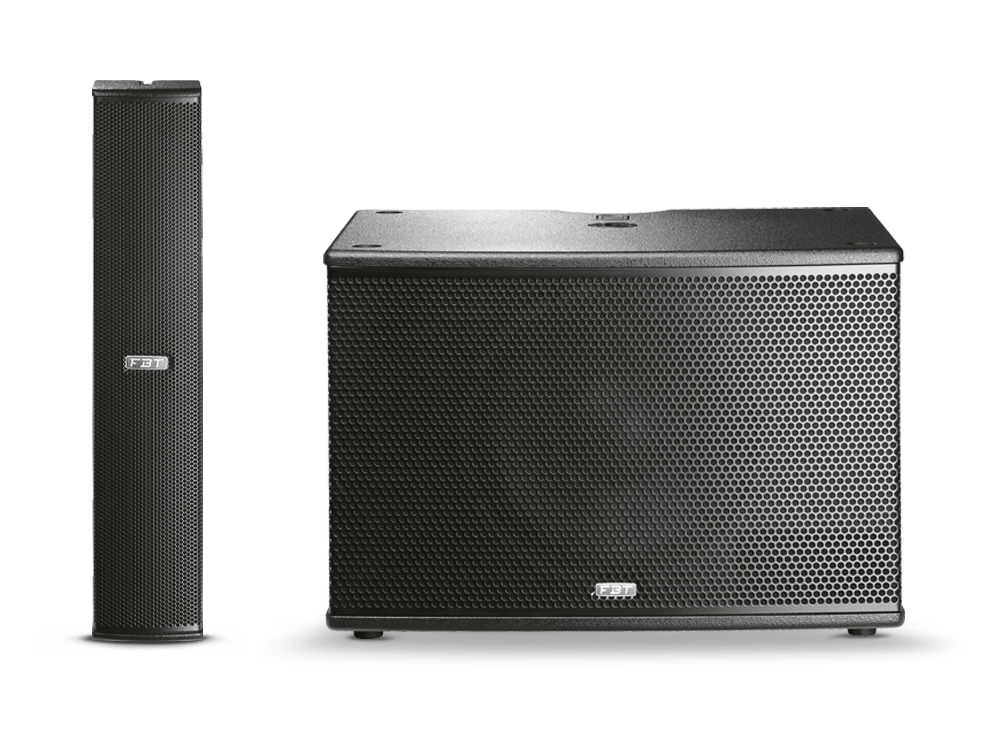

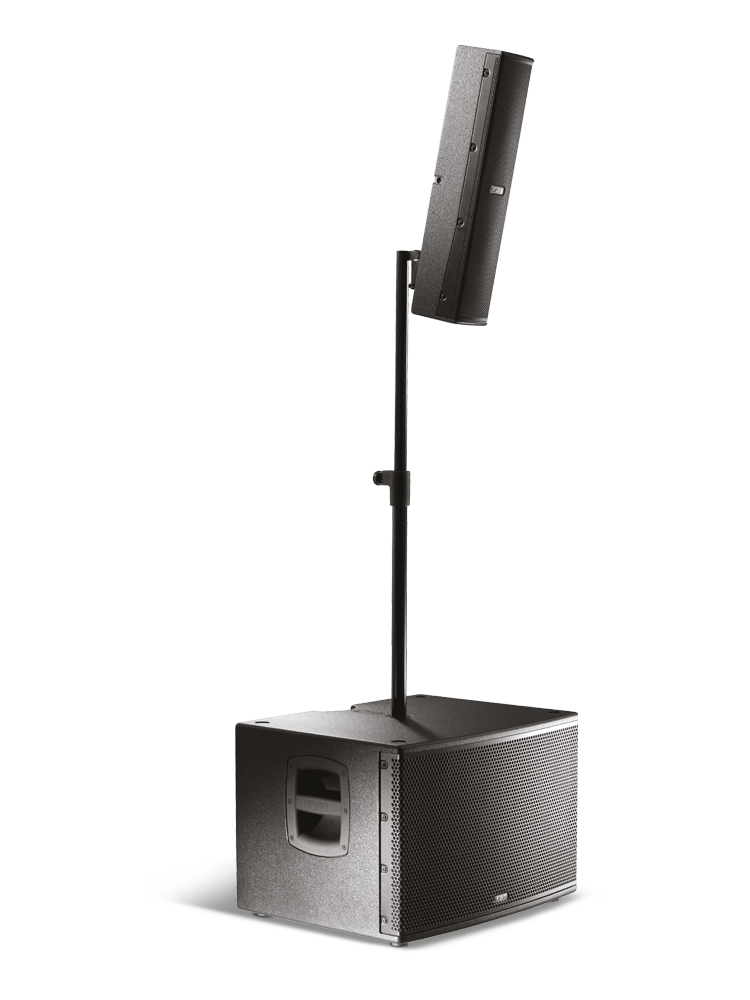

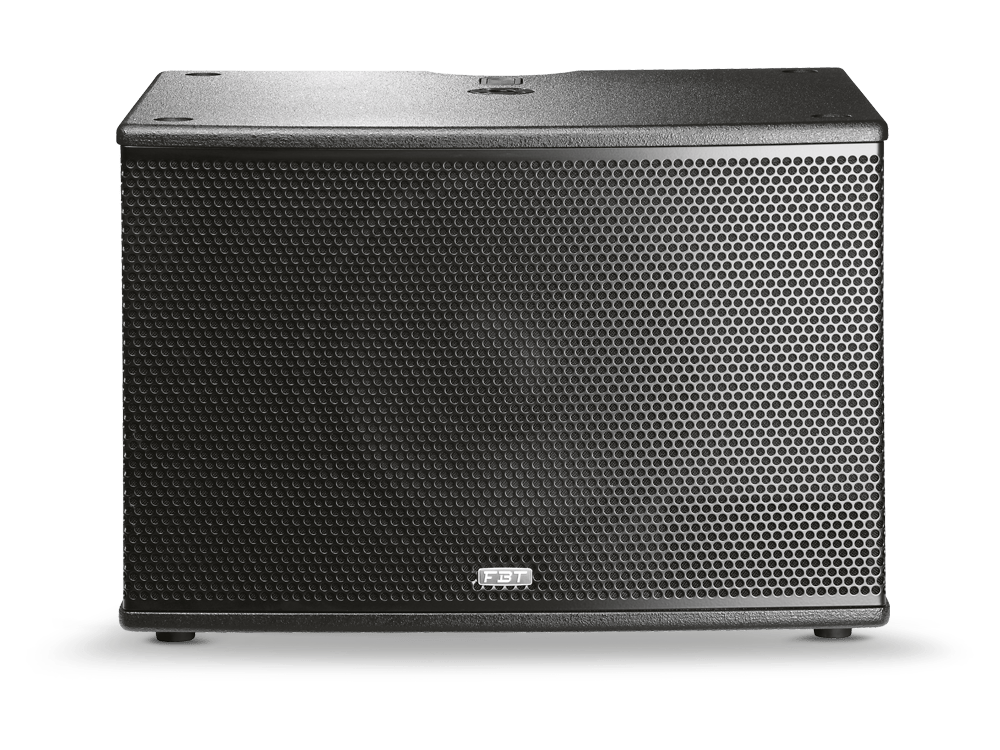

FBT VERTUS CS 1000 Compact Line Array Integrated System

FBT builds the VERTUS CS 1000 as compact line array integrated system with a 600/400 W RMS built-in amplifier. Frequency response is 40Hz - 20KHz -6dB with a maximum SPL of 125/129 dB and 110 deg x 30 deg H x V dispersion. The low frequency driver is a 12 - 2.5 coil inch and the high frequency driver a 6 x 3 - 0.8 coil neodymium inch crossing over at 180 KHz.

Inputs are on XLR with loop with a 22 Kohm input impedance. Mains draw is 640 VA. The supplied power cord is 5/16.4 mm/inch. It measures satellite 105x530x120 / 4.13x20.86x4.72 Subwoofer 565x373x450 / 22.24x14.68x17.71 mm/inch and weighs Satellite 3.5/7.71 Subwoofer 22.4/49.38 kg/lb.
