Name: JBL Professional JBL CBT 50LA-1 Constant Beamwidth Technology line array column
Brand: JBL Professional
SKU: CBT 50LA-1
Price: 585.00 USD
Availability: InStock

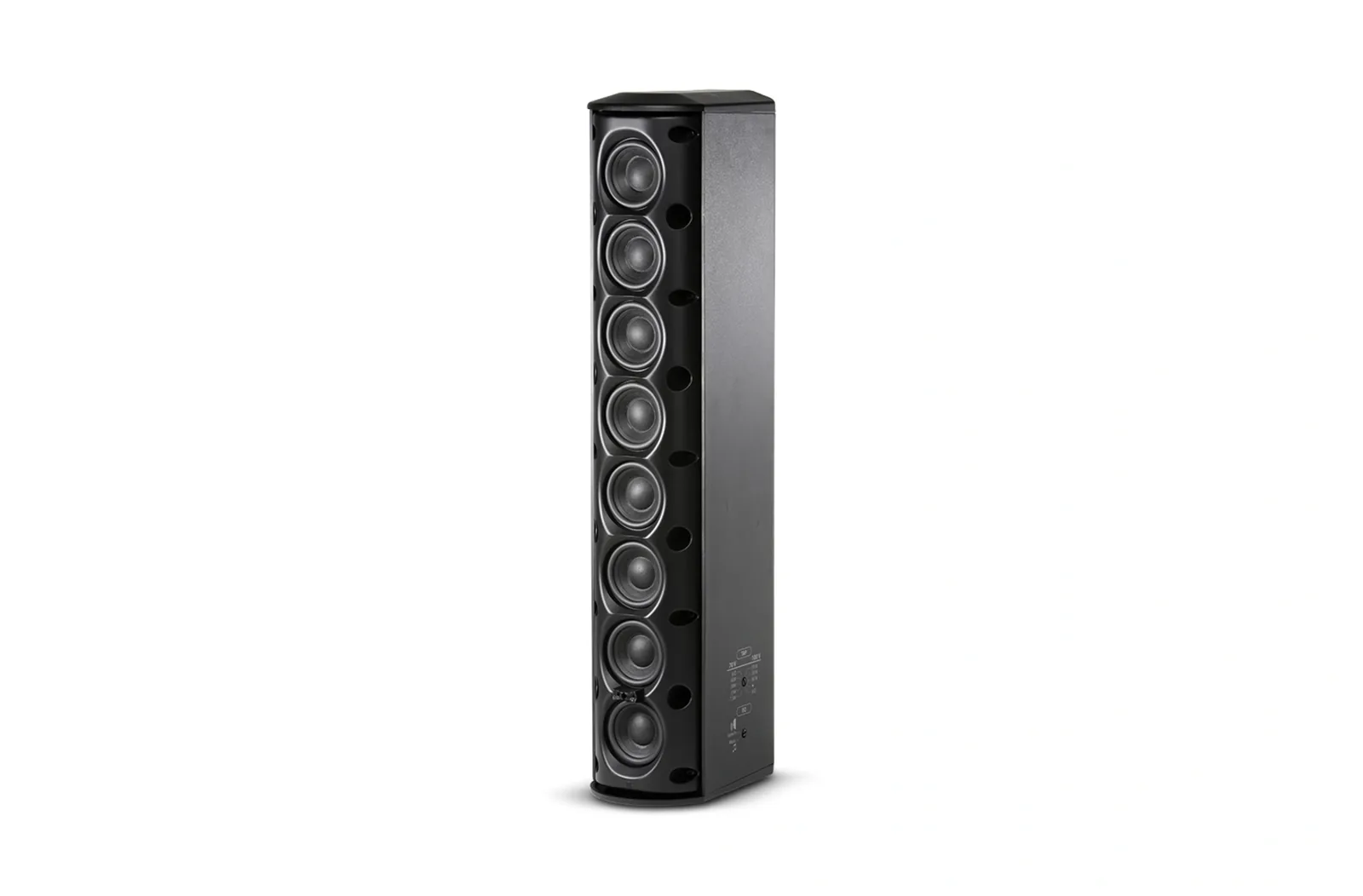

The CBT 50LA-1 is the short column in the CBT line: eight 50 mm full-range drivers in a fibreglass-reinforced ABS cabinet, 20.8 inches tall and 9 lb. Constant Beamwidth Technology is analogue delay beam-forming plus amplitude tapering across the driver column. The point is consistent vertical coverage without the narrow beaming and out-of-coverage lobing that plain passive columns produce, which is why these turn up in reverberant rooms where intelligibility is the whole job.

Vertical coverage is 20 degrees over 1.5 to 16 kHz; horizontal is 150 degrees. It runs at 8 ohms or off a 70/100 V line through a switch with 60 W, 30 W and 15 W taps. A swivel and tilt wall bracket is included, with ten M6 inserts on the back panel, and the cabinet is IP-55 rated when fitted with the optional MTC-PC2 panel cover.

Type	Constant Beamwidth Technology line array column
Drivers	Eight 50 mm (2-inch) full-range
Frequency range (-10 dB)	80 Hz - 20 kHz
Coverage angle	Vertical 20 degrees (1.5 - 16 kHz); horizontal 150 degrees
Sensitivity	93 dB speech mode; 89 dB music mode
Impedance	8 ohms
Power rating	150 W (600 W peak) 2 hrs; 100 W (400 W peak) 100 hrs
Maximum SPL (1 m)	Speech mode 115 dB continuous average (121 dB peak); music mode 111 dB (117 dB peak)
Transformer taps	60 W, 30 W, 15 W (7.5 W at 70 V only) and 8 ohm through, via switch
Enclosure	Fibreglass-reinforced ABS with painted aluminium grille
Outdoor rating	IP-55 per IEC529 with optional MTC-PC2 panel cover
Mounting	Included swivel/tilt wall bracket; ten M6 inserts on back panel
Dimensions (H x W x D)	528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in)
Net weight	4.1 kg (9.0 lb)
